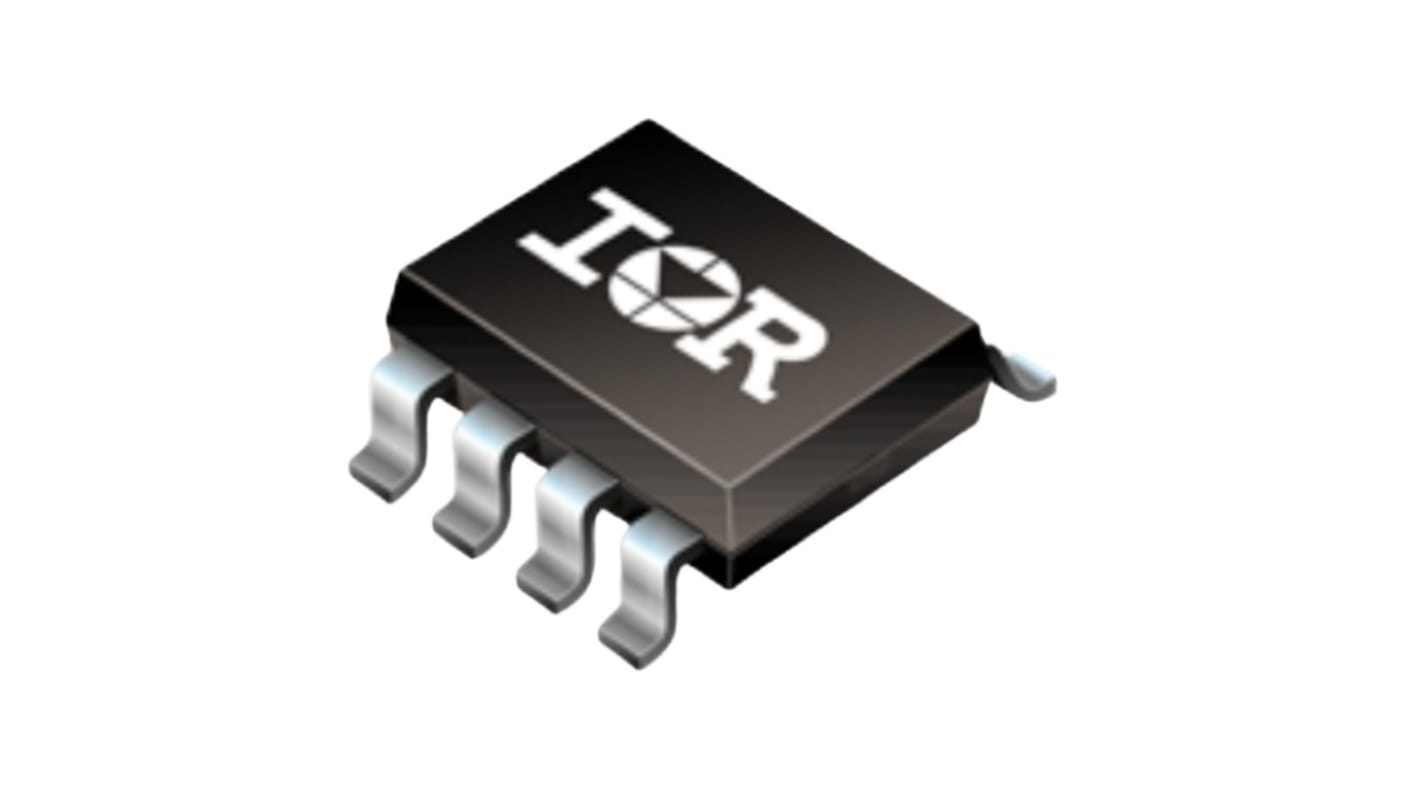

Infineon IR2127SPBF 1, 500 mA, 20V 8-Pin, SOIC
- RS Stock No.:
- 262-6702
- Mfr. Part No.:
- IR2127SPBF
- Brand:
- Infineon
3725 In stock - FREE next working day delivery available
Price Each (In a Pack of 5)
£2.11
(exc. VAT)
£2.53
(inc. VAT)
Units | Per unit | Per Pack* |
|---|---|---|
| 5 - 45 | £2.11 | £10.55 |
| 50 - 120 | £1.878 | £9.39 |
| 125 - 245 | £1.772 | £8.86 |
| 250 - 495 | £1.646 | £8.23 |
| 500 + | £0.902 | £4.51 |
*price indicative
- RS Stock No.:
- 262-6702
- Mfr. Part No.:
- IR2127SPBF
- Brand:
- Infineon
Technical Reference
Legislation and Compliance
Product Details
The Infineon Current sensing single channel is a high voltage, high speed power MOSFET and IGBT driver. The protection circuity detects over current in the driven power transistor and terminates the gate drive voltage. The output driver features a high pulse current buffer stage designed for minimum cross conduction.
Floating channel designed for bootstrap operation
Under voltage lockout
Tolerant to negative transient voltage
Under voltage lockout
Tolerant to negative transient voltage
Specifications
Attribute | Value |
|---|---|
| Logic Type | CMOS, LSTTL |
| Output Current | 500 mA |
| Supply Voltage | 20V |
| Pin Count | 8 |
| Fall Time | 65ns |
| Package Type | SOIC |
| Number of Drivers | 1 |
