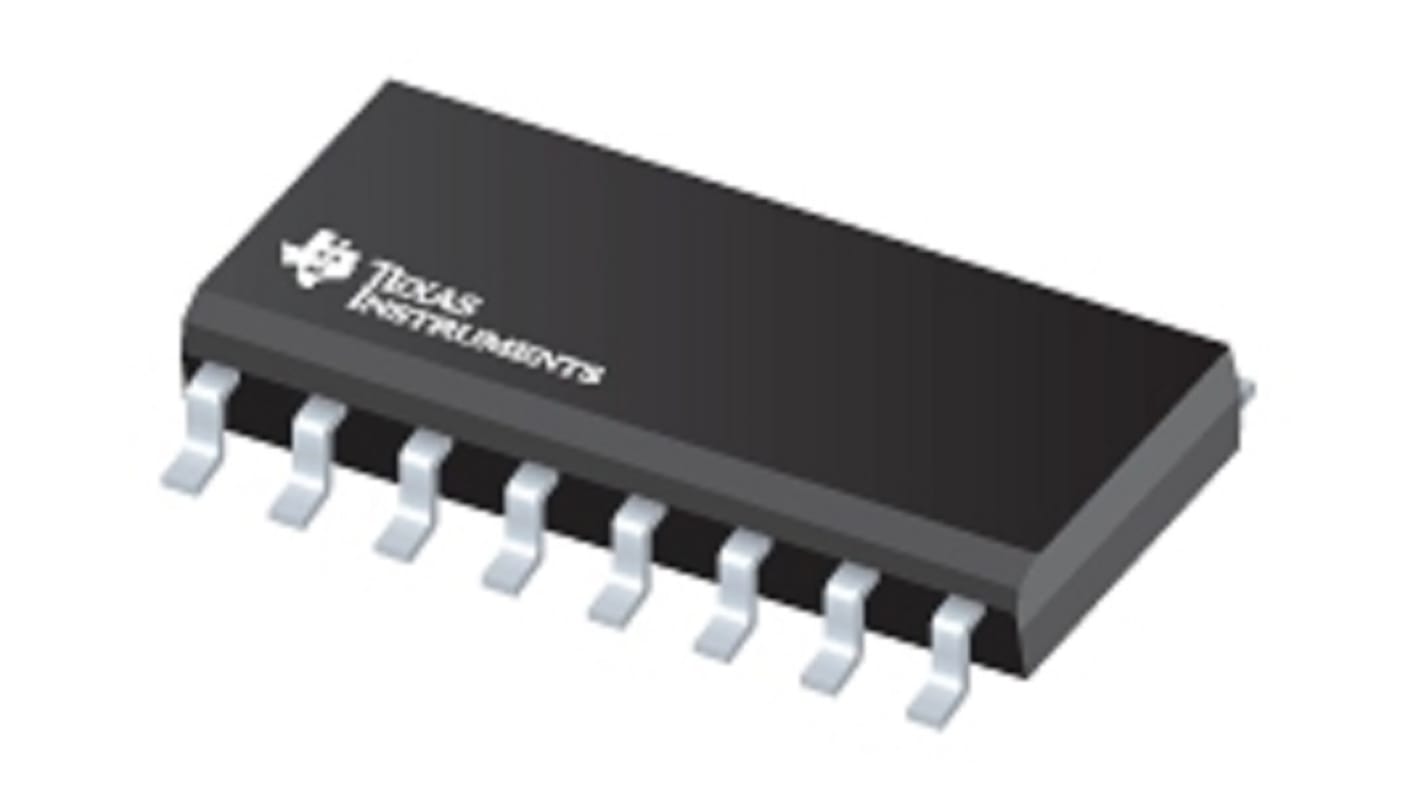

Texas Instruments, Half Bridge 2, 10 A 16-Pin 5 V, SOIC
- RS Stock No.:
- 252-8613
- Mfr. Part No.:
- UCC21710QDWQ1
- Brand:
- Texas Instruments
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
- RS Stock No.:
- 252-8613
- Mfr. Part No.:
- UCC21710QDWQ1
- Brand:
- Texas Instruments
Specifications
Legislation and Compliance
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Texas Instruments | |
| Product Type | Gate Driver Module | |
| Output Current | 10A | |
| Pin Count | 16 | |
| Fall Time | 27ns | |
| Package Type | SOIC | |
| Driver Type | Half Bridge | |
| Rise Time | 33ns | |
| Minimum Supply Voltage | 5V | |
| Number of Drivers | 2 | |
| Maximum Supply Voltage | 5V | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 125°C | |
| Length | 10.3mm | |
| Height | 2.65mm | |
| Series | UCC2171 | |
| Standards/Approvals | No | |
| Mount Type | Surface | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand Texas Instruments | ||
Product Type Gate Driver Module | ||
Output Current 10A | ||
Pin Count 16 | ||
Fall Time 27ns | ||
Package Type SOIC | ||
Driver Type Half Bridge | ||
Rise Time 33ns | ||
Minimum Supply Voltage 5V | ||
Number of Drivers 2 | ||
Maximum Supply Voltage 5V | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 125°C | ||
Length 10.3mm | ||
Height 2.65mm | ||
Series UCC2171 | ||
Standards/Approvals No | ||
Mount Type Surface | ||
Automotive Standard No | ||
