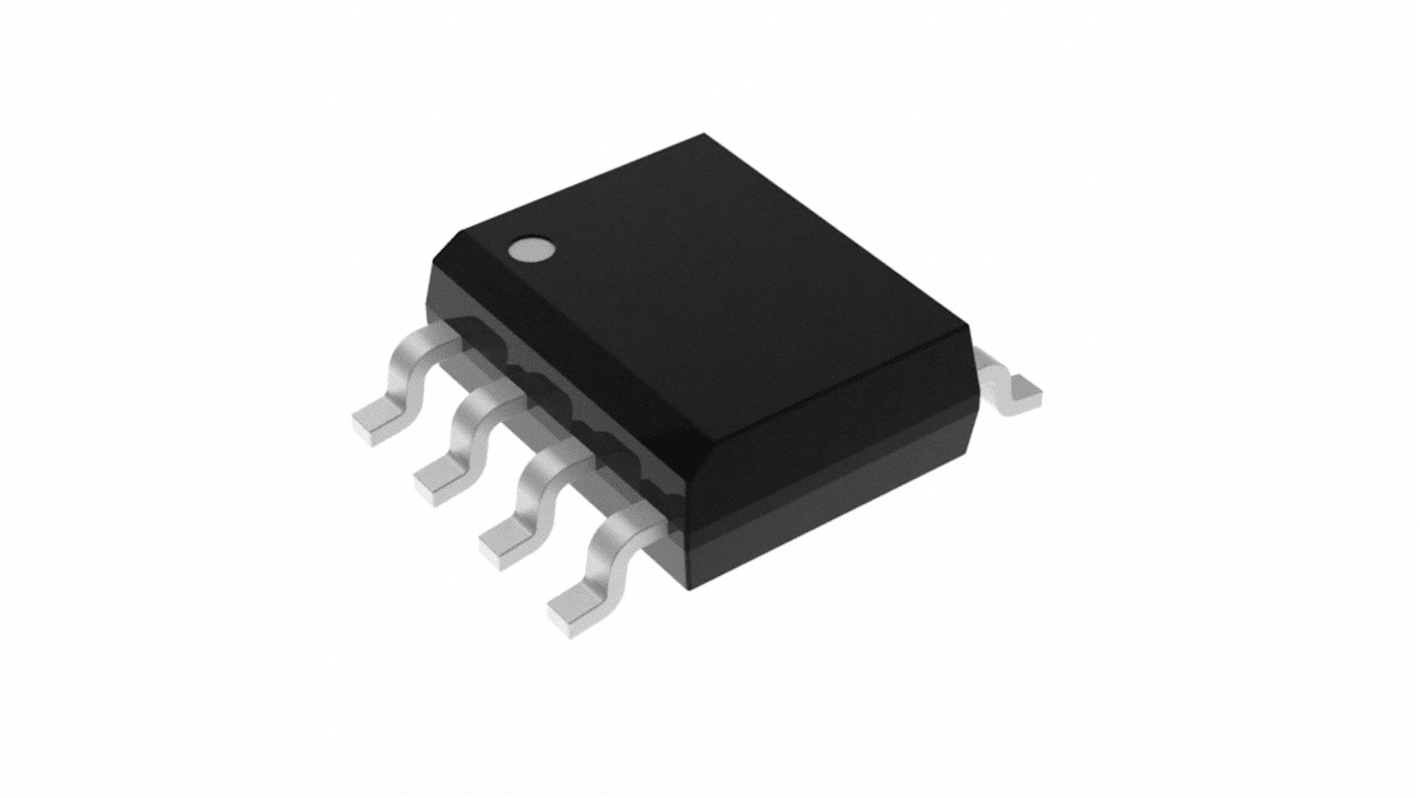

DiodesZetex DGD2003S8-13 2, 290.69 A, 10 → 20V 8-Pin, SOIC
- RS Stock No.:
- 246-6747
- Mfr. Part No.:
- DGD2003S8-13
- Brand:
- DiodesZetex
2430 In stock - FREE next working day delivery available
Price Each (On a Reel of 2500)
£0.346
(exc. VAT)
£0.415
(inc. VAT)
Units | Per unit | Per Reel* |
|---|---|---|
| 2500 + | £0.346 | £865.00 |
*price indicative
- RS Stock No.:
- 246-6747
- Mfr. Part No.:
- DGD2003S8-13
- Brand:
- DiodesZetex
Technical Reference
Legislation and Compliance
Product Details
The DiodesZetex makes a high-voltage / high-speed gate driver capable of driving N-channel MOSFETs in a half-bridge configuration. high voltage processing techniques enable the DGD2003’s high side to switch to 200V in a bootstrap operation. The DGD2003 logic inputs are compatible with standard TTL and CMOS levels (down to 3.3V) to interface easily with controlling devices. The DGD2003 is offered in the SO-8 package and operates over an extended -40°C to +125°C temperature range
Wide low side gate driver supply voltage of 10V to 20V Floating high-side driver in bootstrap operation to 200V Drives 2 N-channel MOSFETs in a half-bridge configuration Under voltage lockout for high-side and low-side drivers Extended temperature range of -40°C to +125°C
Specifications
Attribute | Value |
|---|---|
| Logic Type | CMOS, TTL |
| Output Current | 290.69 A |
| Supply Voltage | 10 → 20V |
| Pin Count | 8 |
| Package Type | SOIC |
| Fall Time | 35ns |
| Number of Drivers | 2 |
