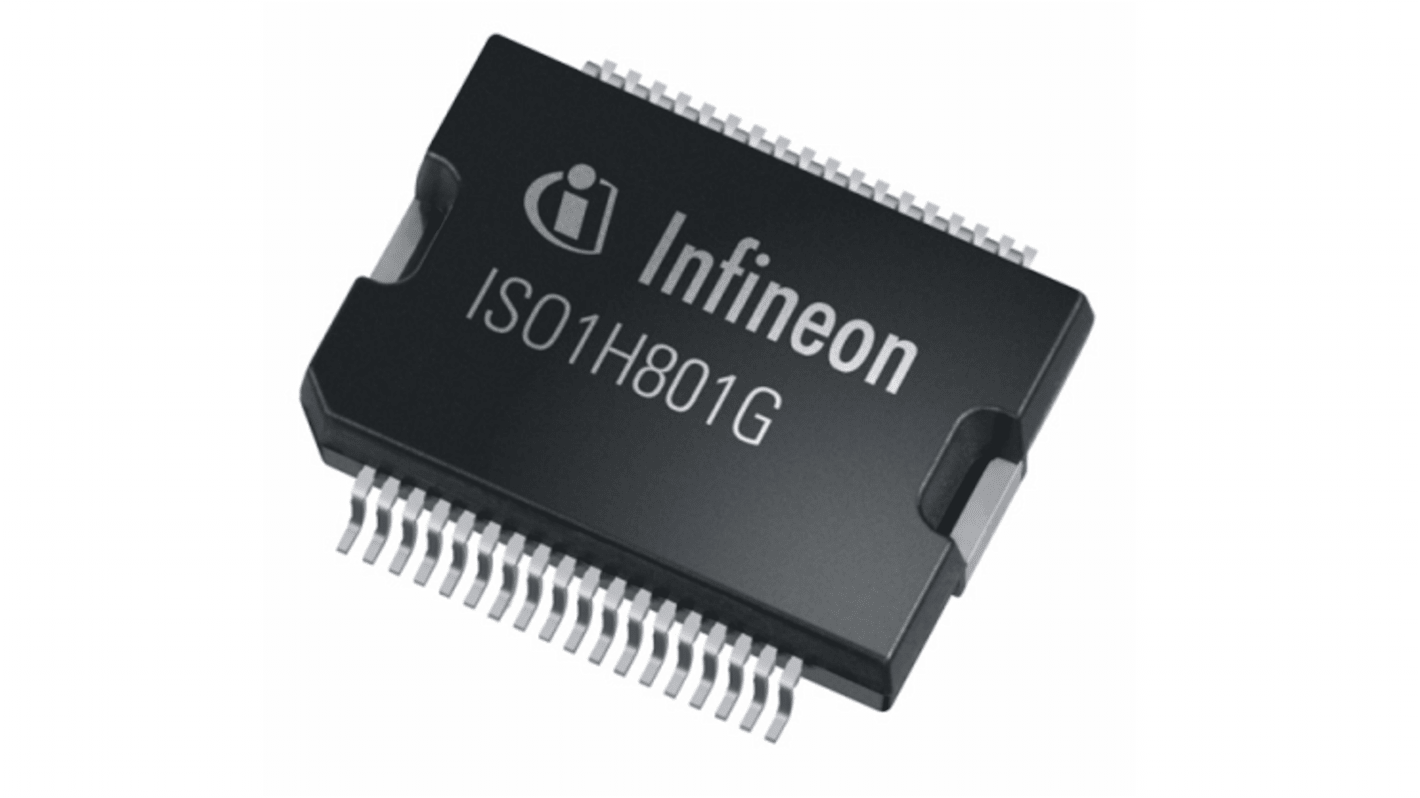

Infineon ISO1H801GAUMA1 High Side Gate Driver, 625 mA, 5V 36-Pin, PG-DSO-36

View all Gate Drivers
Bulk discount available

Subtotal (1 unit)*

£6.10

(exc. VAT)

£7.32

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 422 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 - 4£6.10
5 - 9£5.80
10 - 24£5.22
25 - 49£4.70
50 +£4.46

*price indicative

Packaging Options:
RS Stock No.:
242-0996
Mfr. Part No.:
ISO1H801GAUMA1
Brand:
Infineon
Find similar products by selecting one or more attributes.
Select all

Brand

Infineon

Logic Type

CMOS

Output Current

625 mA

Supply Voltage

5V

Pin Count

36

Package Type

PG-DSO-36

Fall Time

89µs

Driver Type

High Side

The Infineon galvanically isolated 8 bit data interface in PG-DSO-36 package gate driver.It provides 8 fully protected high-side power switches that are able to handle currents up to 625 mA. An 8 bit parallel μC compatible interface allows to connect the IC directly to a μC system. The input interface supports also a direct control mode and is designed to operate with 5V CMOS compatible levels.

Isolated switch for industrial applications (PLC)
Interface 5V CMOS operation compatible
Parallel interface
Direct control mode
High common mode transient immunity
Overload,Short circuit and ESD protection
Reverse Output Voltage protection
