Infineon 1ED3125MU12FXUMA1, Isolated Gate Driver 2, 10 A 8-Pin 17V, DSO

RS Stock No.:: 228-6507
Mfr. Part No.:: 1ED3125MU12FXUMA1
Brand:: Infineon

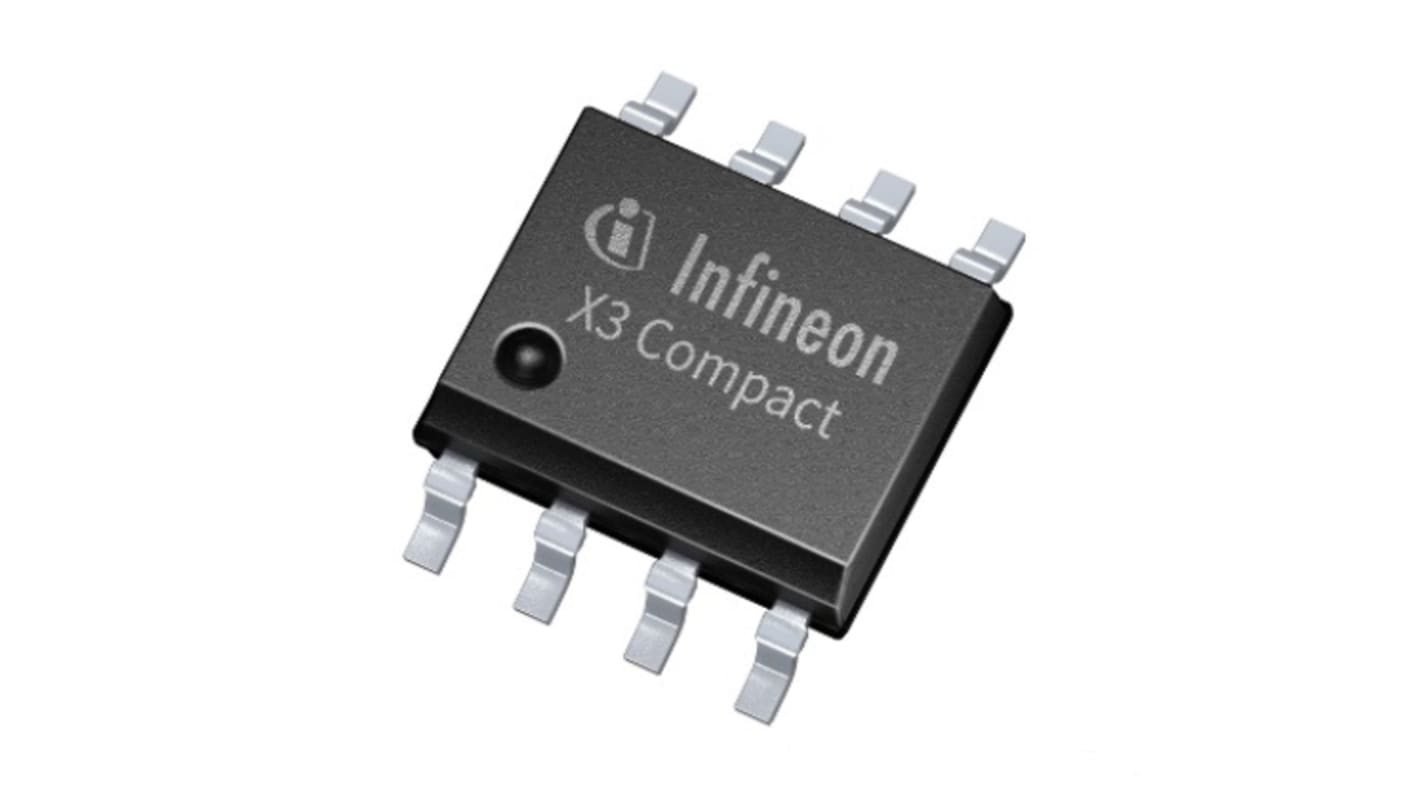

Infineon 1ED3125MU12FXUMA1, Isolated Gate Driver 2, 10 A 8-Pin 17V, DSO

Bulk discount available

View bulk pricing options

Subtotal (1 pack of 5 units)*

£8.14

(exc. VAT)

£9.77

(inc. VAT)

Stock information currently inaccessible - Please check back later

Units	Per unit	Per Pack*
5 - 20	£1.628	£8.14
25 - 45	£1.384	£6.92
50 - 120	£1.288	£6.44
125 - 245	£1.206	£6.03
250 +	£1.106	£5.53

*price indicative

RS Stock No.:: 228-6507
Mfr. Part No.:: 1ED3125MU12FXUMA1
Brand:: Infineon

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Infineon
	Product Type	Gate Driver
	Output Current	10A
	Pin Count	8
	Package Type	DSO
	Fall Time	30ns
	Number of Outputs	2
	Driver Type	Isolated Gate Driver
	Rise Time	30ns
	Minimum Supply Voltage	3.1V
	Maximum Supply Voltage	17V
	Number of Drivers	2
	Minimum Operating Temperature	-40°C
	Maximum Operating Temperature	125°C
	Series	1ED3125MU12F
	Width	3.9mm
	Standards/Approvals	No
	Length	4.9mm
	Height	1.75mm
	Mount Type	Surface
	Automotive Standard	No

	Select all
	Brand Infineon
	Product Type Gate Driver
	Output Current 10A
	Pin Count 8
	Package Type DSO
	Fall Time 30ns
	Number of Outputs 2
	Driver Type Isolated Gate Driver
	Rise Time 30ns
	Minimum Supply Voltage 3.1V
	Maximum Supply Voltage 17V
	Number of Drivers 2
	Minimum Operating Temperature -40°C
	Maximum Operating Temperature 125°C
	Series 1ED3125MU12F
	Width 3.9mm
	Standards/Approvals No
	Length 4.9mm
	Height 1.75mm
	Mount Type Surface
	Automotive Standard No

Datasheet-1ED3125MU12FXUMA1

Infineon 1ED3125MU12F Series Gate Driver, 10A Output Current, 3.1V Minimum Supply Voltage - 1ED3125MU12FXUMA1

This gate driver provides isolated drive capability for two outputs, enabling controlled switching of power transistors across a defined supply range. It operates within a low-voltage supply window and is intended for surface-mounted applications where compact, high-speed drive and isolation are required. The component is suitable for environments demanding extended temperature operation and dual-driver functionality in a small package.

Features and Benefits:

• 2 drivers deliver two independent output channels
• 10A output supports high-current MOSFET gating
• 3.1V to 17V supply range enables flexible low-voltage use
• 30ns rise and fall times permit Rapid switching transitions
• 8-pin DSO package simplifies surface-mounted PCB layout
• -40°C to 125°C rating allows extended temperature operation

Applications

• Used for driving isolated power MOSFETs in converters
• Suitable for dual-channel inverter gate control
• Ideal for Compact power modules requiring isolation
• Can be used in high-frequency switching assemblies
• Used with surface-mount designs needing a small footprint

What pin count and package type does it use?

It is provided in an 8-pin DSO package suitable for surface mounting.

What environmental temperatures can it tolerate during operation?

It can operate across a temperature span from -40°C to 125°C.

How does the driver accommodate different supply systems?

It accepts a supply voltage between 3.1V and 17V to match varied low-voltage rails.

What physical profile should be planned for on a PCB?

The device has a Compact rectangular profile with a low component height for tight vertical clearance.

How many independent outputs are available for gate control?

There are two isolated outputs driven by two separate driver channels.
