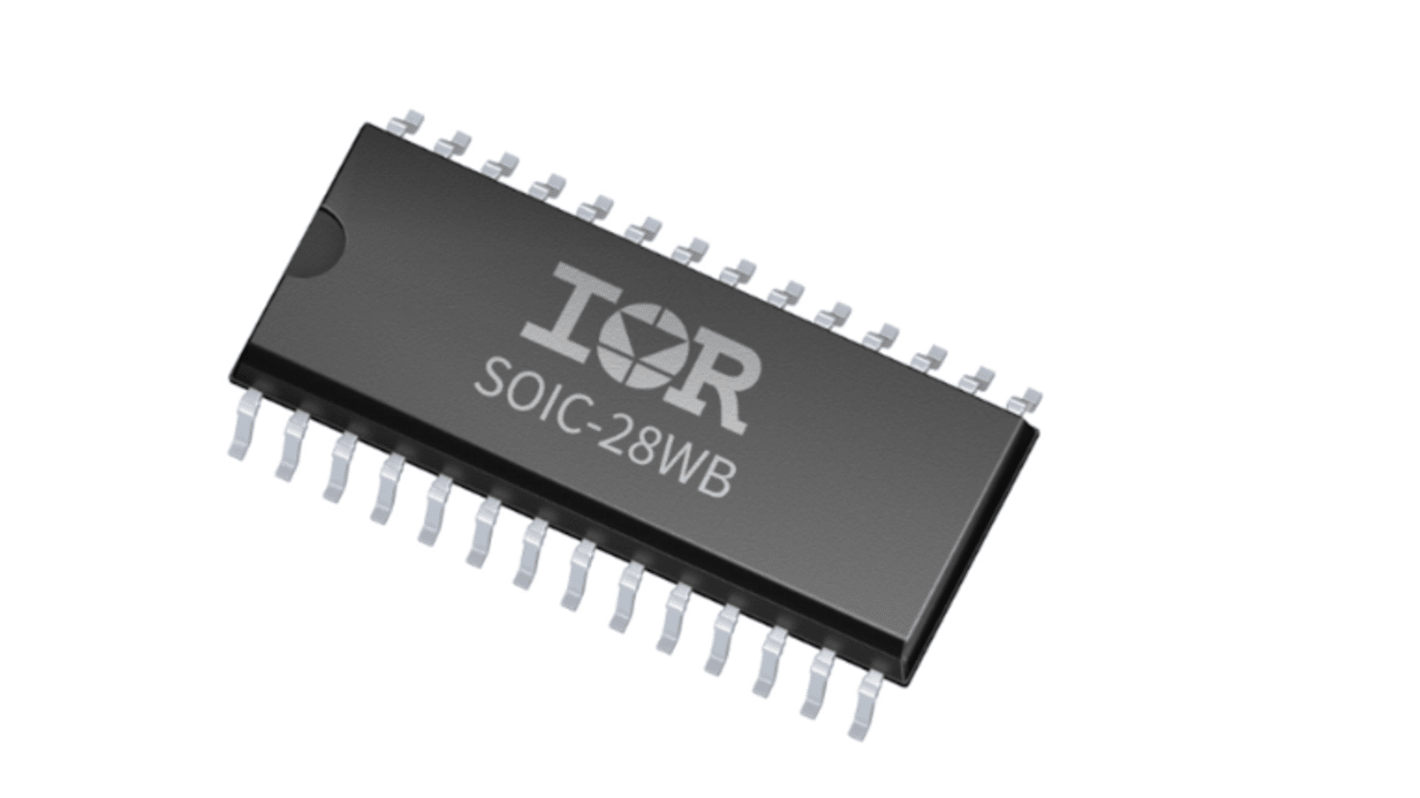

Infineon IR2136STRPBF MOSFET Gate Driver, 350 mA, 20V 28-Pin, SOIC

View all Gate Drivers

Subtotal (1 reel of 1000 units)*

£1,370.00

(exc. VAT)

£1,640.00

(inc. VAT)

Add to Basket
Select or type quantity
Temporarily out of stock
  • Shipping from 18 March 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
Per Reel*
1000 +£1.37£1,370.00

*price indicative

RS Stock No.:
226-6154
Mfr. Part No.:
IR2136STRPBF
Brand:
Infineon
Find similar products by selecting one or more attributes.
Select all

Brand

Infineon

Output Current

350 mA

Supply Voltage

20V

Pin Count

28

Package Type

SOIC

Fall Time

75ns

Driver Type

MOSFET

The Infineon IR2136J are high voltage, high speed power MOSFET and IGBT driver with three independent high and low side referenced output channel for 3-phase applications. Proprietary HVIC technology enables ruggedized monolithic construction. Logic inputs are compatible with CMOS or LSTTL outputs, down to 3.3 V logic.

Floating channel designed for bootstrap operation
Fully operational to +600 V
Tolerant to negative transient voltage, dV/dt immune
Over-current shutdown turns off all six driver
Independent 3 half-bridge driver
Matched propagation delay for all channel
Cross-conduction prevention logic
