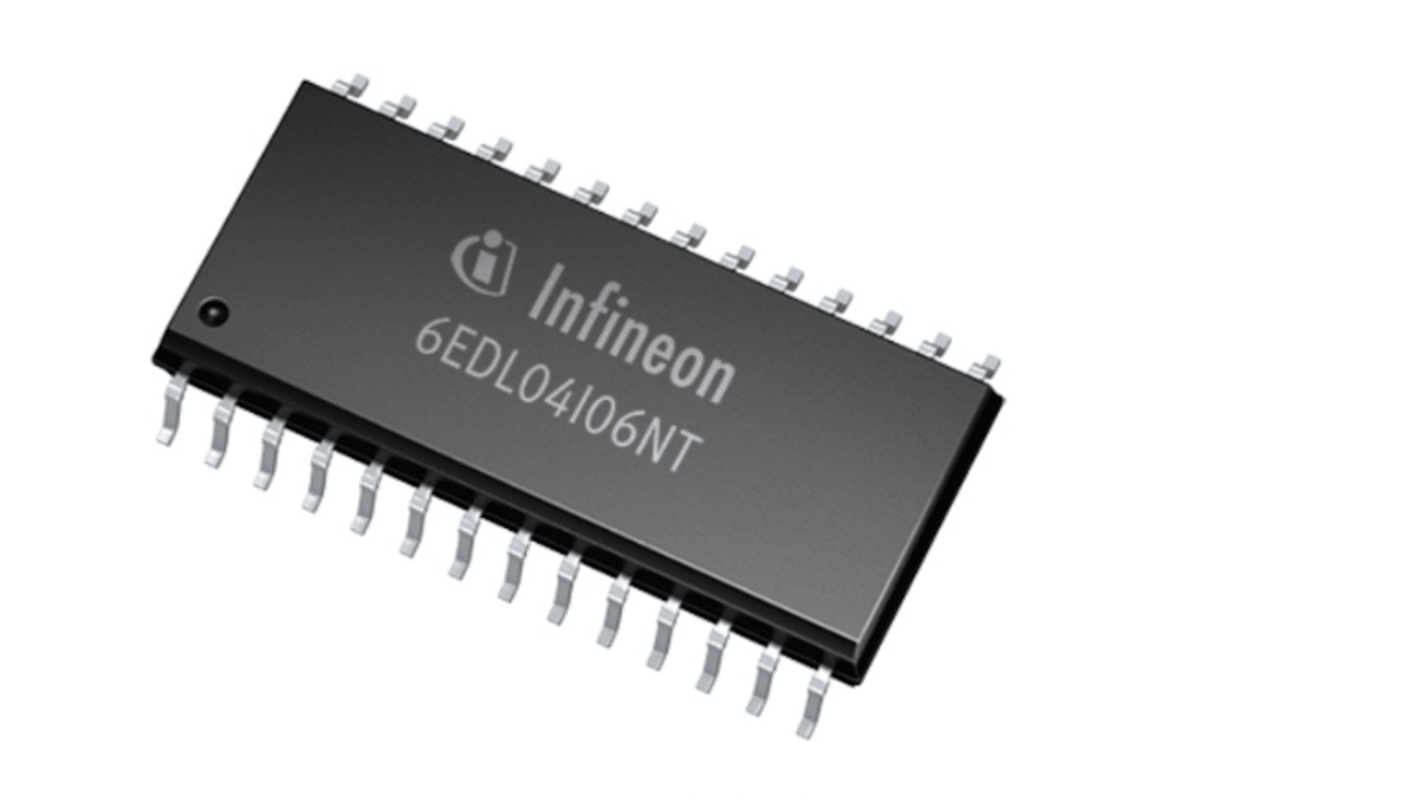

Infineon 6EDL04I06NTXUMA1 MOSFET Gate Driver, 165 mA, 17.5V 28-Pin, PG-DSO

View all Gate Drivers
Bulk discount available

Subtotal (1 pack of 5 units)*

£11.05

(exc. VAT)

£13.25

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 475 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
Per Pack*
5 - 20£2.21£11.05
25 - 45£1.966£9.83
50 - 120£1.834£9.17
125 - 245£1.724£8.62
250 +£1.592£7.96

*price indicative

Packaging Options:
RS Stock No.:
226-6042
Mfr. Part No.:
6EDL04I06NTXUMA1
Brand:
Infineon
Find similar products by selecting one or more attributes.
Select all

Brand

Infineon

Output Current

165 mA

Supply Voltage

17.5V

Pin Count

28

Fall Time

45ns

Package Type

PG-DSO

Driver Type

MOSFET

The Infineon 6ED family is a full bridge driver to control power device like MOS-transistors or IGBTs in 3-phase system with a maximum blocking voltage of +600 V.It based on the used SOI-technology there is an excellent ruggedness on transient voltages. No parasitic Thyristor structure are present in the device. Hence, no parasitic latch-up may occur at all temperature and voltage conditions. It has signal interlocking of every phase to prevent cross conduction.

Maximum blocking voltage +600 V
Output source/sink current +0.165 A/-0.375 A
Integrated ultra-fast, low RDS(ON) bootstrap diode
Insensitivity of the bridge output to negative
