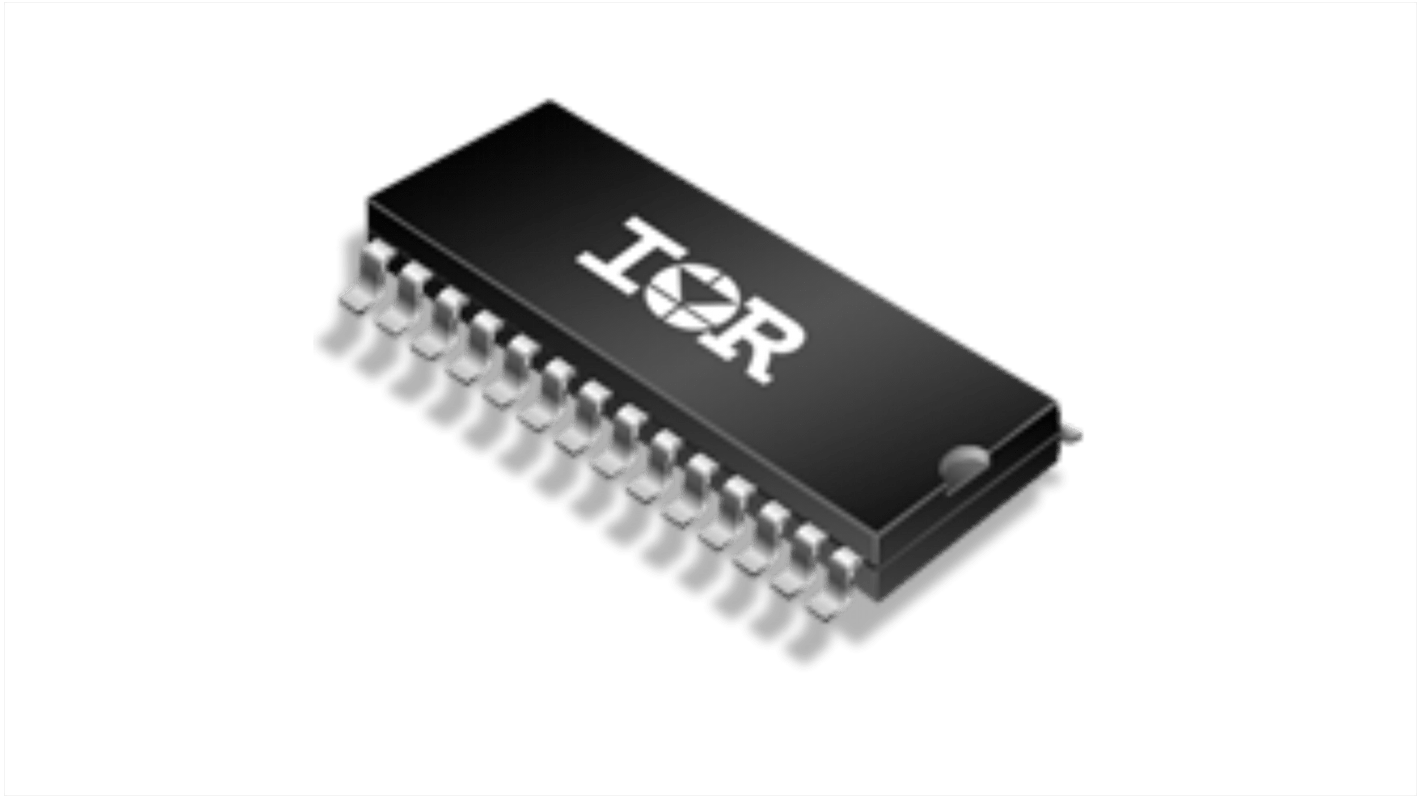

Infineon AUIRS2336STR MOSFET Gate Driver, 200 mA, 10 → 20V 28-Pin, SOIC
- RS Stock No.:
- 223-8473
- Mfr. Part No.:
- AUIRS2336STR
- Brand:
- Infineon
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 223-8473
- Mfr. Part No.:
- AUIRS2336STR
- Brand:
- Infineon
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Infineon | |
| Logic Type | CMOS | |
| Output Current | 200 mA | |
| Supply Voltage | 10 → 20V | |
| Pin Count | 28 | |
| Package Type | SOIC | |
| Fall Time | 50ns | |
| Driver Type | MOSFET | |
Select all | ||
|---|---|---|
Brand Infineon | ||
Logic Type CMOS | ||
Output Current 200 mA | ||
Supply Voltage 10 → 20V | ||
Pin Count 28 | ||
Package Type SOIC | ||
Fall Time 50ns | ||
Driver Type MOSFET | ||
The Infineon AUIRS2336S series are high voltage, high speed, power MOSFET and IGBT gate drivers with three high-side and three low-side referenced output channels for 3-phase applications. This IC is designed to be used with low-cost bootstrap power supplies. Proprietary HVIC and latch immune CMOS technologies have been implemented in a rugged monolithic structure.
Drives up to six IGBT/MOSFET power devices
Over-temperature shutdown input
Adjustable fault clear timing
Designed for use with bootstrap power supplies
Matched propagation delays for all channels
Over-temperature shutdown input
Adjustable fault clear timing
Designed for use with bootstrap power supplies
Matched propagation delays for all channels
