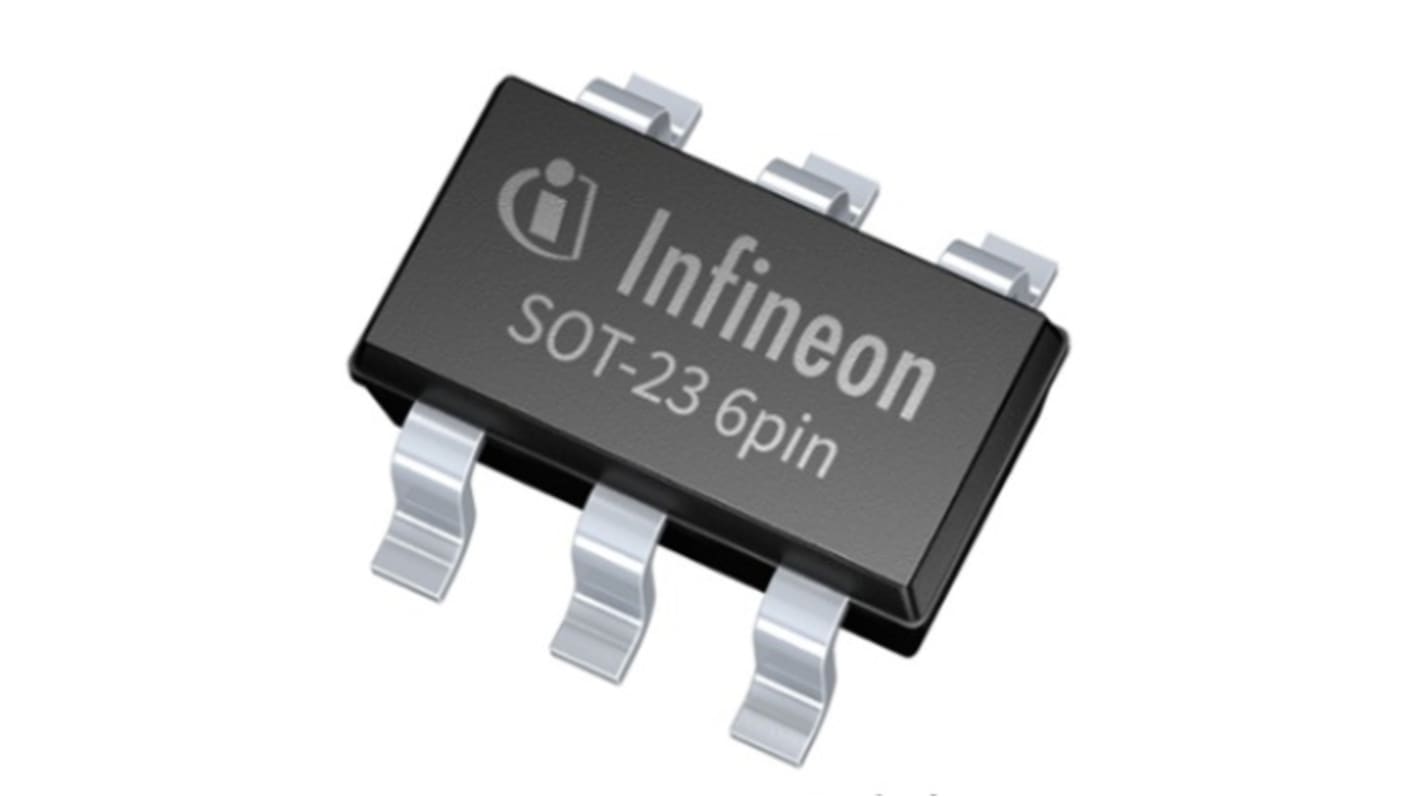

Infineon MOSFET Gate Driver 1, 8 A 6-Pin 20 V, SOT-23

View all Gate Drivers
Bulk discount available

Subtotal (1 reel of 3000 units)*

£627.00

(exc. VAT)

£753.00

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 9,000 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
Per Reel*
3000 - 3000£0.209£627.00
6000 +£0.199£597.00

*price indicative

RS Stock No.:
222-4766
Mfr. Part No.:
1EDN8511BXUSA1
Brand:
Infineon
Find similar products by selecting one or more attributes.
Select all

Brand

Infineon

Product Type

MOSFET

Output Current

8A

Pin Count

6

Package Type

SOT-23

Fall Time

4.5ns

Driver Type

MOSFET

Number of Outputs

2

Rise Time

6.5ns

Minimum Supply Voltage

4.2V

Maximum Supply Voltage

20V

Number of Drivers

1

Minimum Operating Temperature

-40°C

Maximum Operating Temperature

150°C

Length

2.9mm

Width

1.6 mm

Standards/Approvals

No

Series

1EDN8511B

Height

1.45mm

Mount Type

Surface

Automotive Standard

No

The Infineon 1-channel MOSFET gate driver ICs are the crucial link between control ICs and powerful MOSFET and GaN switching devices. Gate driver ICs enable high system level efficiencies, excellent power density and consistent system robustness.

-10V robustness of control and enable inputs provides crucial safety margin when driving pulse transformers

5A reverse output current robustness eliminates the need for Schottky switching diodes when driving MOSFETs in TO-220 and TO-247 packages

Cool driver ICs thanks to true rail-to-rail low impedance output stages

4V and 8V UVLO (Under Voltage Lock Out) options for instant MOSFET protection during start-up and under abnormal conditions
