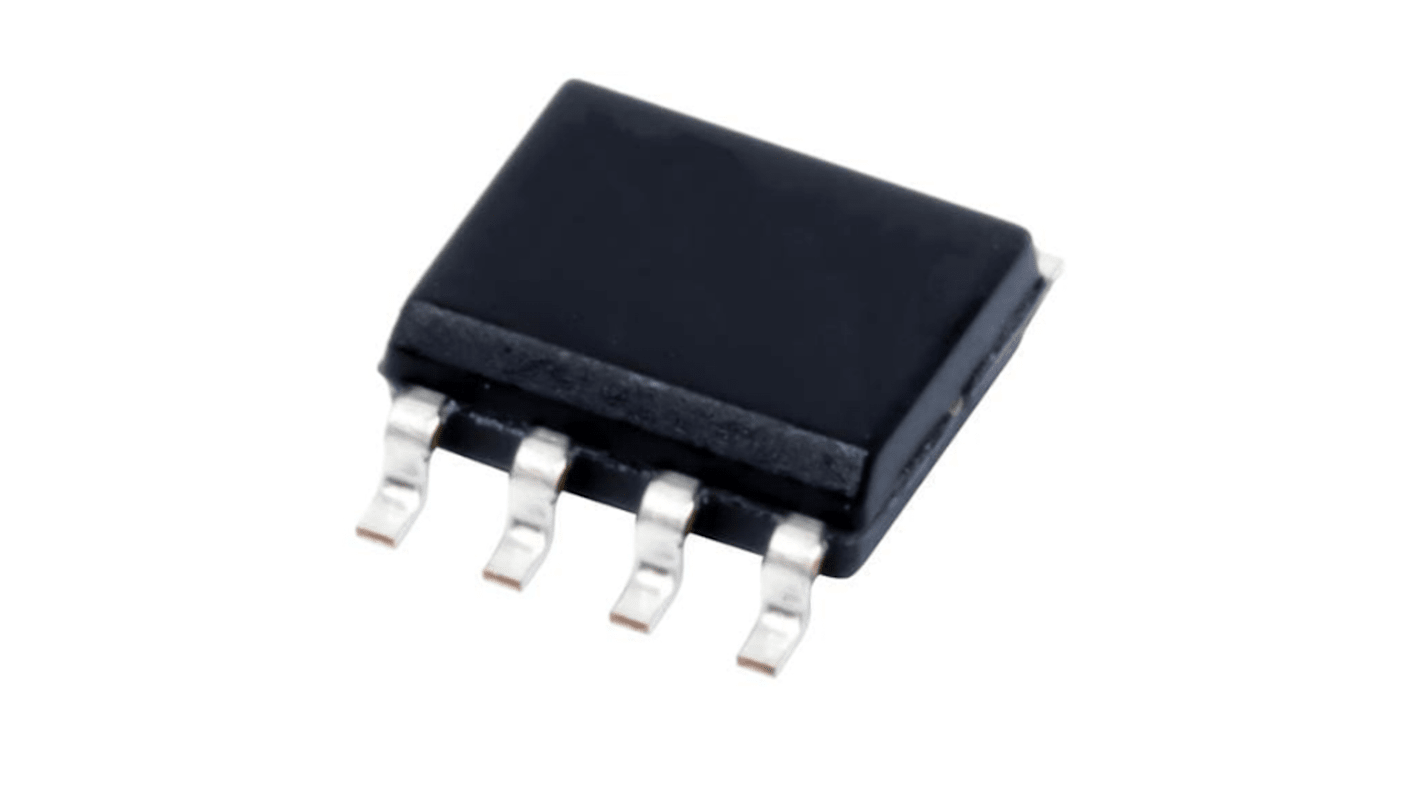

onsemi NCV57090ADWR2G, IGBT, 6.5 A, 22V 8-Pin, SOIC
- RS Stock No.:
- 221-6661
- Mfr. Part No.:
- NCV57090ADWR2G
- Brand:
- onsemi
Subtotal (1 reel of 1000 units)*
£1,110.00
(exc. VAT)
£1,330.00
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- 999,999,000 unit(s) shipping from 19 March 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Reel* |
|---|---|---|
| 1000 + | £1.11 | £1,110.00 |
*price indicative
- RS Stock No.:
- 221-6661
- Mfr. Part No.:
- NCV57090ADWR2G
- Brand:
- onsemi
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | onsemi | |
| Output Current | 6.5 A | |
| Supply Voltage | 22V | |
| Pin Count | 8 | |
| Fall Time | 13ns | |
| Package Type | SOIC | |
| Driver Type | IGBT | |
Select all | ||
|---|---|---|
Brand onsemi | ||
Output Current 6.5 A | ||
Supply Voltage 22V | ||
Pin Count 8 | ||
Fall Time 13ns | ||
Package Type SOIC | ||
Driver Type IGBT | ||
The ON Semiconductor NCD57090 are high−current single channel IGBT/MOSFET gate driver with 5 kVrms internal galvanic isolation, designed for high system efficiency and reliability in high power applications. The device accept complementary input and depending on the pin configuration, offer options such as active miller clamp, negative power supply and separate high and low driver output for system design convenience.
High transient immunity
High electromagnetic immunity
Short propagation delays with accurate matching
High electromagnetic immunity
Short propagation delays with accurate matching
