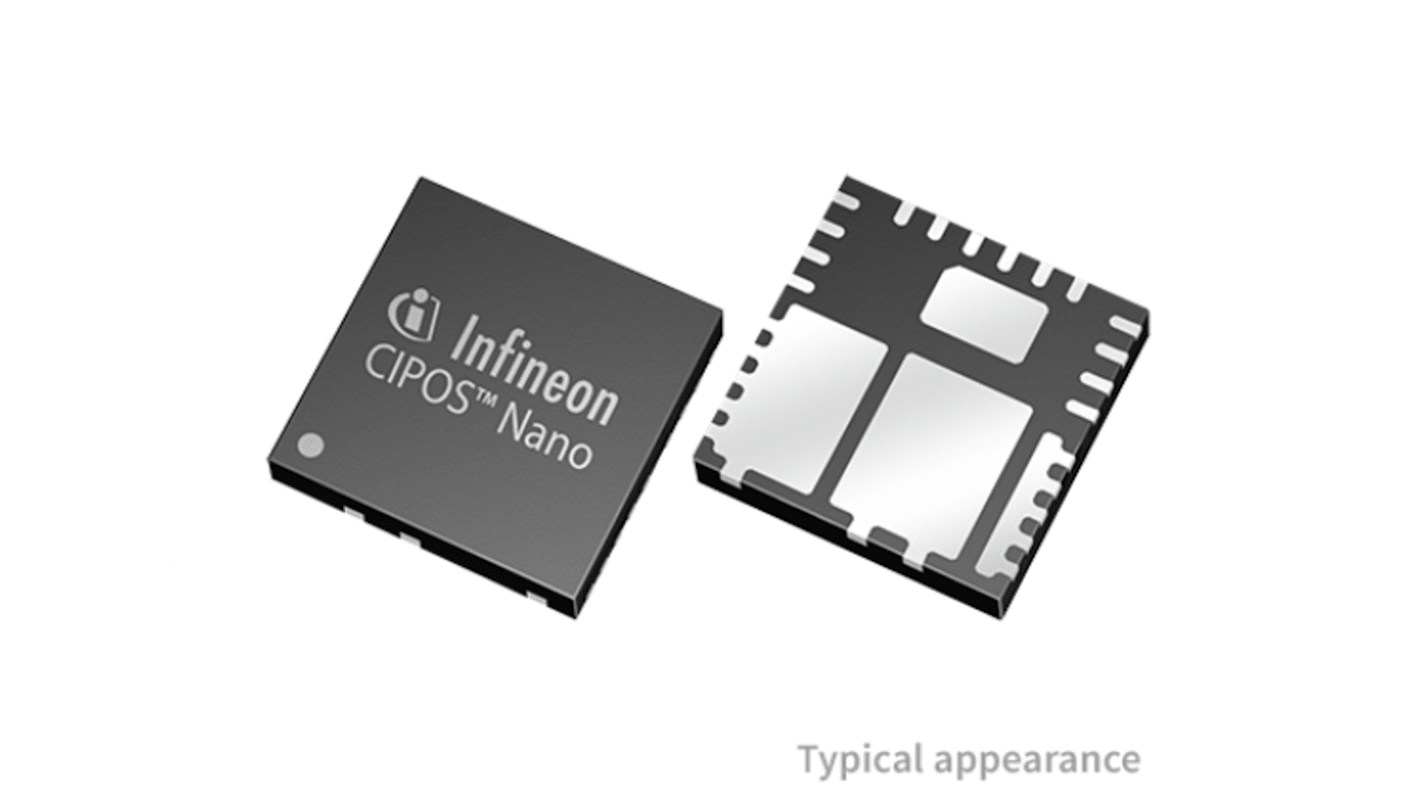

Infineon IRSM005-301MH 1 27-Pin, PQFN

View all Gate Drivers
Bulk discount available

Subtotal (1 tray of 260 units)*

£361.40

(exc. VAT)

£434.20

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 2,080 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
Per Tray*
260 - 260£1.39£361.40
520 +£1.321£343.46

*price indicative

RS Stock No.:
217-7198
Mfr. Part No.:
IRSM005-301MH
Brand:
Infineon
Find similar products by selecting one or more attributes.
Select all

Brand

Infineon

Pin Count

27

Package Type

PQFN

Topology

Half Bridge

Number of Drivers

1

Mounting Type

Surface Mount

The Infineon IRSM005-301MH is a general purpose half-bridge with integrated gate driver in an attractive 7x8mm PQFN package. It is a general purpose building block suitable for a variety of low voltage applications where power density is of critical importance. Typical examples would be advanced motor drives, dc-to-ac and dcto-dc converters.

Package with low thermal resistance and minimal parasitic
Low on-resistance HEXFETs: 16 mΩ typ.
Undervoltage lockout on Vcc and Vbs
Independent gate drive in phase with logic input
Gate drive supply range from 10V to 20V
Propagation delay matched to defined spec
