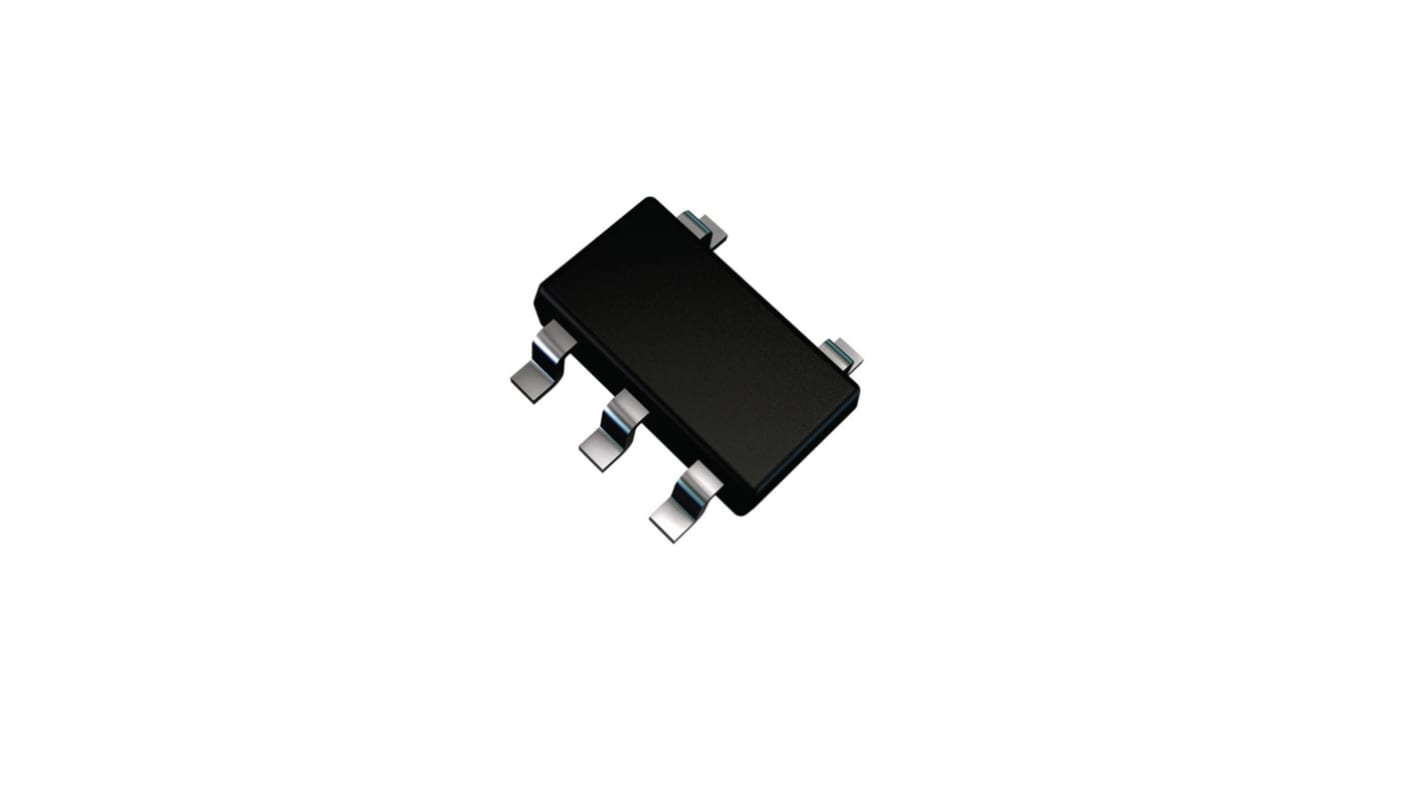

DiodesZetex DGD0211CWT-7 MOSFET Gate Driver 1, 1.9 A 5-Pin 18 V, TSOT
- RS Stock No.:
- 213-9142
- Mfr. Part No.:
- DGD0211CWT-7
- Brand:
- DiodesZetex
Bulk discount available
View bulk pricing optionsSubtotal (1 pack of 25 units)*
£10.875
(exc. VAT)
£13.05
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- Plus 850 unit(s) shipping from 01 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 25 - 25 | £0.435 | £10.88 |
| 50 - 75 | £0.426 | £10.65 |
| 100 - 225 | £0.38 | £9.50 |
| 250 - 975 | £0.372 | £9.30 |
| 1000 + | £0.304 | £7.60 |
*price indicative
- RS Stock No.:
- 213-9142
- Mfr. Part No.:
- DGD0211CWT-7
- Brand:
- DiodesZetex
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | DiodesZetex | |
| Product Type | MOSFET | |
| Output Current | 1.9A | |
| Pin Count | 5 | |
| Fall Time | 15ns | |
| Package Type | TSOT | |
| Driver Type | MOSFET | |
| Rise Time | 15ns | |
| Minimum Supply Voltage | 4.5V | |
| Maximum Supply Voltage | 18V | |
| Number of Drivers | 1 | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 125°C | |
| Height | 1.1mm | |
| Length | 2.9mm | |
| Series | DGD0211C | |
| Standards/Approvals | No | |
| Mount Type | Surface | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand DiodesZetex | ||
Product Type MOSFET | ||
Output Current 1.9A | ||
Pin Count 5 | ||
Fall Time 15ns | ||
Package Type TSOT | ||
Driver Type MOSFET | ||
Rise Time 15ns | ||
Minimum Supply Voltage 4.5V | ||
Maximum Supply Voltage 18V | ||
Number of Drivers 1 | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 125°C | ||
Height 1.1mm | ||
Length 2.9mm | ||
Series DGD0211C | ||
Standards/Approvals No | ||
Mount Type Surface | ||
Automotive Standard No | ||
The DiodesZetex DGD0211C series is single high speed / low side MOSFET and IGBT driver. It is compatible with standard TTL and CMOS levels to interface easily with MCUs.
Efficient low cost solution for driving MOSFETs and IGBTs
Non-inverting and inverting input configuration
