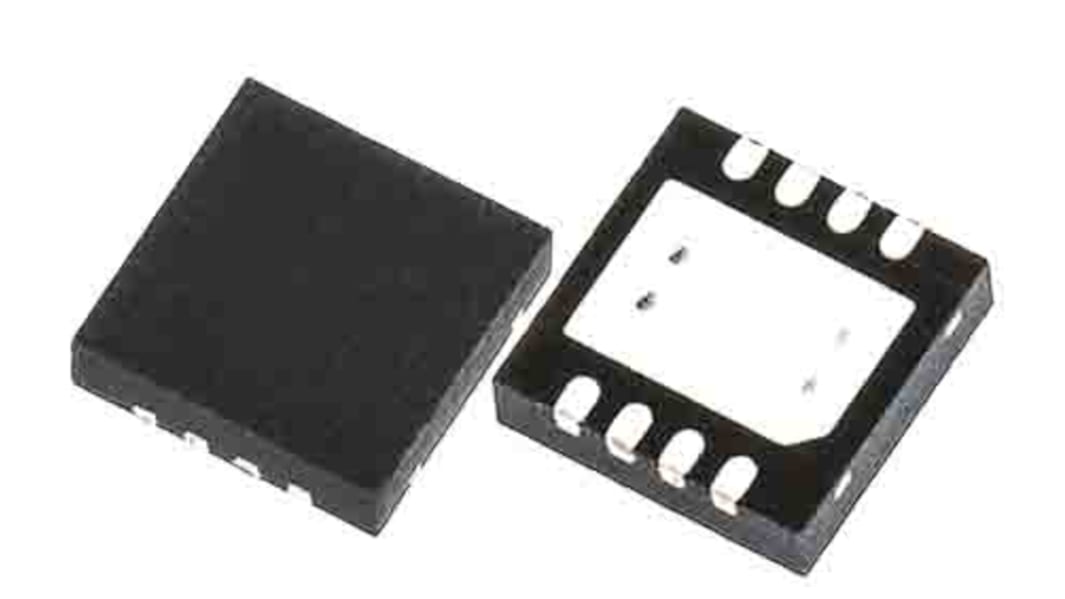

IXYS IXDI602D2TR MOSFET Gate Driver 2, 2 A 8-Pin 35 V, DFN
- RS Stock No.:
- 213-1606
- Distrelec Article No.:
- 304-39-461
- Mfr. Part No.:
- IXDI602D2TR
- Brand:
- IXYS
Bulk discount available
Subtotal (1 pack of 10 units)*
£10.56
(exc. VAT)
£12.67
(inc. VAT)
Add 50 units to get free delivery
Last RS stock
- Final 9,390 unit(s), ready to ship
Units | Per unit | Per Pack* |
|---|---|---|
| 10 - 40 | £1.056 | £10.56 |
| 50 - 90 | £1.035 | £10.35 |
| 100 - 240 | £0.949 | £9.49 |
| 250 - 990 | £0.931 | £9.31 |
| 1000 + | £0.792 | £7.92 |
*price indicative
- RS Stock No.:
- 213-1606
- Distrelec Article No.:
- 304-39-461
- Mfr. Part No.:
- IXDI602D2TR
- Brand:
- IXYS
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | IXYS | |
| Product Type | MOSFET | |
| Output Current | 2A | |
| Pin Count | 8 | |
| Fall Time | 6.5ns | |
| Package Type | DFN | |
| Driver Type | MOSFET | |
| Number of Outputs | 2 | |
| Rise Time | 7.5ns | |
| Minimum Supply Voltage | 4.5V | |
| Maximum Supply Voltage | 35V | |
| Number of Drivers | 2 | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 125°C | |
| Standards/Approvals | No | |
| Length | 5mm | |
| Width | 4 mm | |
| Series | IXDI602 | |
| Height | 1mm | |
| Mount Type | Surface | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand IXYS | ||
Product Type MOSFET | ||
Output Current 2A | ||
Pin Count 8 | ||
Fall Time 6.5ns | ||
Package Type DFN | ||
Driver Type MOSFET | ||
Number of Outputs 2 | ||
Rise Time 7.5ns | ||
Minimum Supply Voltage 4.5V | ||
Maximum Supply Voltage 35V | ||
Number of Drivers 2 | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 125°C | ||
Standards/Approvals No | ||
Length 5mm | ||
Width 4 mm | ||
Series IXDI602 | ||
Height 1mm | ||
Mount Type Surface | ||
Automotive Standard No | ||
The IXYS dual high-speed gate driver is especially well suited for driving the latest MOSFET and IGBT. The input of the driver is CMOS compatible, and is virtually immune to latch up and this driver is available in 8-pin DFN package.
Matched Rise and Fall Times
Low Propagation Delay Time
Low Output Impedance
