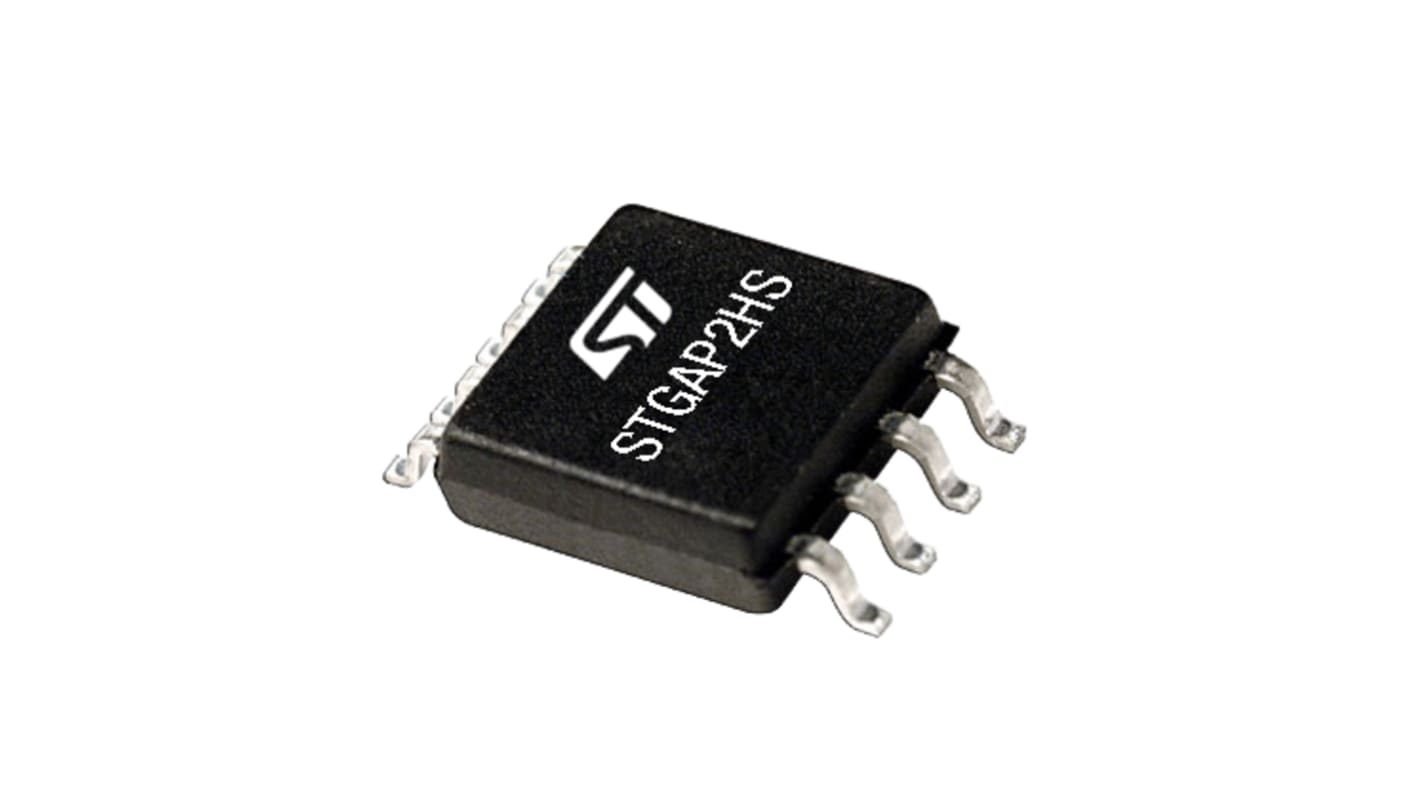

STMicroelectronics STGAP2HSMTR, Gate Driver 1, 4 A 8-Pin 5.5 V, SO-16
- RS Stock No.:
- 206-8628
- Mfr. Part No.:
- STGAP2HSMTR
- Brand:
- STMicroelectronics
Bulk discount available
View bulk pricing optionsSubtotal (1 pack of 5 units)*
£20.00
(exc. VAT)
£24.00
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- Shipping from 14 December 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 5 - 45 | £4.00 | £20.00 |
| 50 - 95 | £3.39 | £16.95 |
| 100 - 245 | £2.998 | £14.99 |
| 250 - 495 | £2.92 | £14.60 |
| 500 + | £2.85 | £14.25 |
*price indicative
- RS Stock No.:
- 206-8628
- Mfr. Part No.:
- STGAP2HSMTR
- Brand:
- STMicroelectronics
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | STMicroelectronics | |
| Product Type | single Gate Driver | |
| Output Current | 4A | |
| Pin Count | 8 | |
| Fall Time | 30ns | |
| Package Type | SO-16 | |
| Driver Type | Gate Driver | |
| Rise Time | 30ns | |
| Minimum Supply Voltage | 3.1V | |
| Number of Drivers | 1 | |
| Maximum Supply Voltage | 5.5V | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 125°C | |
| Series | STGAP2HS | |
| Standards/Approvals | No | |
| Height | 2.64mm | |
| Length | 7.59mm | |
| Mount Type | Surface | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand STMicroelectronics | ||
Product Type single Gate Driver | ||
Output Current 4A | ||
Pin Count 8 | ||
Fall Time 30ns | ||
Package Type SO-16 | ||
Driver Type Gate Driver | ||
Rise Time 30ns | ||
Minimum Supply Voltage 3.1V | ||
Number of Drivers 1 | ||
Maximum Supply Voltage 5.5V | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 125°C | ||
Series STGAP2HS | ||
Standards/Approvals No | ||
Height 2.64mm | ||
Length 7.59mm | ||
Mount Type Surface | ||
Automotive Standard No | ||
The STMicroelectronics STGAP2HS is a single gate driver which provides galvanic isolation between the gate driving channel and the low voltage control and interface circuitry.
High voltage rail up to 1200 V
Driver current capability: 4 A sink/source @25°C
dV/dt transient immunity ±100 V/ns in full temperature range
Over all input-output propagation delay: 75 ns
Separate sink and source option for easy gate driving configuration
