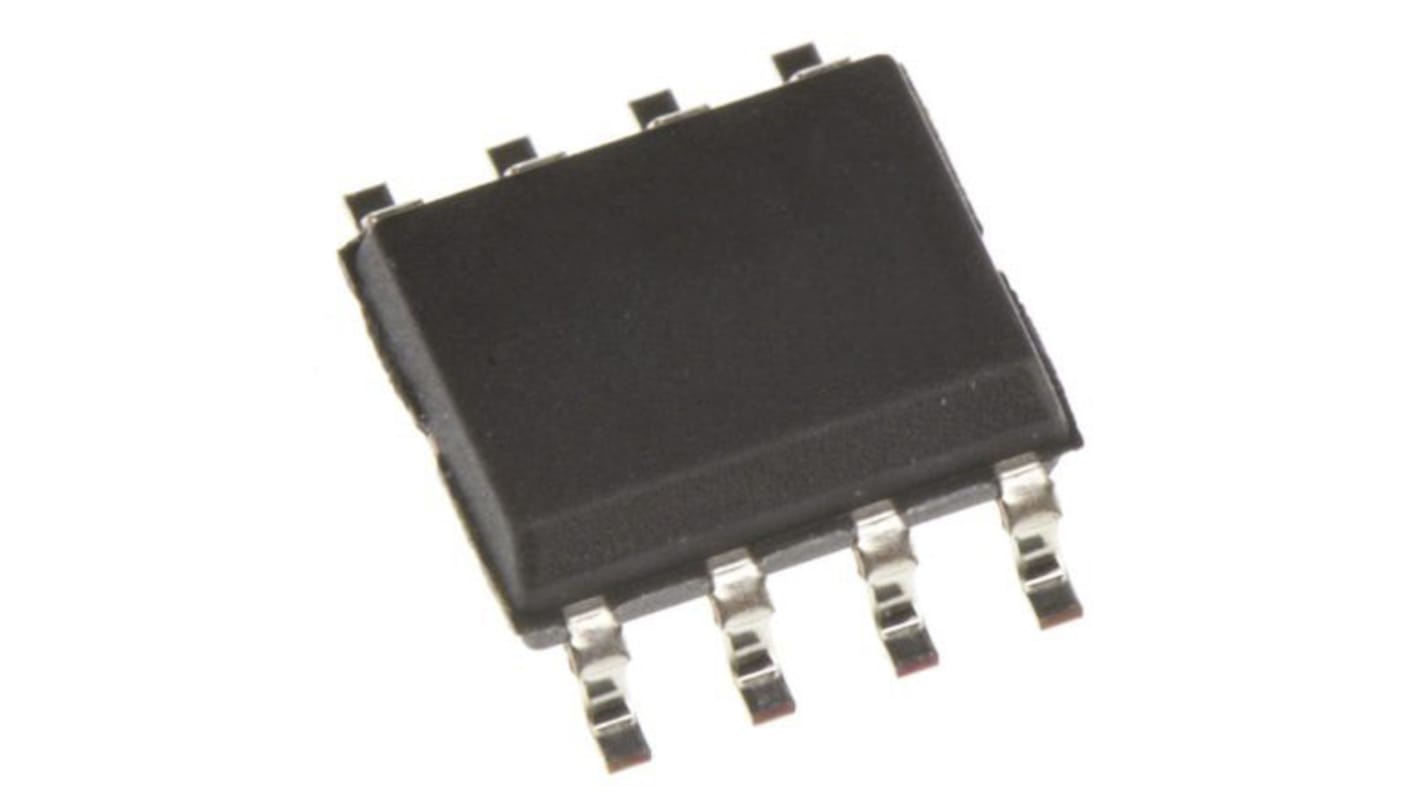

Maxim Integrated MAX15013AASA+ MOSFET Gate Driver 2, 2 A 8-Pin 12.6 V, SO-16

View all Gate Drivers

Subtotal (1 pack of 2 units)*

£13.46

(exc. VAT)

£16.16

(inc. VAT)

Add to Basket
Select or type quantity
Last RS stock
  • Final 40 unit(s), ready to ship
Units
Per unit
Per Pack*
2 +£6.73£13.46

*price indicative

Packaging Options:
RS Stock No.:
190-6439
Mfr. Part No.:
MAX15013AASA+
Brand:
Maxim Integrated
Find similar products by selecting one or more attributes.
Select all

Brand

Maxim Integrated

Product Type

MOSFET

Output Current

2A

Pin Count

8

Fall Time

65ns

Package Type

SO-16

Driver Type

MOSFET

Number of Outputs

5

Rise Time

65ns

Minimum Supply Voltage

12.6V

Maximum Supply Voltage

12.6V

Number of Drivers

2

Minimum Operating Temperature

-40°C

Maximum Operating Temperature

125°C

Series

MAX15013

Width

4 mm

Standards/Approvals

No

Length

5mm

Height

1.5mm

Mount Type

Surface

Automotive Standard

No

COO (Country of Origin):
PH
HIP2100/HIP2101 Pin Compatible (MAX15012A/C and MAX15013A/C)

Up to 175V Input Operation

8V to 12.6V VDD Input Voltage Range

2A Peak Source and Sink Current Drive Capability

35ns Typical Propagation Delay

Guaranteed 8ns Propagation Delay Matching Between Drivers

Up to 500kHz Switching Frequency

Available in CMOS (VDD/2) or TTL Logic-Level Inputs with Hysteresis

Up to 14V Logic Inputs Independent of Input Voltage

Low 2.5pF Input Capacitance

Low 70μA Supply Current

Versions Available with Combination of Noninverting and Inverting Drivers (MAX15012B/D and MAX15013B/D)

Available in Industry-Standard 8-Pin SO and Thermally Enhanced SO Packages

Applications

Active-Clamp Forward Converters

Full-Bridge Converters

Motor Control

Power-Supply Modules

Telecom Half-Bridge Power Supplies

Two-Switch Forward Converters
