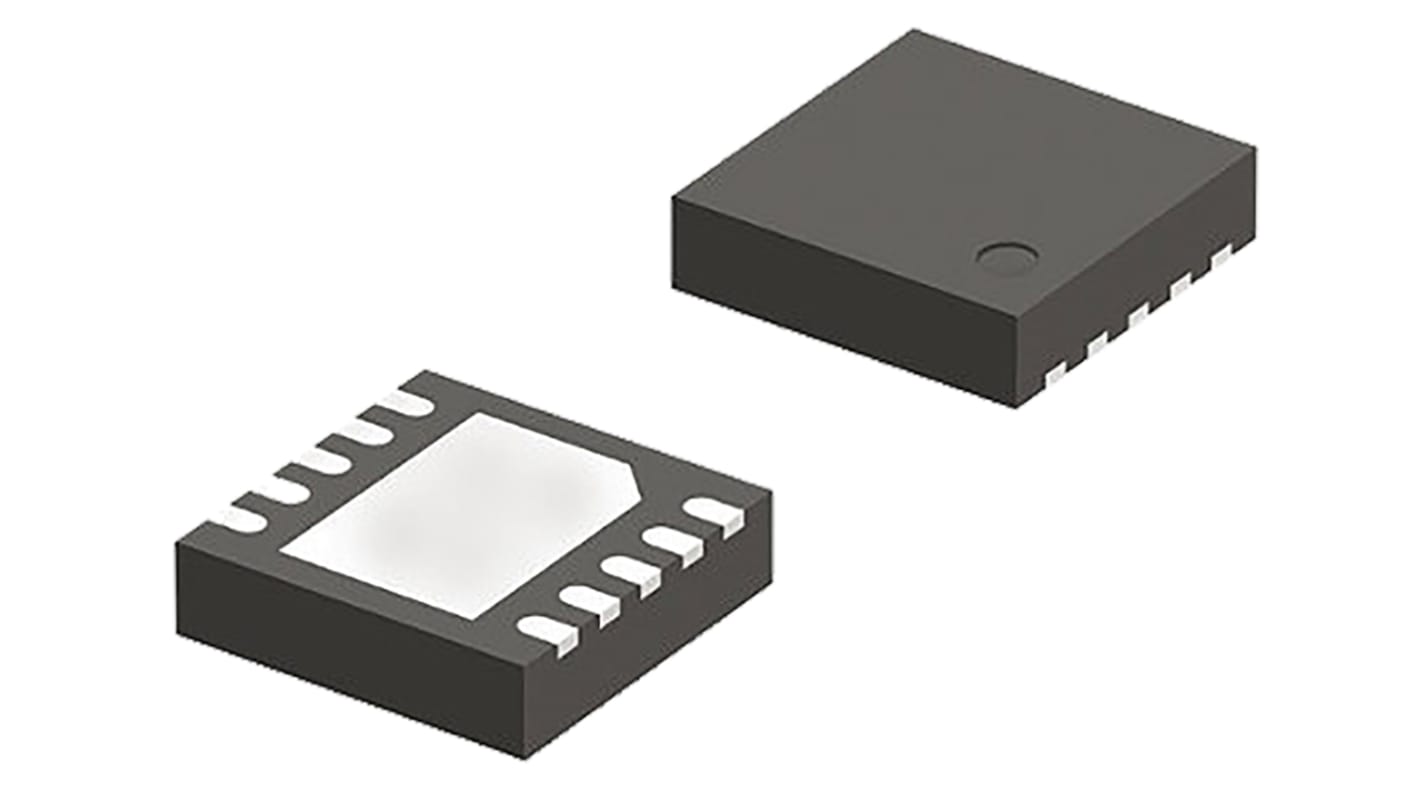

Renesas Electronics HIP2105FRZ MOSFET Gate Driver 1, 5.5V 10-Pin, DFN

View all Gate Drivers
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
RS Stock No.:
179-3297
Mfr. Part No.:
HIP2105FRZ
Brand:
Renesas Electronics
Find similar products by selecting one or more attributes.
Select all

Brand

Renesas Electronics

Supply Voltage

5.5V

Pin Count

10

Fall Time

15ns

Package Type

DFN

Driver Type

MOSFET

Number of Outputs

1

Rise Time

15ns

High and Low Sides Dependency

Dependent

Number of Drivers

1

Bridge Type

Synchronous

Mounting Type

Surface Mount

The HIP2105 and HIP2106A are high frequency MOSFET drivers optimized to drive two N-channel power MOSFETs in a synchronous buck converter topology. The HIP2105 has HI/LI inputs and the HIP2106A has a single PWM input. Both these drivers, combined with Renesas multi-phase buck PWM controllers, form a complete single-stage core-voltage regulator solution with high-efficiency performance at high switching frequency for advanced microprocessors.

Adaptive shoot-through protection (HIP2106A only)
HI and LI inputs (HIP2105 only)
0.4Ω ON-resistance and 4A sink current capability
Low tri-state hold-off time (20ns) (HIP2106A only)
Supports 3.3V and 5V HI/LI or PWM input
Power-On Reset (POR)
Dual Flat No-Lead (DFN) package
Near chip-scale package footprint, improves PCB efficiency and thinner in profile
