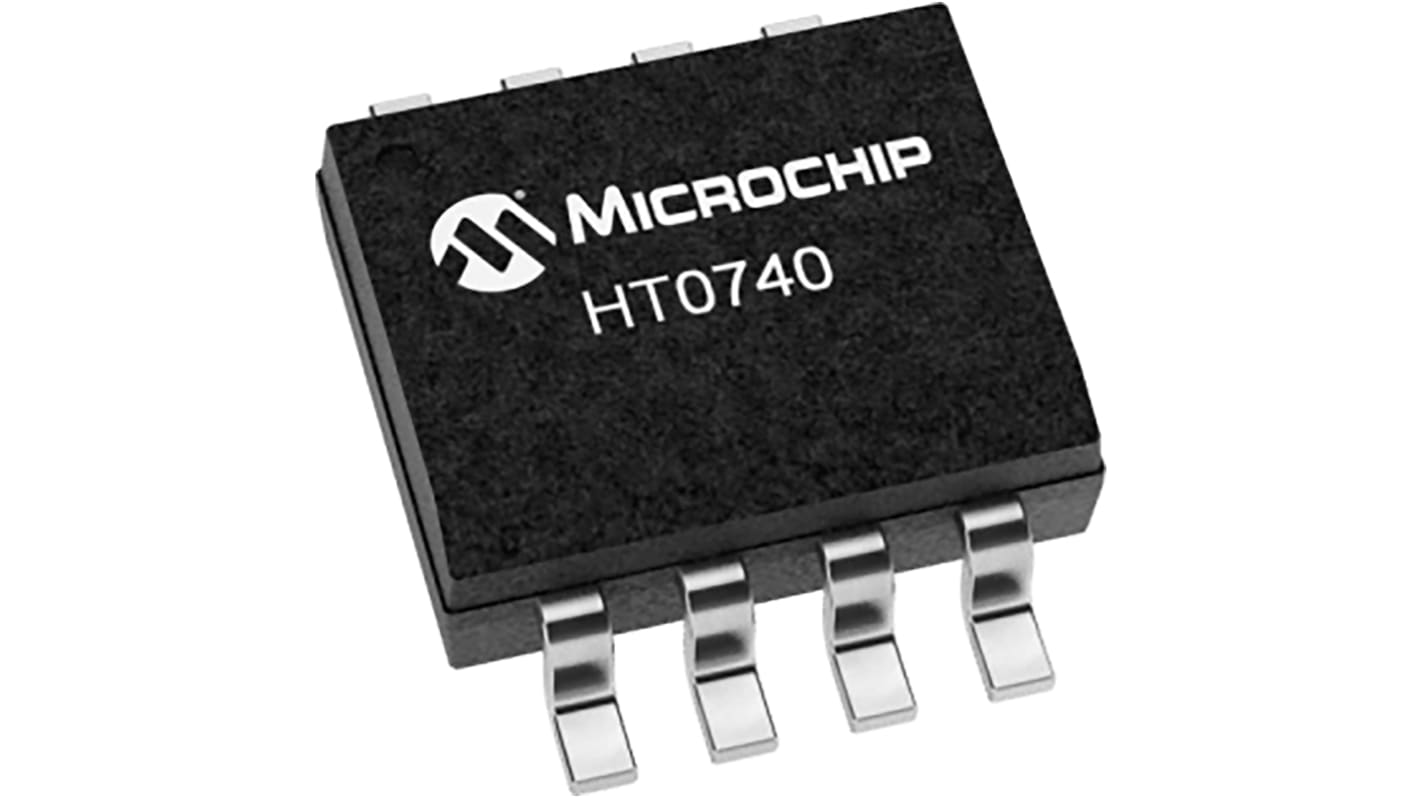

Microchip MOSFET Gate Driver 1 8-Pin 7 V, SOIC
- RS Stock No.:
- 177-3003P
- Mfr. Part No.:
- HT0740LG-G
- Brand:
- Microchip
Bulk discount available
View bulk pricing optionsSubtotal 30 units (supplied on a continuous strip)*
£31.86
(exc. VAT)
£38.22
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- Plus 3,280 unit(s) shipping from 01 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 30 - 90 | £1.062 |
| 100 + | £0.971 |
*price indicative
- RS Stock No.:
- 177-3003P
- Mfr. Part No.:
- HT0740LG-G
- Brand:
- Microchip
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Microchip | |
| Product Type | MOSFET | |
| Pin Count | 8 | |
| Fall Time | 3ms | |
| Package Type | SOIC | |
| Driver Type | MOSFET | |
| Rise Time | 650μs | |
| Minimum Supply Voltage | 5.5V | |
| Number of Drivers | 1 | |
| Maximum Supply Voltage | 7V | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 85°C | |
| Height | 1.65mm | |
| Length | 5mm | |
| Series | HT0440 | |
| Standards/Approvals | No | |
| Mount Type | Surface | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand Microchip | ||
Product Type MOSFET | ||
Pin Count 8 | ||
Fall Time 3ms | ||
Package Type SOIC | ||
Driver Type MOSFET | ||
Rise Time 650μs | ||
Minimum Supply Voltage 5.5V | ||
Number of Drivers 1 | ||
Maximum Supply Voltage 7V | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 85°C | ||
Height 1.65mm | ||
Length 5mm | ||
Series HT0440 | ||
Standards/Approvals No | ||
Mount Type Surface | ||
Automotive Standard No | ||
The HT0740 is a single-channel high-voltage low input
current isolated driver that uses the HVCMOS®
technology. It is designed to drive discrete MOSFETs
configured as high-side switches up to 400V. The
HT0740 generates an independent DC-isolated
voltage across +VOUT and –VOUT when the logic input
is at a logic high. The HT0740 does not require any
external power supplies. The internal supply voltage is
provided by the logic input when it is in high state.
Features:
±400V Input to Output Isolation
Low Input Logic Current, 500 μA (Maximum)
No External Voltage Supply Required
Floating Isolated Output Drivers
5V Logic Compatible
Applications:
Telecommunications
Modems
Solid State Relays
High-side Switches
High-end Audio Switches
Avionics
Automatic Test Equipment
