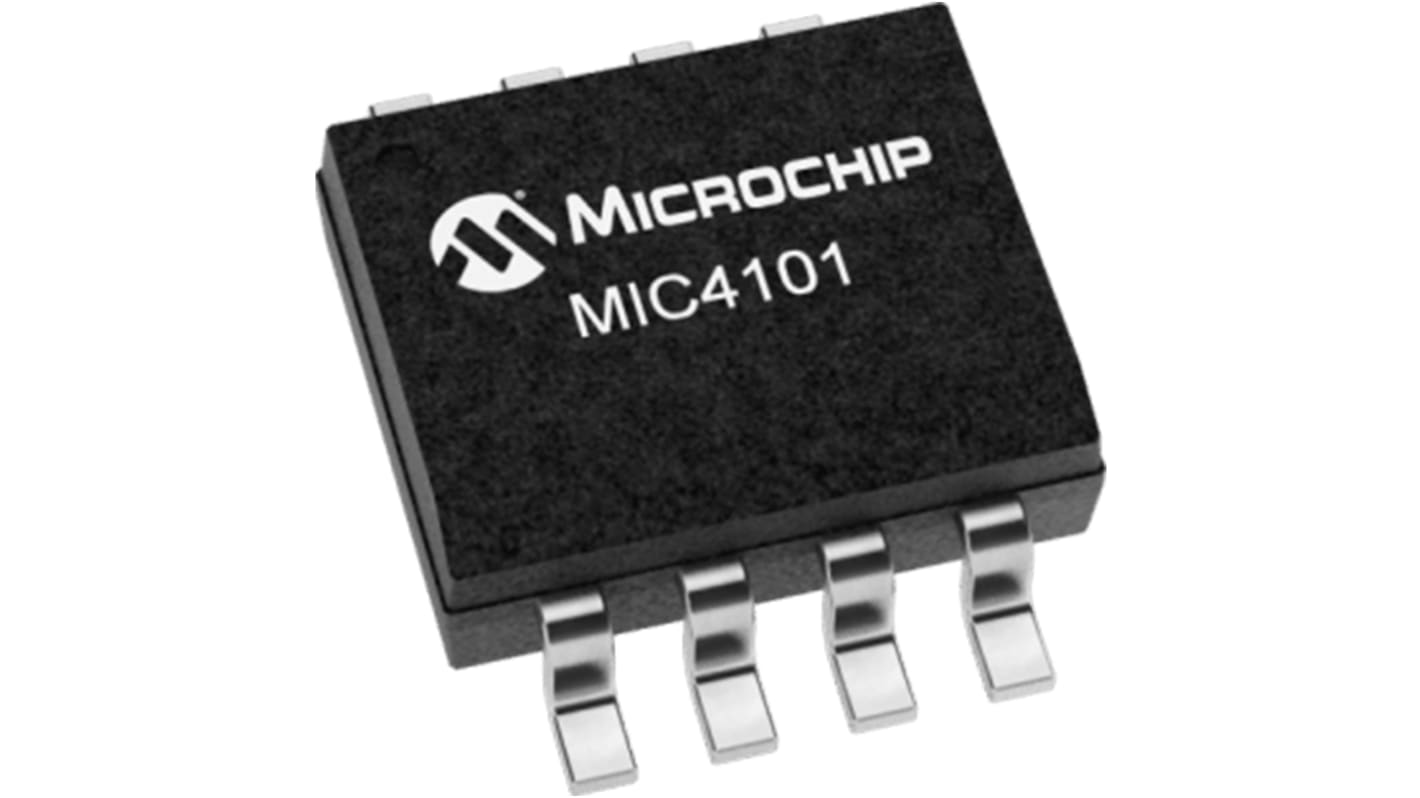

Microchip MIC4101YM, MOSFET 2, 2 A, 2 A, 16V 8-Pin, SOIC
- RS Stock No.:
- 177-0939
- Mfr. Part No.:
- MIC4101YM
- Brand:
- Microchip
Available to back order for despatch when stock is available
Added
Price Each (In a Pack of 5)
£1.606
(exc. VAT)
£1.927
(inc. VAT)
| Units | Per unit | Per Pack* |
| 5 + | £1.606 | £8.03 |
| *price indicative | ||
- RS Stock No.:
- 177-0939
- Mfr. Part No.:
- MIC4101YM
- Brand:
- Microchip
Technical Reference
Legislation and Compliance
Product Details
The MIC4100/1 are high frequency, 100V Half Bridge MOSFET driver ICs featuring fast 30ns propagation delay times. The low-side and high-side gate drivers are independently controlled and matched to within 3ns typical. The MIC4100 has CMOS input thresholds, and the MIC4101 has TTL input thresholds. The MIC4100/1 include a high voltage internal diode that charges the high-side gate drive bootstrap capacitor. A robust, high-speed, and low power level shifter provides clean level transitions to the high side output.
Bootstrap supply max voltage to 118V DC
Supply voltage up to 16V
Drives high- and low-side N-Channel MOSFETs with independent inputs
CMOS input thresholds (MIC4100)
TTL input thresholds (MIC4101)
On-chip bootstrap diode
e
Supply voltage up to 16V
Drives high- and low-side N-Channel MOSFETs with independent inputs
CMOS input thresholds (MIC4100)
TTL input thresholds (MIC4101)
On-chip bootstrap diode
e
Specifications
Attribute | Value |
|---|---|
| Logic Type | TTL |
| Output Current | 2 A, 2 A |
| Supply Voltage | 16V |
| Pin Count | 8 |
| Fall Time | 10ns |
| Package Type | SOIC |
| Number of Outputs | 2 |
| Rise Time | 10ns |
| Topology | Half Bridge |
| High and Low Sides Dependency | Independent |
| Time Delay | 55ns |
| Number of Drivers | 2 |
| Bridge Type | Half Bridge |
| Polarity | Non-Inverting |
| Mounting Type | Surface Mount |
