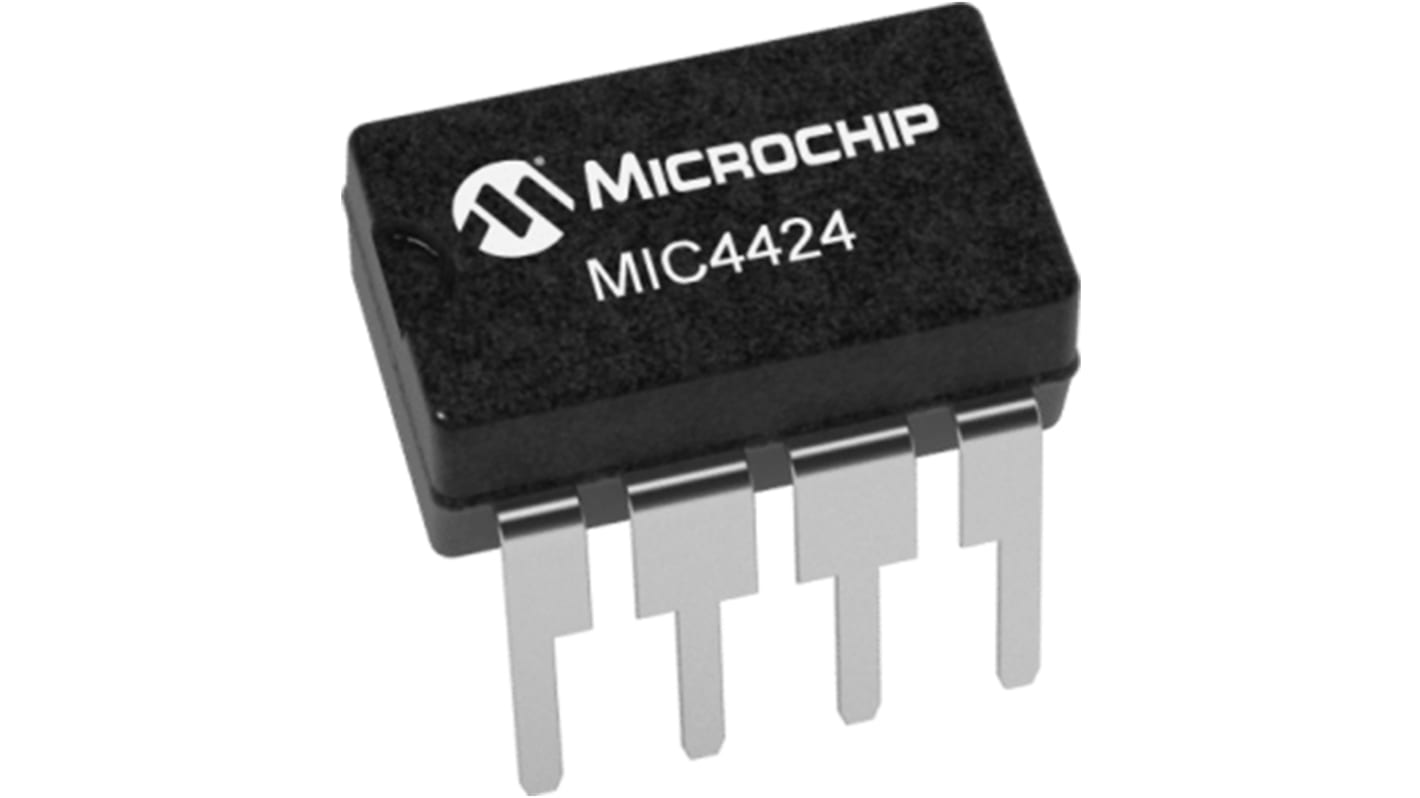

Microchip MIC4424ZN, MOSFET 2, 3 A, 18V 8-Pin, DIP
- RS Stock No.:
- 177-0415
- Mfr. Part No.:
- MIC4424ZN
- Brand:
- Microchip
Available to back order for despatch 08/07/2024
Price Each (In a Tube of 50)
£1.46
(exc. VAT)
£1.75
(inc. VAT)
| Units | Per unit | Per Tube* |
| 50 - 50 | £1.46 | £73.00 |
| 100 + | £1.327 | £66.35 |
| *price indicative | ||
- RS Stock No.:
- 177-0415
- Mfr. Part No.:
- MIC4424ZN
- Brand:
- Microchip
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- US
Product Details
The MIC4423/4424/4425 family are highly reliable BiCMOS/DMOS buffer/driver/MOSFET drivers. They are higher output current versions of the MIC4426/4427/4428, which are improved versions of the MIC426/427/428. All three families are pin-compatible. The MIC4423/4424/4425 drivers are capable of giving reliable service in more demanding electrical environments than their predecessors.
3.5mA with logic 1 input
350μA with logic 0 input
Low 3.5Ω typical output impedance
Output voltage swings within 25mV of ground or VS.
'426/7/8-, '1426/7/8-, '4426/7/8-compatible pinout
Inverting, noninverting, and differential configurations
350μA with logic 0 input
Low 3.5Ω typical output impedance
Output voltage swings within 25mV of ground or VS.
'426/7/8-, '1426/7/8-, '4426/7/8-compatible pinout
Inverting, noninverting, and differential configurations
Specifications
Attribute | Value |
|---|---|
| Logic Type | CMOS, TTL |
| Output Current | 3 A |
| Supply Voltage | 18V |
| Pin Count | 8 |
| Fall Time | 60ns |
| Package Type | DIP |
| Number of Outputs | 2 |
| Rise Time | 60ns |
| Topology | Low Side |
| High and Low Sides Dependency | Independent |
| Time Delay | 100ns |
| Number of Drivers | 2 |
| Mounting Type | Through Hole |
