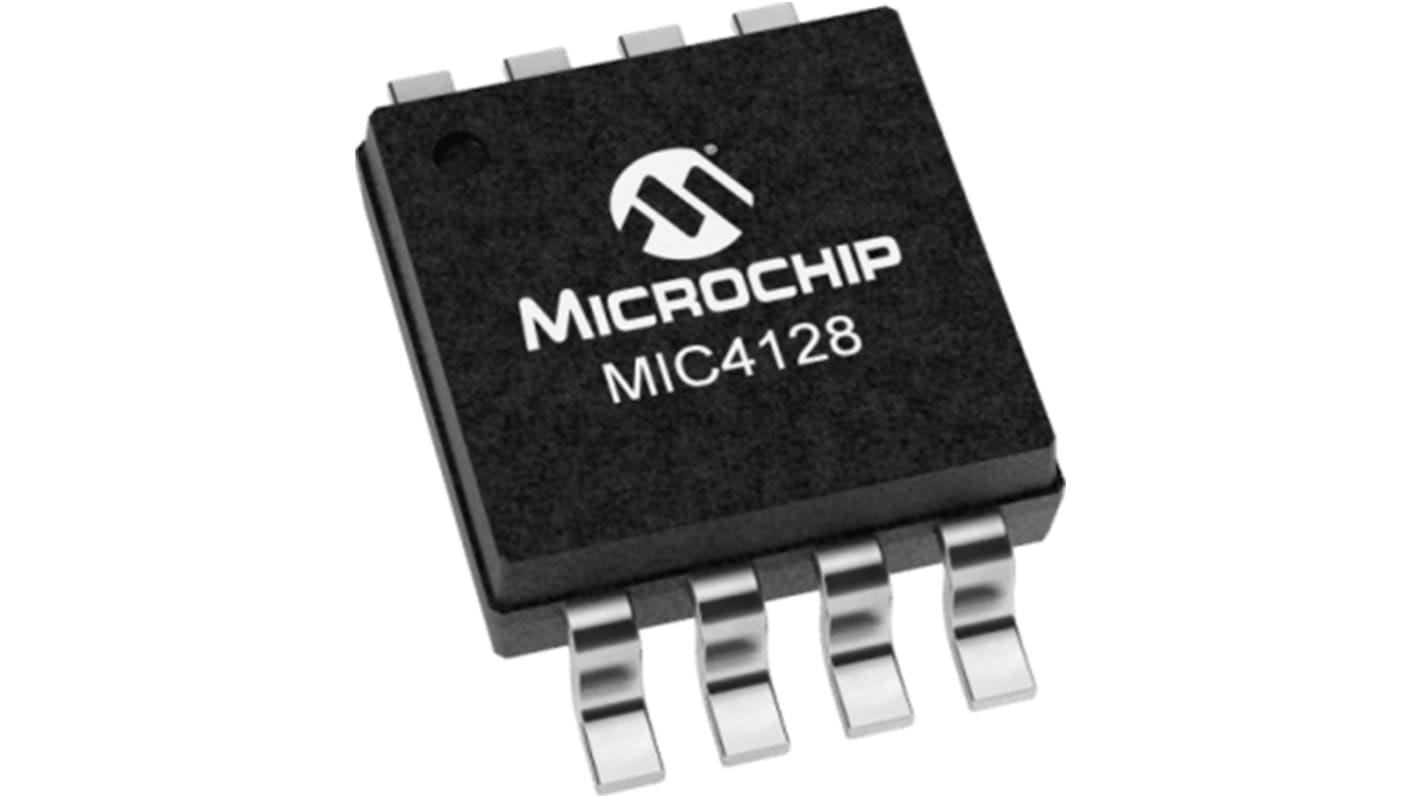

Microchip MIC4128YMME MOSFET Gate Driver 2, 1.5 A, 20V 8-Pin, MSOP

View all Gate Drivers

Subtotal (1 tube of 100 units)*

£56.90

(exc. VAT)

£68.30

(inc. VAT)

Add to Basket
Select or type quantity
Last RS stock
  • Final 800 unit(s), ready to ship
Units
Per unit
Per Tube*
100 +£0.569£56.90

*price indicative

RS Stock No.:
177-0402
Mfr. Part No.:
MIC4128YMME
Brand:
Microchip
Find similar products by selecting one or more attributes.
Select all

Brand

Microchip

Logic Type

CMOS, TTL

Output Current

1.5 A

Supply Voltage

20V

Pin Count

8

Fall Time

40ns

Package Type

MSOP

Number of Outputs

2

Driver Type

MOSFET

Rise Time

40ns

Topology

Low Side

High and Low Sides Dependency

Independent

Time Delay

70ns

Number of Drivers

2

Mounting Type

Surface Mount

COO (Country of Origin):
US
The MIC4126, MIC4127, and MIC4128 family are highly-reliable dual 1.5A low-side MOSFET drivers fabricated on BiCMOS/DMOS process. The devices feature low power consumption and high efficiency. The MIC4126/27/28 translate TTL or CMOS input logic levels to output voltage levels that swing within 25mV of the positive supply or ground whereas comparable bipolar devices are capable of swinging only to within 1V of the supply..

Exposed backside pad packaging reduces heat
Bipolar/CMOS/DMOS construction
25mV maximum output offset from supply or ground
Latch-up protection to >500mA reverse current
Switches 1000pF in 25ns
Logic-input threshold independent of supply voltage
Logic-input protection to -5V
6pF typical equivalent input capacitance
Dual inverting, dual non-inverting, and complementary configurations
-40°C to +125°C operating junction temperature range
