- RS Stock No.:
- 177-0398
- Mfr. Part No.:
- MIC4104YM
- Brand:
- Microchip
Available to back order for despatch 04/06/2024
Added
Price Each (In a Tube of 95)
£1.71
(exc. VAT)
£2.05
(inc. VAT)
Units | Per unit | Per Tube* |
95 - 95 | £1.71 | £162.45 |
190 + | £1.624 | £154.28 |
*price indicative |
- RS Stock No.:
- 177-0398
- Mfr. Part No.:
- MIC4104YM
- Brand:
- Microchip
Technical Reference
Legislation and Compliance
Product Details

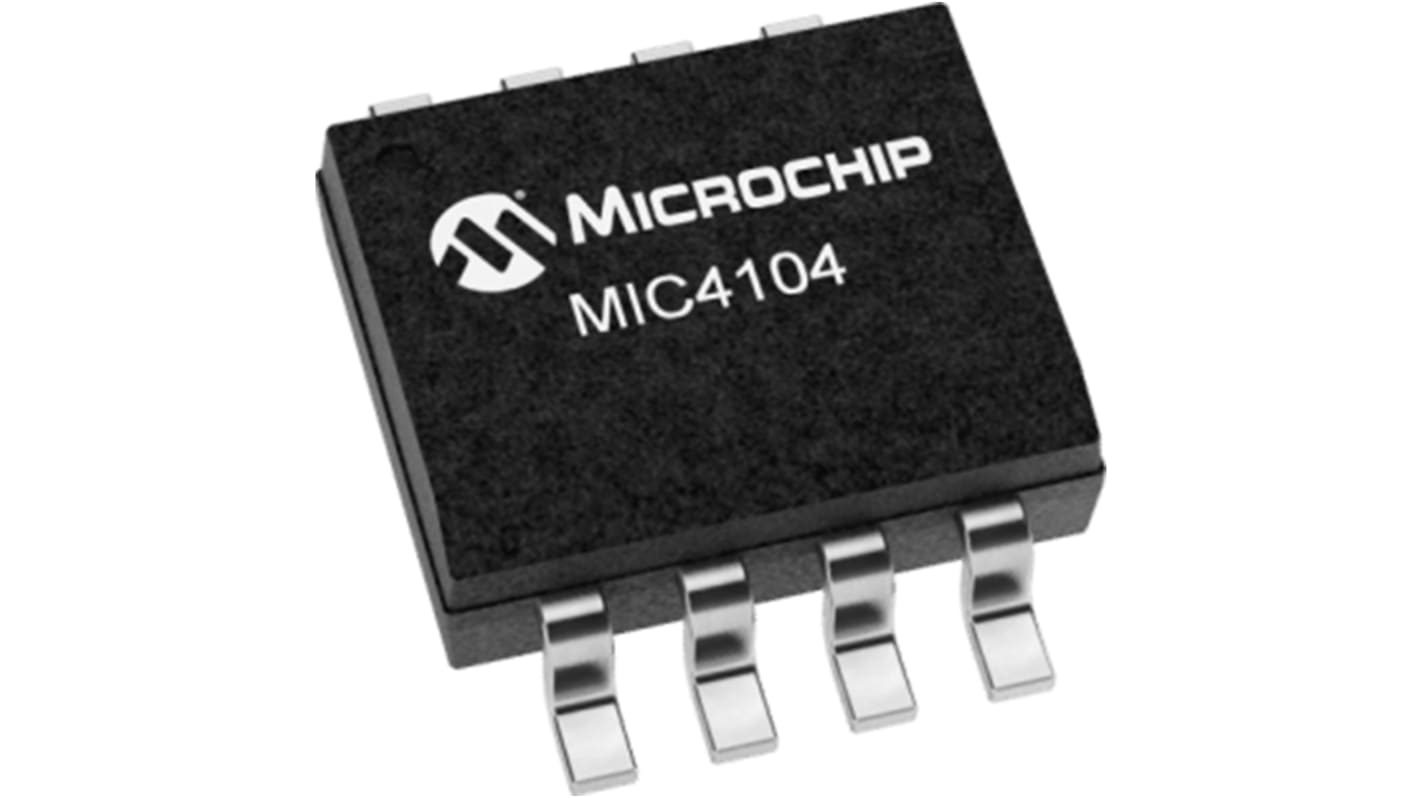

The MIC4103 and MIC4104 are high frequency, 100V Half Bridge MOSFET drivers with faster turn-off characteristics than the MIC4100 and MIC4101 drivers. They feature fast 24ns propagation delay times and 6ns driver fall times.
Asymmetrical, low impedance outputs drive 1000pF load with 10ns rise times and 6ns fall times
Bootstrap supply max voltage to 118V DC
Supply voltage up to 16V
Drives high- and low-side N-Channel MOSFETs with independent inputs
CMOS input thresholds (MIC4103)
TTL input thresholds (MIC4104)
Asymmetrical, low impedance outputs drive 1000pF load with 10ns rise times and 6ns fall times
Bootstrap supply max voltage to 118V DC
Supply voltage up to 16V
Drives high- and low-side N-Channel MOSFETs with independent inputs
CMOS input thresholds (MIC4103)
TTL input thresholds (MIC4104)
On-chip bootstrap diode
Fast 24ns propagation times
Low power consumption
Supply under-voltage protection
Bootstrap supply max voltage to 118V DC
Supply voltage up to 16V
Drives high- and low-side N-Channel MOSFETs with independent inputs
CMOS input thresholds (MIC4103)
TTL input thresholds (MIC4104)
Asymmetrical, low impedance outputs drive 1000pF load with 10ns rise times and 6ns fall times
Bootstrap supply max voltage to 118V DC
Supply voltage up to 16V
Drives high- and low-side N-Channel MOSFETs with independent inputs
CMOS input thresholds (MIC4103)
TTL input thresholds (MIC4104)
On-chip bootstrap diode
Fast 24ns propagation times
Low power consumption
Supply under-voltage protection
Specifications
Attribute | Value |
---|---|
Logic Type | TTL |
Output Current | 2 A, 3 A |
Supply Voltage | 16V |
Pin Count | 8 |
Package Type | SOIC |
Fall Time | 6ns |
Number of Outputs | 2 |
Rise Time | 10ns |
Topology | Half Bridge |
High and Low Sides Dependency | Independent |
Number of Drivers | 2 |
Time Delay | 45ns |
Bridge Type | Half Bridge |
Polarity | Non-Inverting |
Mounting Type | Surface Mount |
