The MCP14A0303/4/5 devices are dual output high-speed MOSFET drivers that are capable of providing up to 3.0A of peak current while operating from a single 4.5V to 18V supply. There are three output configurations available: inverting (MCP14A0303), non-inverting (MCP14A0304), and complimentary (one inverting and one non-inverting output - MCP14A0305). These devices feature low shoot through current, fast rise and fall times, and short propagation delays which make them ideal for high switching frequency applications.

High Peak Output Current: 3.0A
Wide Input Supply Voltage Operating Range: 4.5V to 18V
Low Shoot-Through/Cross-Conduction Current in Output Stage
High Capacitive Load Drive Capability: 1800 pF in 12 ns
Short Delay Times: 17 ns (tD1), 21 ns (tD2)
Low Supply Current: 620 μA
Low-Voltage Threshold Input and Enable with Hysteresis
Latch-Up Protected: Withstands 500 mA Reverse Current

Select all	Attribute	Value
	Brand	Microchip
	Logic Type	CMOS
	Output Current	3 A
	Supply Voltage	18V
	Pin Count	8
	Package Type	SOIC
	Fall Time	19ns
	Number of Outputs	2
	Driver Type	MOSFET
	Rise Time	19ns
	Topology	Low Side
	Time Delay	31ns
	Number of Drivers	2
	Polarity	Inverting
	Mounting Type	Surface Mount

	Select all
	Brand Microchip
	Logic Type CMOS
	Output Current 3 A
	Supply Voltage 18V
	Pin Count 8
	Package Type SOIC
	Fall Time 19ns
	Number of Outputs 2
	Driver Type MOSFET
	Rise Time 19ns
	Topology Low Side
	Time Delay 31ns
	Number of Drivers 2
	Polarity Inverting
	Mounting Type Surface Mount

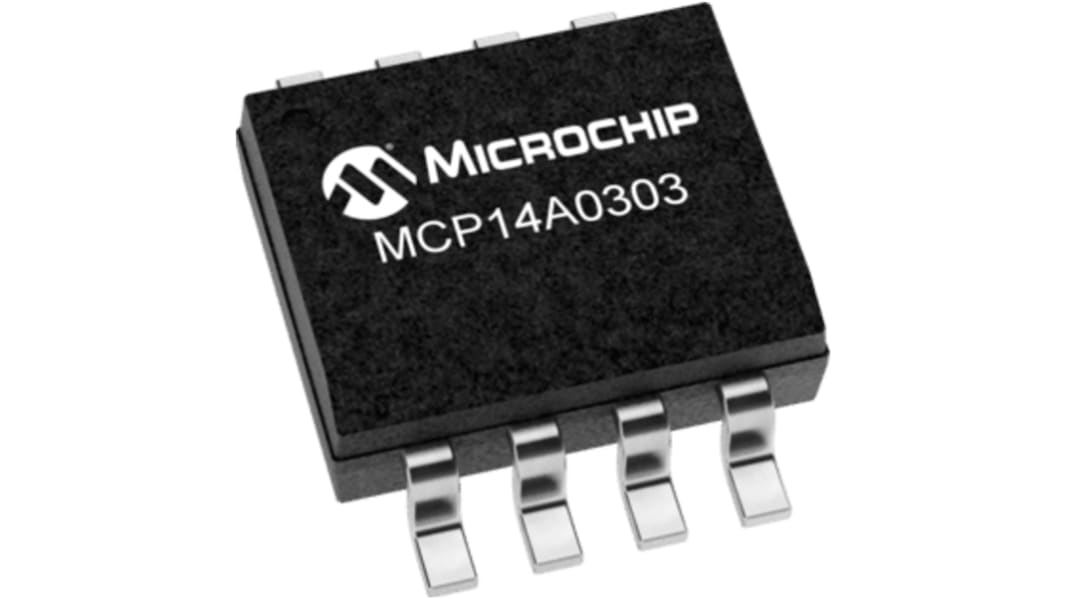

Microchip MCP14A0303-E/SN MOSFET Gate Driver 2, 3 A, 18V 8-Pin, SOIC
