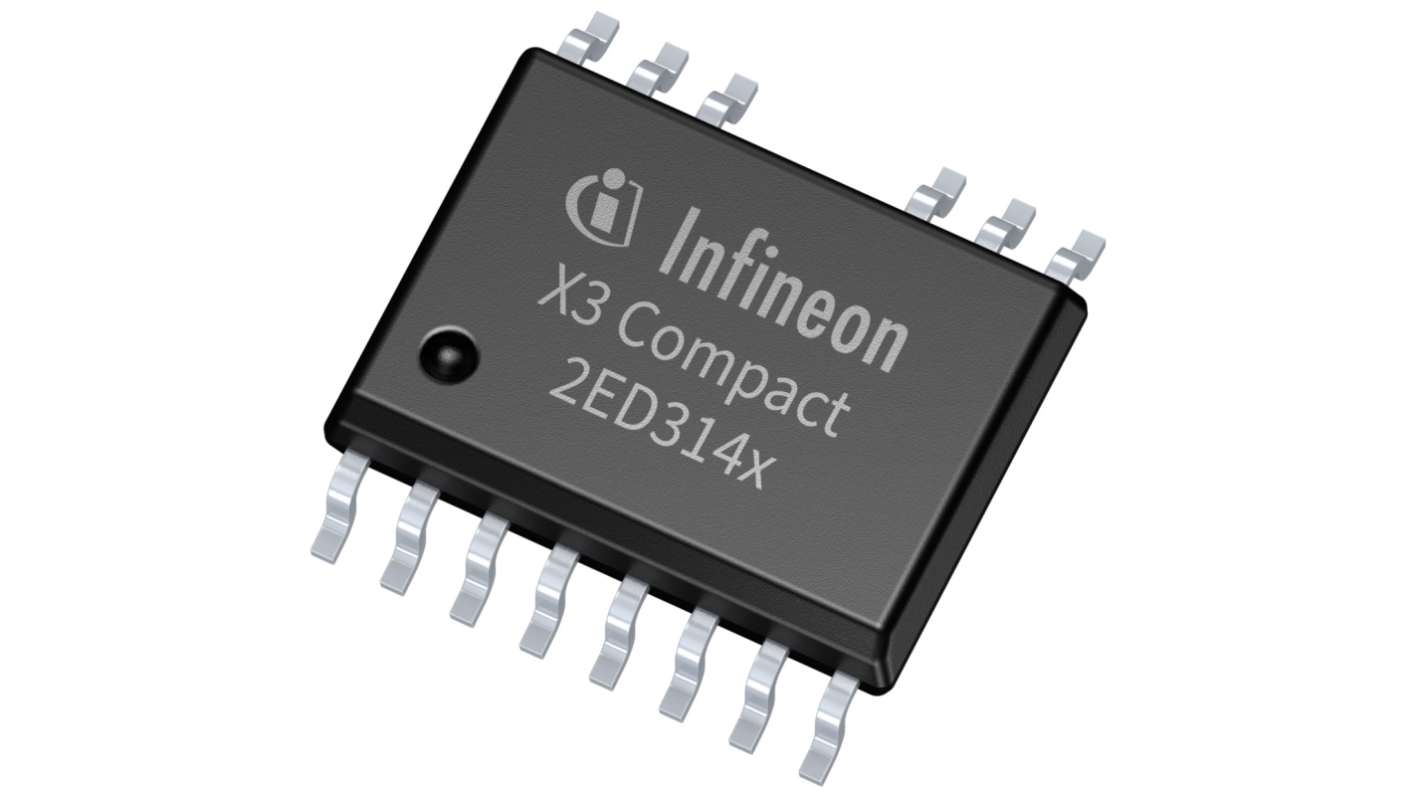

Infineon 2ED3142MC12LXUMA1 High Side Gate Driver 2, 6 A, -0.3 → 17V 14-Pin, PG-DSO-14-71
- RS Stock No.:
- 349-174
- Mfr. Part No.:
- 2ED3142MC12LXUMA1
- Brand:
- Infineon
Currently unavailable
Sorry, we don't know when this will be back in stock.
- RS Stock No.:
- 349-174
- Mfr. Part No.:
- 2ED3142MC12LXUMA1
- Brand:
- Infineon
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Infineon | |
Output Current | 6 A | |
Supply Voltage | -0.3 → 17V | |
Pin Count | 14 | |
Fall Time | 20ns | |
Package Type | PG-DSO-14-71 | |
Driver Type | High Side | |
Number of Drivers | 2 | |
Select all | ||
---|---|---|
Brand Infineon | ||
Output Current 6 A | ||
Supply Voltage -0.3 → 17V | ||
Pin Count 14 | ||
Fall Time 20ns | ||
Package Type PG-DSO-14-71 | ||
Driver Type High Side | ||
Number of Drivers 2 | ||
- COO (Country of Origin):
- ID
The Infineon EiceDRIVER 2ED314xMC12L is a family of dual channel isolated gate driver ICs designed to drive Si MOSFETs, IGBTs, and SiC MOSFETs. All products are available in a 14 pin DSO package with 8 mm input to output creepage and provide reinforced isolation. All variants offer dead time control functionality and independent channel operation. This enables the operation as dual channel low side driver, dual channel high side driver or half bridge gate driver with a configurable dead time.
Dual channel isolated gate driver
Up to 6.5 A typical peak output current
35 V absolute maximum output supply voltage
Active shutdown and short circuit clamping
Galvanically isolated coreless transformer gate driver
3.3 V and 5 V input supply voltage
Up to 6.5 A typical peak output current
35 V absolute maximum output supply voltage
Active shutdown and short circuit clamping
Galvanically isolated coreless transformer gate driver
3.3 V and 5 V input supply voltage
