SF Detection Wall Mounted Gas Detector for Carbon Monoxide Detection, Audible Alarm
- RS Stock No.:
- 390-0868
- Mfr. Part No.:
- 2102B0510
- Brand:
- SF Detection
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
Alternative
This product is not currently available. Here is our alternative recommendation.
Each
£92.14
(exc. VAT)
£110.57
(inc. VAT)
- RS Stock No.:
- 390-0868
- Mfr. Part No.:
- 2102B0510
- Brand:
- SF Detection
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | SF Detection | |
| Gases Detected | Carbon Monoxide | |
| Application | Domestic Environments | |
| Meter Type | Wall Mounted | |
| Audible Alarm | Yes | |
| Visual Alarm | Yes | |
| Power Source | Battery | |
| Battery Type | 9V | |
| Dimensions | 170 x 110 x 65mm | |
| Weight | 575g | |
| Width | 110mm | |
| Model Number p | SF340E | |
| Height | 65mm | |
| Minimum Operating Temperature | -5°C | |
| Length | 170mm | |
| Maximum Operating Temperature | +40°C | |
Select all | ||
|---|---|---|
Brand SF Detection | ||
Gases Detected Carbon Monoxide | ||
Application Domestic Environments | ||
Meter Type Wall Mounted | ||
Audible Alarm Yes | ||
Visual Alarm Yes | ||
Power Source Battery | ||
Battery Type 9V | ||
Dimensions 170 x 110 x 65mm | ||
Weight 575g | ||
Width 110mm | ||
Model Number p SF340E | ||
Height 65mm | ||
Minimum Operating Temperature -5°C | ||
Length 170mm | ||
Maximum Operating Temperature +40°C | ||
RoHS Status: Not Applicable
- COO (Country of Origin):
- GB

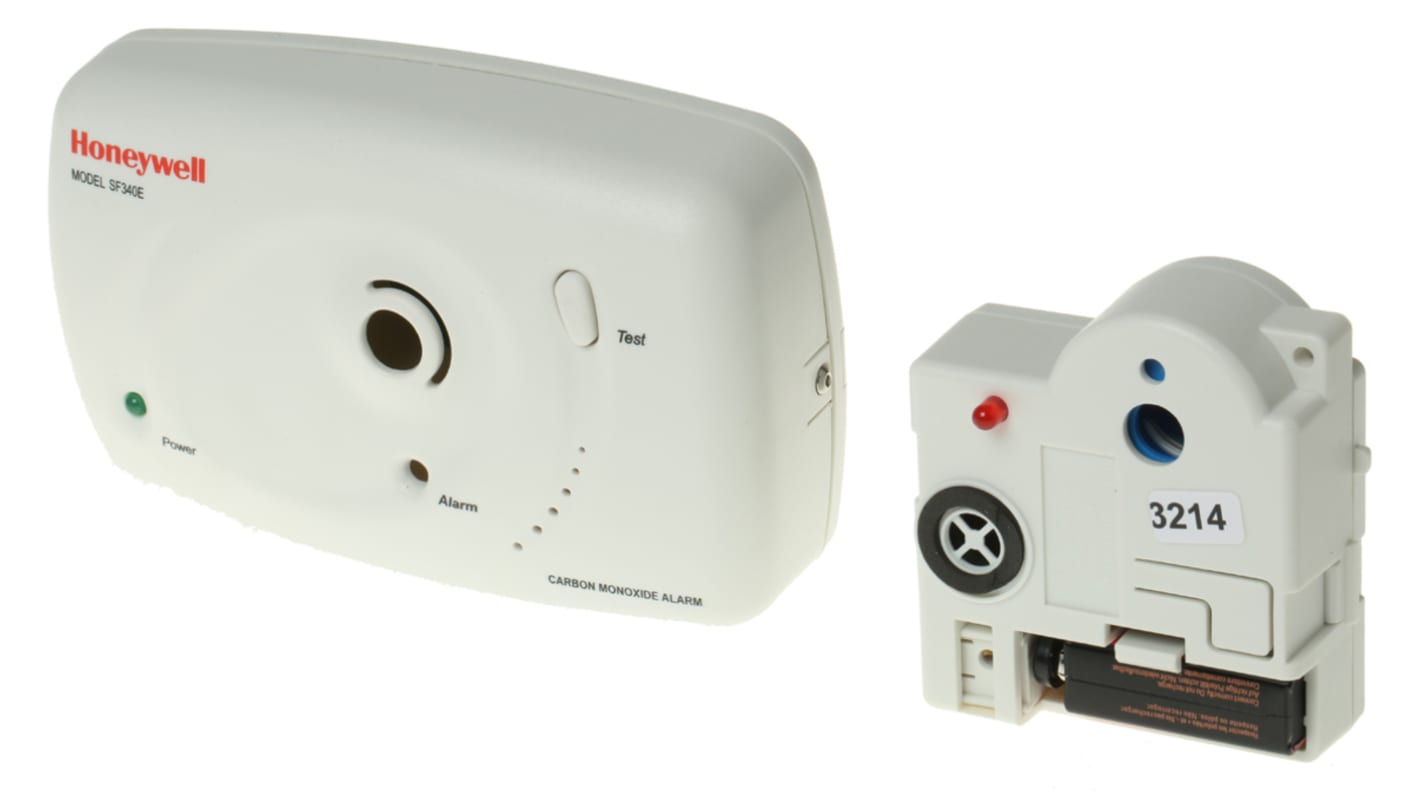

SF340 Carbon Monoxide Detectors
The SF340 series of CO detectors are designed for fixed and permanent installations, officially approved and kite-marked to BS7860 - the British standard for domestic CO alarms.They incorporate a unique module replacement system. There are no re-wiring or main unit replacement costs - just a simple, clip-in module to change once every 5 years. This results in low ownership costs and minimal maintenance. Optional locking screws also ensure that only authorised persons can gain access to the unit.
Battery backup - each unit offers up to 5 years battery backup for continuous protection, even in the event of power loss
Uses advanced electrochemical sensing technology, specially developed for detection of CO at low concentration without being adversely affected by other gases, household agents or environmental changes
Continuously monitors the environment for CO and provides an audible and visual alarm when concentration reaches 150ppm - the alarms continue if the gas remains at a dangerous level
An internal diagnostic facility means the SF340 carries out continuous self-monitoring. If any fault is located in the sensor, battery or circuits, the unit will automatically give a warning signal within 60 seconds
Complete 10 year guarantee on the main unit and a full 5 year guarantee on each sensor module
Relay/interconnect option available, enabling connection to control panels, shut-off valves, remote alarms etc. This also allows numbers of alarms to be linked together in series
Uses advanced electrochemical sensing technology, specially developed for detection of CO at low concentration without being adversely affected by other gases, household agents or environmental changes
Continuously monitors the environment for CO and provides an audible and visual alarm when concentration reaches 150ppm - the alarms continue if the gas remains at a dangerous level
An internal diagnostic facility means the SF340 carries out continuous self-monitoring. If any fault is located in the sensor, battery or circuits, the unit will automatically give a warning signal within 60 seconds
Complete 10 year guarantee on the main unit and a full 5 year guarantee on each sensor module
Relay/interconnect option available, enabling connection to control panels, shut-off valves, remote alarms etc. This also allows numbers of alarms to be linked together in series
SF340E - 230V, 50Hz standard model
SF340F - 230V, 50Hz relay output model (for relay and interconnect feature)
SF340F - 230V, 50Hz relay output model (for relay and interconnect feature)
Note
For a full range of gas detection tubes see typically stock no. 376-9875
Supplied with
Installation kit and full fitting/operational instructions.
Standards
BS7860
Gas Detection: Carbon Monoxide Detection
Carbon Monoxide is a deadly toxic gas that has no smell and cannot be seen or tasted. Its presence is lethal causing death and injury, it can be caused by poorly installed or maintained heating appliances, chimneys, flues and gas fired cooking appliances. Even low levels of CO can impair judgement and greatly increase risk of accidents and injury in motorists and machine operators.
