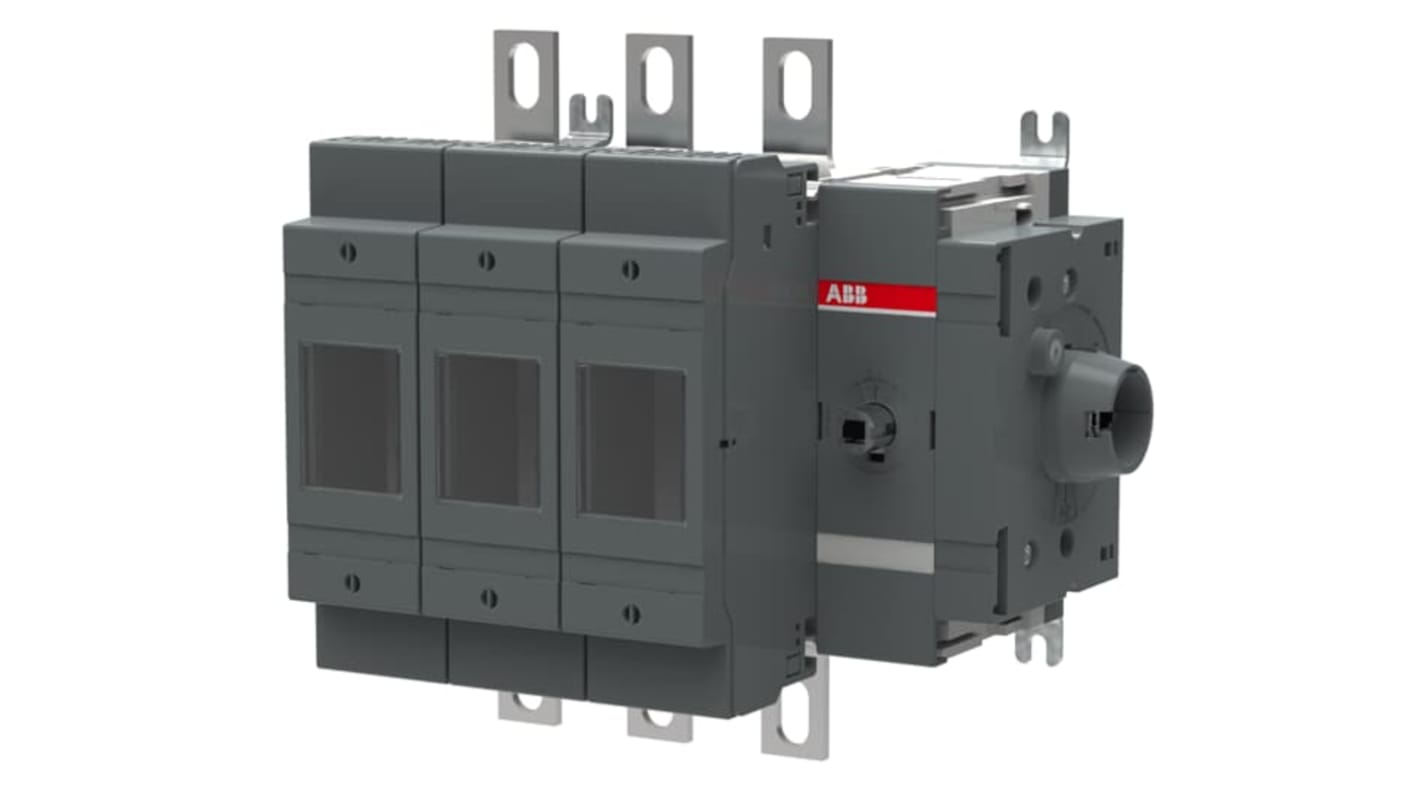

ABB Fuse Switch Disconnector, 3-Pole, 200A, B1/B2
- RS Stock No.:
- 259-9684
- Mfr. Part No.:
- 1SCA022870R7770
- Brand:
- ABB
Subtotal (1 unit)*
£414.84
(exc. VAT)
£497.81
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 08 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £414.84 |
*price indicative
- RS Stock No.:
- 259-9684
- Mfr. Part No.:
- 1SCA022870R7770
- Brand:
- ABB
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | ABB | |
| Product Type | Fuse Switch Disconnector | |
| Number of Poles | 3 | |
| Current Rating | 200A | |
| Voltage | 690V | |
| Mount Type | Base | |
| Terminal Type | Lug Terminal | |
| Series | 1SCA02 | |
| Fuse Size | B1/B2 | |
| Height | 199mm | |
| Standards/Approvals | IEC 60947-3 | |
| Depth | 209mm | |
| Width | 130mm | |
| Select all | ||
|---|---|---|
Brand ABB | ||
Product Type Fuse Switch Disconnector | ||
Number of Poles 3 | ||
Current Rating 200A | ||
Voltage 690V | ||
Mount Type Base | ||
Terminal Type Lug Terminal | ||
Series 1SCA02 | ||
Fuse Size B1/B2 | ||
Height 199mm | ||
Standards/Approvals IEC 60947-3 | ||
Depth 209mm | ||
Width 130mm | ||
The ABB side operated switch fuse has 3-poles. It has 17 W power loss per pole at rated operating conditions.
Base mounting
Lug terminals
