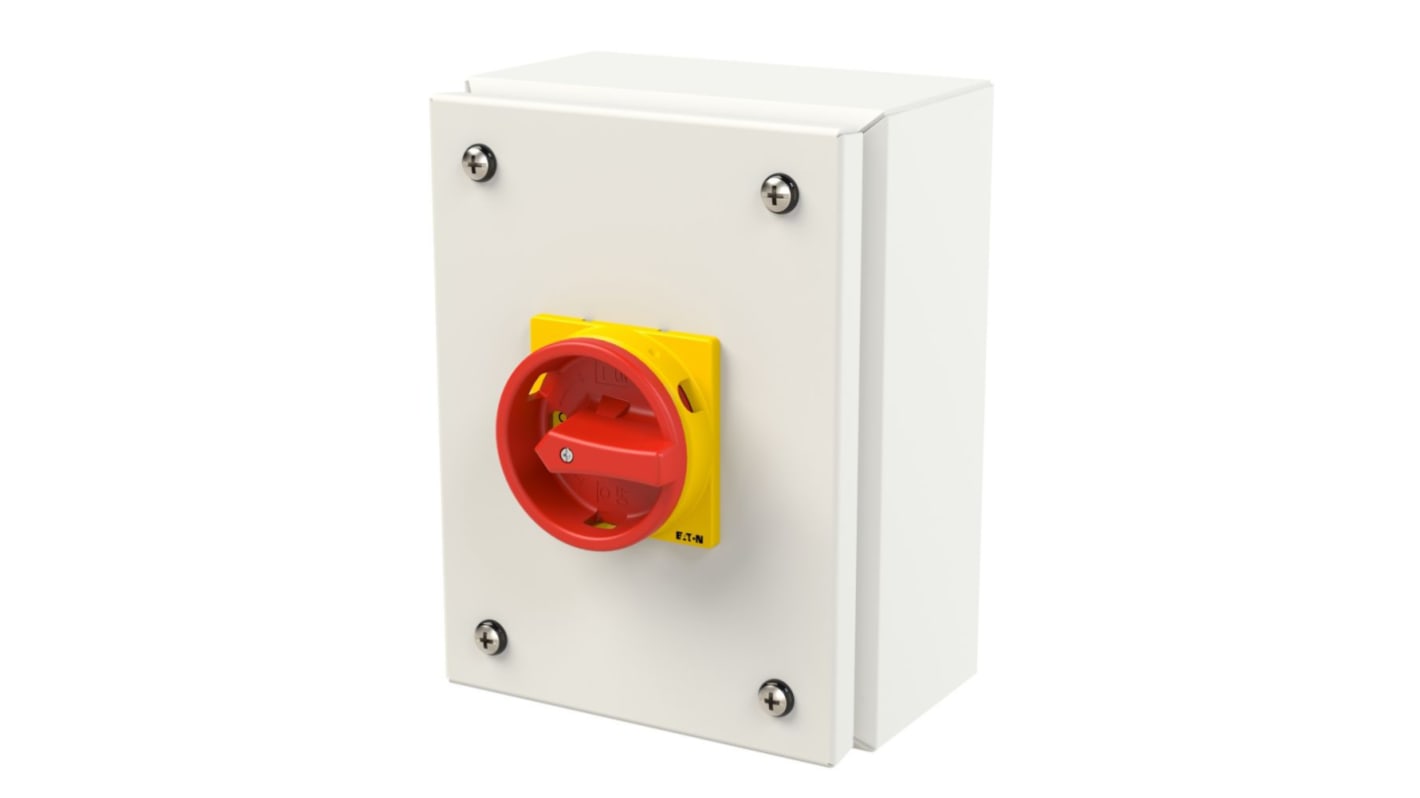

Eaton Switch Disconnector, 3-Pole, 20 A, 20A
- RS Stock No.:
- 204-1579
- Mfr. Part No.:
- 197377 T0-2-1/SE1/SVB
- Brand:
- Eaton
Subtotal (1 unit)*
£180.98
(exc. VAT)
£217.18
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 2 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £180.98 |
*price indicative
- RS Stock No.:
- 204-1579
- Mfr. Part No.:
- 197377 T0-2-1/SE1/SVB
- Brand:
- Eaton
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Eaton | |
| Number of Poles | 3 | |
| Product Type | Switch Disconnector | |
| Enclosed/Not Enclosed | Enclosed | |
| Mount Type | Surface Mount | |
| Switching Voltage | 690V ac | |
| Terminal Type | Screw | |
| Switching Current | 20A | |
| Series | T0 | |
| IP Rating | IP65 | |
| Minimum Operating Temperature | -25°C | |
| Fuse Current | 20A | |
| Switching Power | 5.5kW | |
| Maximum Operating Temperature | 40°C | |
| Auxiliary Contacts Available | No | |
| Standards/Approvals | VDE 0660, IEC/EN 60204, IEC/EN 60947 | |
| Select all | ||
|---|---|---|
Brand Eaton | ||
Number of Poles 3 | ||
Product Type Switch Disconnector | ||
Enclosed/Not Enclosed Enclosed | ||
Mount Type Surface Mount | ||
Switching Voltage 690V ac | ||
Terminal Type Screw | ||
Switching Current 20A | ||
Series T0 | ||
IP Rating IP65 | ||
Minimum Operating Temperature -25°C | ||
Fuse Current 20A | ||
Switching Power 5.5kW | ||
Maximum Operating Temperature 40°C | ||
Auxiliary Contacts Available No | ||
Standards/Approvals VDE 0660, IEC/EN 60204, IEC/EN 60947 | ||
Eaton Series T0 Fuse Switch Disconnector, 20A Maximum Current, 3NO Normal State Configuration - 197377 T0-2-1/SE1/SVB
This fuse switch disconnector is essential for electrical safety and control systems. It is designed for effective isolation and switching of electrical circuits, ensuring operational safety in various industrial applications. With a maximum current capacity of 20A, this enclosed switch disconnector is suitable for surface mounting in diverse environments, delivering dependable performance and ease of installation.
Features & Benefits
• Enclosed design increases durability and safeguards internal components
• Emergency shut-off function provides immediate safety
• Lockable rotary handle prevents unauthorised access
• IP65 rating offers protection against dust and water ingress
• Screw terminal connection simplifies installation
Applications
• Isolating circuits in industrial settings
• Facilitating maintenance during electrical service work
• Utilising in systems requiring a dependable emergency cut-off
• Appropriate for surface-mounted installations in compact spaces
• Functions as a main switch for equipment control
What is the installation process for the device?
The device can be easily surface-mounted using the appropriate screws and fittings as detailed in the technical specifications.
Is it compatible with various electrical systems?
Yes, it handles multiple voltage ratings up to 690V, making it versatile for different electrical setups.
Note
Eaton formerly known as Moeller
