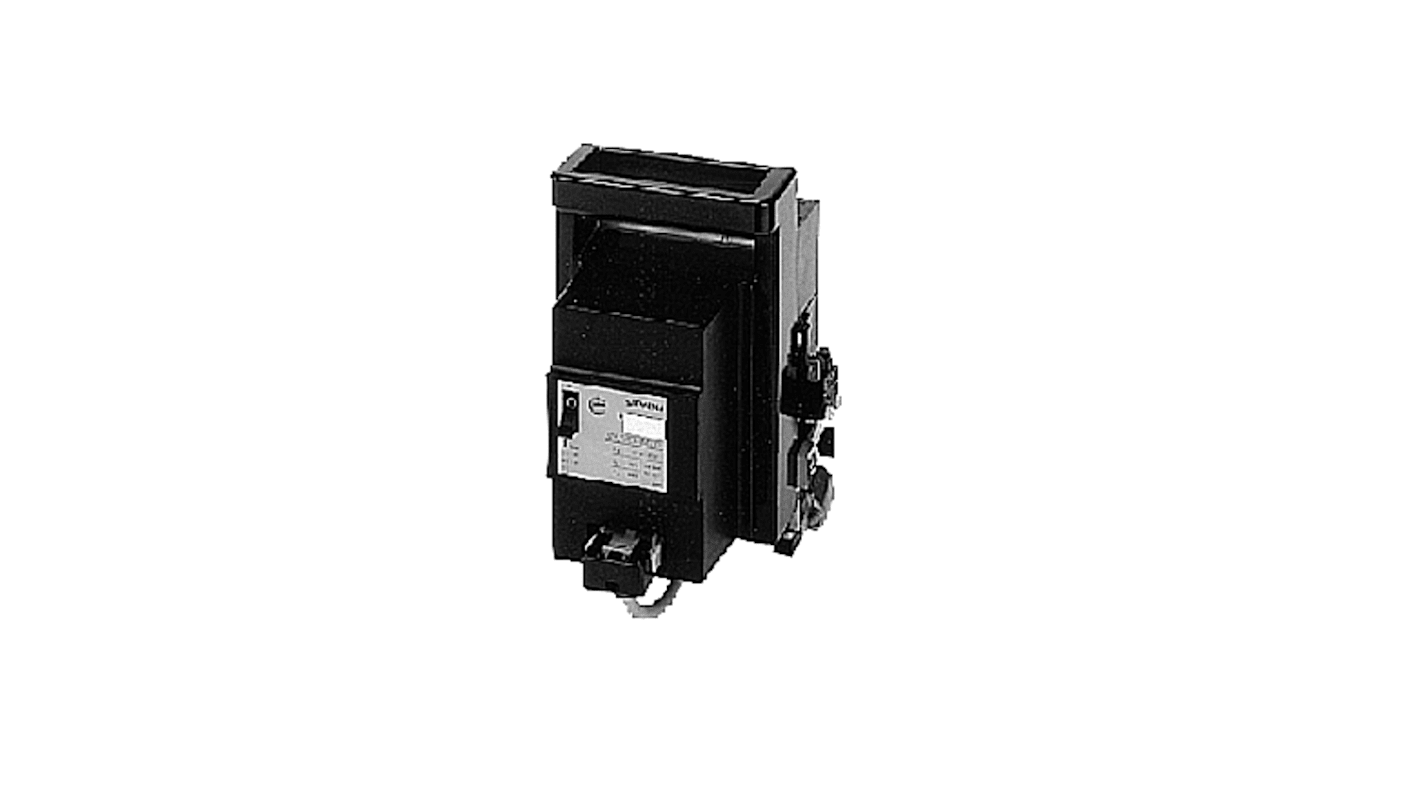

Siemens Fuse Switch Disconnector, 3-Pole
- RS Stock No.:
- 143-561
- Mfr. Part No.:
- 3NP5065-1EG26
- Brand:
- Siemens
Subtotal (1 unit)*
£571.90
(exc. VAT)
£686.28
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 22 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £571.90 |
*price indicative
- RS Stock No.:
- 143-561
- Mfr. Part No.:
- 3NP5065-1EG26
- Brand:
- Siemens
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Siemens | |
| Product Type | Fuse Switch Disconnector | |
| Number of Poles | 3 | |
| Enclosed/Not Enclosed | Not Enclosed | |
| Mount Type | DIN Rail | |
| Terminal Type | Clamp Terminal | |
| Series | SENTRON | |
| IP Rating | IP00 | |
| Minimum Operating Temperature | -25°C | |
| Mechanical Fuse Size | NH00 | |
| Maximum Operating Temperature | 55°C | |
| Standards/Approvals | CCC, CE, EAC, UKCA | |
| Select all | ||
|---|---|---|
Brand Siemens | ||
Product Type Fuse Switch Disconnector | ||
Number of Poles 3 | ||
Enclosed/Not Enclosed Not Enclosed | ||
Mount Type DIN Rail | ||
Terminal Type Clamp Terminal | ||
Series SENTRON | ||
IP Rating IP00 | ||
Minimum Operating Temperature -25°C | ||
Mechanical Fuse Size NH00 | ||
Maximum Operating Temperature 55°C | ||
Standards/Approvals CCC, CE, EAC, UKCA | ||
- COO (Country of Origin):
- DE
The Siemens 3NP5 Fuse Switch Disconnector is a robust 3 pole device designed for NH00 fuses, rated at 160 A. It features an adapter for the 8US 40 mm busbar system and includes high speed closing functionality for efficient operation. With clamp terminals for secure connections, this model supports fuse monitoring through 3VU. Additionally, it is equipped with an auxiliary switch at the switch disconnector offering 1 normally open NO and 1 normally closed NC contact, as well as an auxiliary switch at the fuse monitoring with 2 normally open NO contacts.
IP00 protection rated
Fuse monitoring
UKCA and CE approved
CCC and EAC approved
