Bulk discount available
Subtotal (1 unit)*
£143.03
(exc. VAT)
£171.64
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 7 unit(s) ready to ship
- Plus 7 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | £143.03 |
| 5 - 9 | £135.88 |
| 10 + | £128.72 |
*price indicative
- RS Stock No.:
- 611-9138
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Product Type | Fuse Kit | |
| Kit Contents | 10 x F1.25A, 10 x F1.6A, 10 x F1A, 10 x F250mA, 10 x F2A, 10 x T160mA, 10 x T1.6A, 10 x T1A, 10 x T200mA, 10 x T2.5A, 10 x T2A, 10 x T3.15A, 10 x T315mA, 10 x T4A, 10 x T500mA, 10 x T630mA, 10 x T800mA | |
| Standards/Approvals | ANSI/ESD S20.20:2014, RoHS (Restriction of Hazardous Substances) compliant, BS EN 61340-5-1:2007 | |
| Select all | ||
|---|---|---|
Brand RS PRO | ||
Product Type Fuse Kit | ||
Kit Contents 10 x F1.25A, 10 x F1.6A, 10 x F1A, 10 x F250mA, 10 x F2A, 10 x T160mA, 10 x T1.6A, 10 x T1A, 10 x T200mA, 10 x T2.5A, 10 x T2A, 10 x T3.15A, 10 x T315mA, 10 x T4A, 10 x T500mA, 10 x T630mA, 10 x T800mA | ||
Standards/Approvals ANSI/ESD S20.20:2014, RoHS (Restriction of Hazardous Substances) compliant, BS EN 61340-5-1:2007 | ||
- COO (Country of Origin):
- CN

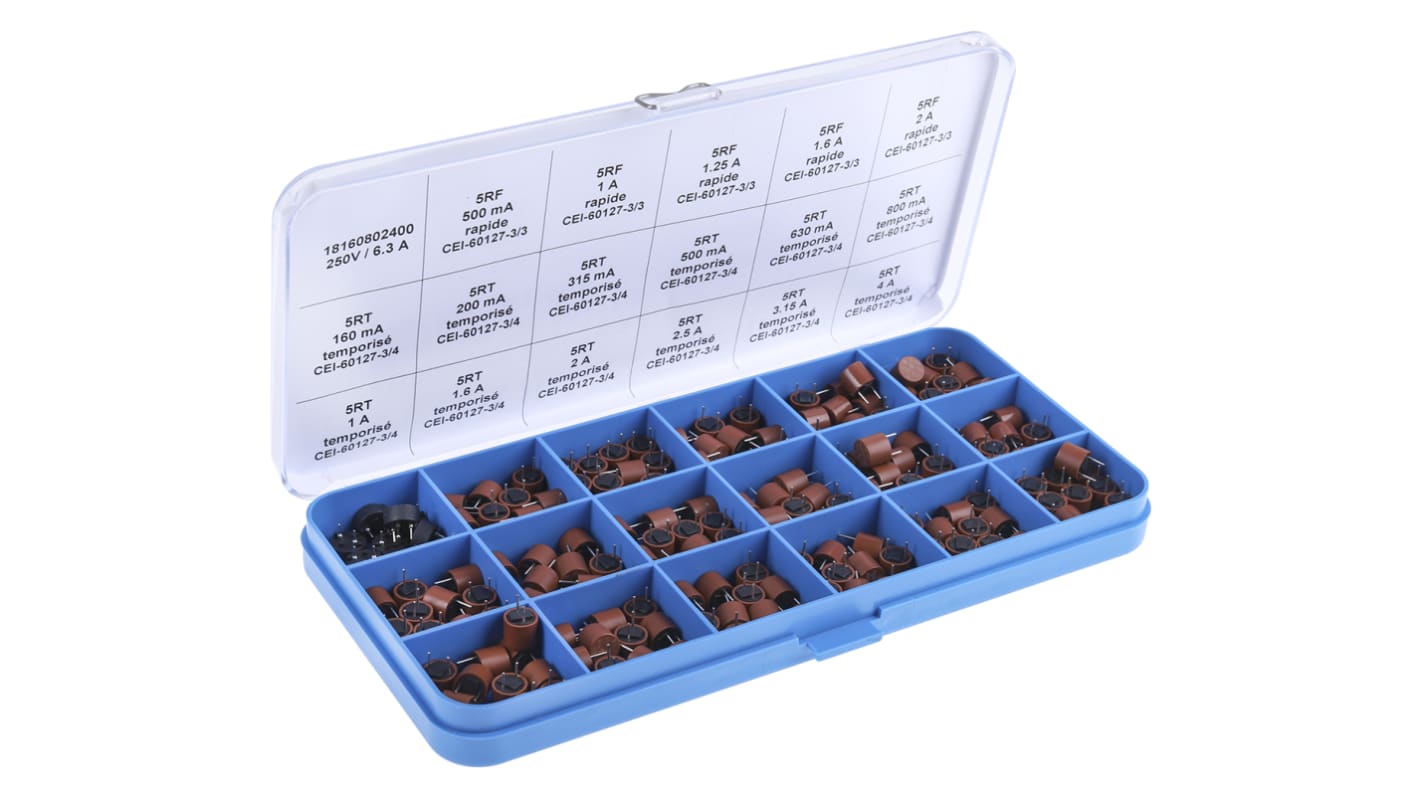

RS PRO F, T Fuse Kit
This RS PRO fuse kit has a fuse for all your general maintenance needs. It comes with a hard case that contains 170 fuses and 10 fuse holders. The fuses are TR5-type subminiature micro fuses that are solderable and pluggable.
This fuse kit includes five different types of fast-action F-type fuses and 10 different types of time-delay T-type fuses. There are 10 fuses of each type. Fast-action fuses respond instantaneously and break the circuit within seconds of an electrical surge. Time-delay fuses accommodate short surges in current, such as those experienced during the start-up of vehicles.
Part of the RS PRO range, the fuse kit is strictly tested for quality, consistency and durability. The fuse kit also meets a host of international standards (ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007) for protection against damage due to electrostatic discharge.
Features and Benefits
• TR5 fuse kit for maintenance applications
• Contains 12 types of time-delay fuses (10 of each type): T160 mA, T200 mA, T315 mA, T500 mA, T630 mA, 800 mA, T1 A, T1.6 A, T2A, T2.5 A, T3.15 A, T4 A
• Contains 5 types of fast-action fuses (10 of each type): F250 mA, F1 A, F1.25 A, F1.6 A, F2 A
• Contains 10 fuse holders
• RoHS (restriction of hazardous substances) compliant
RS PRO
RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards; they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.
Contents
10 off each of:
Fast acting fuses: F250mA ; F1A ; F1.25A ; F16 A ; F2A
Slow acting fuses: T160mA ; T200mA ; T315mA ; T500mA ; T630mA ; T800mA ; T1A ; T1.6A ; T2A ; T2.5A ; T3.15A ; T4A
Fast acting fuses: F250mA ; F1A ; F1.25A ; F16 A ; F2A
Slow acting fuses: T160mA ; T200mA ; T315mA ; T500mA ; T630mA ; T800mA ; T1A ; T1.6A ; T2A ; T2.5A ; T3.15A ; T4A
