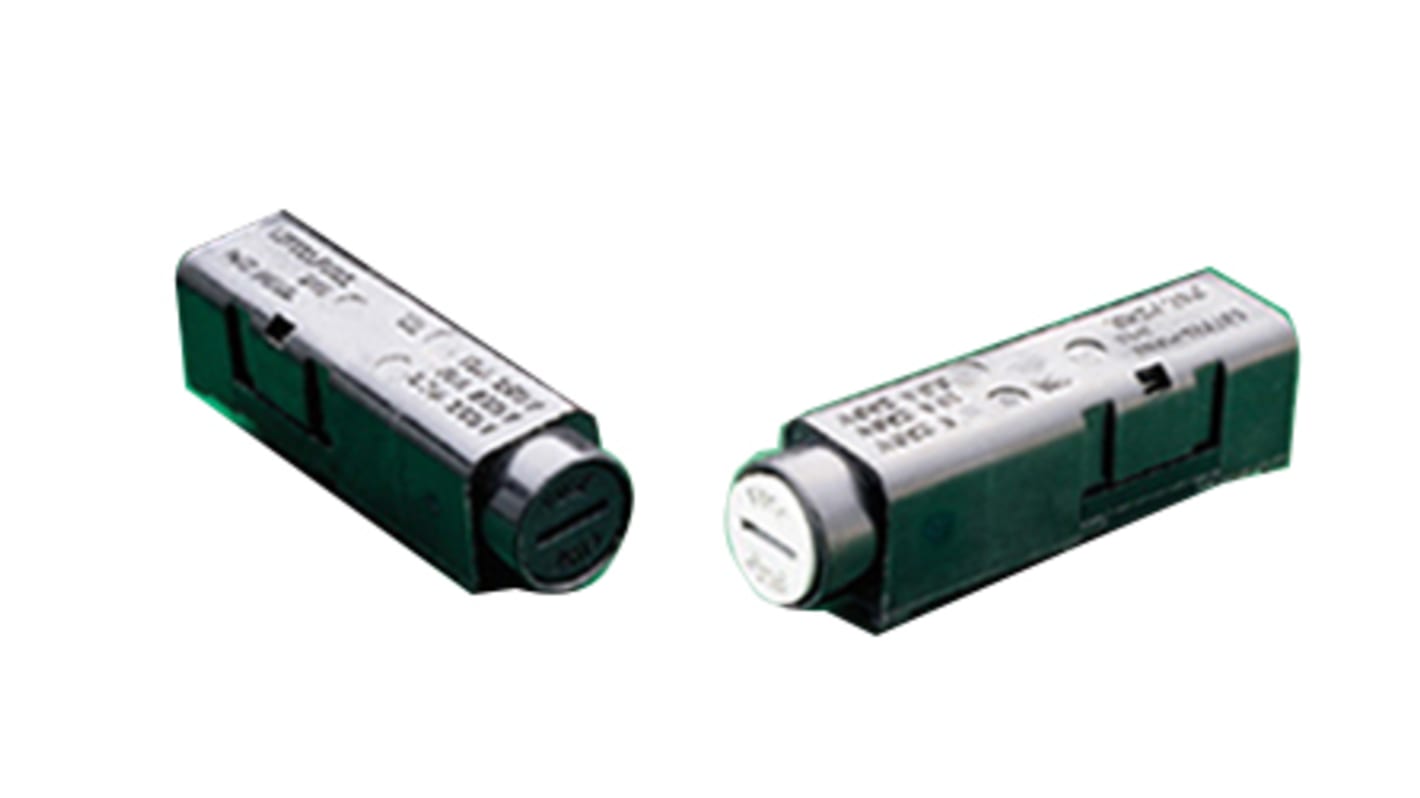

Littelfuse 20A Panel Mount Fuse Holder for 3AG Fuse, 1P, 250V ac/dc
- RS Stock No.:
- 878-3851
- Mfr. Part No.:
- 03450101HX020
- Brand:
- Littelfuse
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 878-3851
- Mfr. Part No.:
- 03450101HX020
- Brand:
- Littelfuse
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Littelfuse | |
| Fuse Size | 3AG | |
| Current Rating | 20A | |
| Voltage Rating | 250V ac/dc | |
| Number of Poles | 1 | |
| Compatible Fuse Diameter | 5mm | |
| Compatible Fuse Length | 32mm | |
| Series | 345 | |
| Standards Met | CSA Certified, cULus Listed, RoHS Compliant, UL94 V-0, VDE | |
| Contact Material | Tin Plated Brass | |
| Terminal Type | Quick Connect | |
| Cap Style | Slotted | |
Select all | ||
|---|---|---|
Brand Littelfuse | ||
Fuse Size 3AG | ||
Current Rating 20A | ||
Voltage Rating 250V ac/dc | ||
Number of Poles 1 | ||
Compatible Fuse Diameter 5mm | ||
Compatible Fuse Length 32mm | ||
Series 345 | ||
Standards Met CSA Certified, cULus Listed, RoHS Compliant, UL94 V-0, VDE | ||
Contact Material Tin Plated Brass | ||
Terminal Type Quick Connect | ||
Cap Style Slotted | ||
RoHS Status: Not Applicable
- COO (Country of Origin):
- MX
Littelfuse 345 Series Panel Mount Fuse Holder
Professional range of Littelfuse panel mount fuse holders from the 345 series.
Screwdriver release
Through Hole
Grey
Through Hole
Grey
Panel Mounting
CATEGORIES OF PROTECTION AGAINST ELECTRIC SHOCK,PC1: No integral protection against electric shock. If required, designers must provide additional protection against electric shock on equipment.,PC2: With integral protection against electric shock. Fuse-holders shall have live parts inaccessible to IEC529 standard test finger, when fully assembled, without fuse carrier or fuse in place and when fuse carrier, with fuse is being inserted or withdrawn.,PC3: With integral protection against electric shock. Fuse-holders shall have live parts inaccessible to IEC529 1mm diameter rigid test wire when fully assembled, without fuse carrier or fuse in place and when fuse carrier, with fuse is being inserted or withdrawn.
