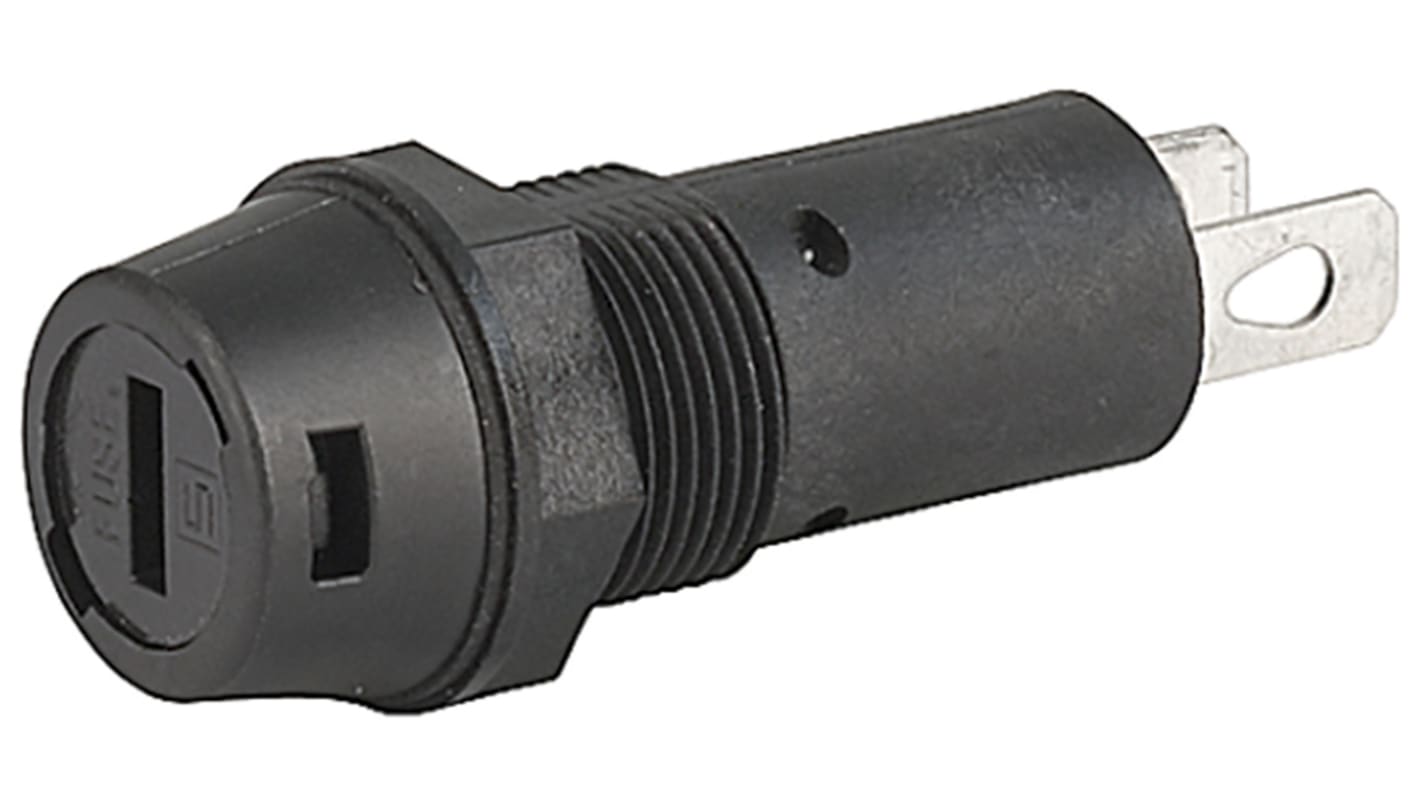

Schurter 10A Panel Mount Fuse Holder for 5 x 20mm Fuse, 1P, 400V ac
- RS Stock No.:
- 867-4362
- Mfr. Part No.:
- 3101.0210
- Brand:
- Schurter
Bulk discount available
Subtotal (1 pack of 100 units)*
£192.30
(exc. VAT)
£230.80
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 1,600 unit(s) ready to ship
- Plus 500 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 100 - 100 | £1.923 | £192.30 |
| 200 - 400 | £1.635 | £163.50 |
| 500 + | £1.577 | £157.70 |
*price indicative
- RS Stock No.:
- 867-4362
- Mfr. Part No.:
- 3101.0210
- Brand:
- Schurter
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Schurter | |
| Fuse Holder Type | Panel Mount | |
| Fuse Size | 5 x 20mm | |
| Current Rating | 10 A, 16A | |
| Voltage Rating | 400V ac | |
| Number of Poles | 1P | |
| Includes Indicator | No | |
| Terminal Type | Quick Connect | |
| Compatible Fuse Length | 20mm | |
| Contact Material | Tin Plated Copper Alloy | |
| Protection Category | PC2 | |
| Compatible Fuse Sizes | Mini | |
| International Protection Rating | IP40 | |
| Compatible Fuse Diameter | 5mm | |
| Cap Style | Slotted | |
| Series | FPG1 | |
| Standards Met | cULus Recognised, IEC, RoHS Compliant, VDE | |
Select all | ||
|---|---|---|
Brand Schurter | ||
Fuse Holder Type Panel Mount | ||
Fuse Size 5 x 20mm | ||
Current Rating 10 A, 16A | ||
Voltage Rating 400V ac | ||
Number of Poles 1P | ||
Includes Indicator No | ||
Terminal Type Quick Connect | ||
Compatible Fuse Length 20mm | ||
Contact Material Tin Plated Copper Alloy | ||
Protection Category PC2 | ||
Compatible Fuse Sizes Mini | ||
International Protection Rating IP40 | ||
Compatible Fuse Diameter 5mm | ||
Cap Style Slotted | ||
Series FPG1 | ||
Standards Met cULus Recognised, IEC, RoHS Compliant, VDE | ||
- COO (Country of Origin):
- CH
Schurter 5x20mm Fuseholders – FPG Series
Schurter FPG series fuseholders are a robust and dependable solution to a range of fuse requirements. Available with either a slotted or fingergrip plug, the Schurter FPG fuseholder series offers increased versatility of choice. Applications include industrial electronics, household appliances and medical equipment.
Terminals: 4.8x0.5mm for quick connector or soldering - depending on model
Protection: PC2
Sealed from the rear
Thermoplastic body
Tin-plated brass contacts
Protection: PC2
Sealed from the rear
Thermoplastic body
Tin-plated brass contacts
Approvals
UL & CSA (16A/250V), VDE & SEMKO (10/250V)
Panel Mounting
CATEGORIES OF PROTECTION AGAINST ELECTRIC SHOCK,PC1: No integral protection against electric shock. If required, designers must provide additional protection against electric shock on equipment.,PC2: With integral protection against electric shock. Fuse-holders shall have live parts inaccessible to IEC529 standard test finger, when fully assembled, without fuse carrier or fuse in place and when fuse carrier, with fuse is being inserted or withdrawn.,PC3: With integral protection against electric shock. Fuse-holders shall have live parts inaccessible to IEC529 1mm diameter rigid test wire when fully assembled, without fuse carrier or fuse in place and when fuse carrier, with fuse is being inserted or withdrawn.
