Eaton 16A Panel Mount Fuse Holder for 5 x 20mm Fuse, 1P, 250V ac

View all Fuse Holders
Bulk discount available

Subtotal (1 unit)*

£8.75

(exc. VAT)

£10.50

(inc. VAT)

Add to Basket
Select or type quantity
Limited stock
  • 16 left, ready to ship
  • Plus 55 left, ready to ship from another location
  • Plus 99,999,983 left, shipping from 12 March 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 - 9£8.75
10 - 24£8.02
25 - 49£7.71
50 +£7.44

*price indicative

RS Stock No.:
852-6939
Mfr. Part No.:
HTB-38M-R
Brand:
Eaton
Find similar products by selecting one or more attributes.
Select all

Brand

Eaton

Fuse Holder Type

Panel Mount

Fuse Size

5 x 20mm

Current Rating

16A

Voltage Rating

250V ac

Number of Poles

1P

Includes Indicator

No

Cap Style

Slotted

Contact Material

Tin Plated Brass

Compatible Fuse Length

20mm

Standards Met

CE, CSA Certified, RoHS Compliant, SEMKO Certification, UL Recognized, VDE Certified

Terminal Type

Quick Connect

Compatible Fuse Diameter

5mm

COO (Country of Origin):
MX

Cooper Bussmann Fuse Holder - HTB Series


Professional range of Cooper Bussmann panel mounted fuse holders from the HTB series.

Panel Monut

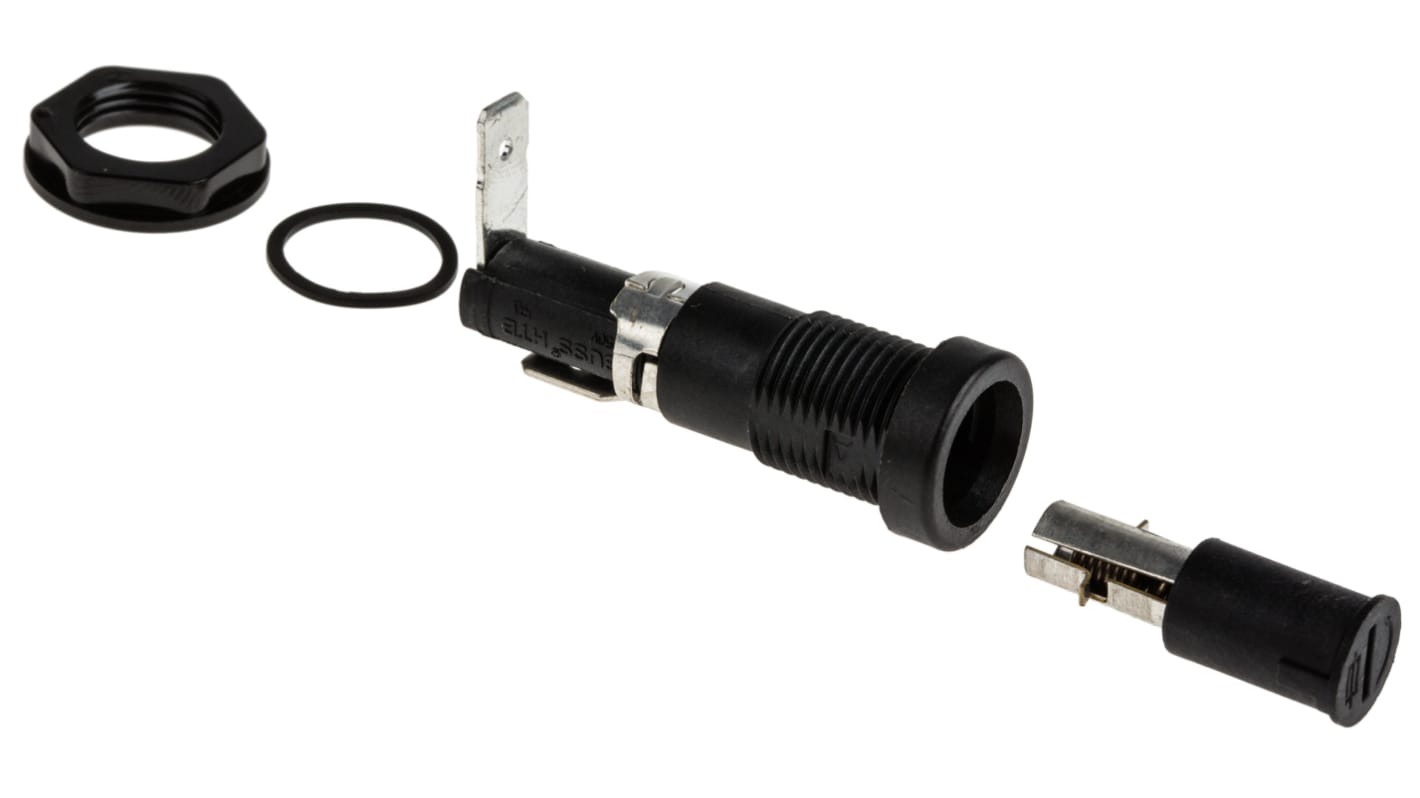

Eaton Panel Mount Fuse Holder, 16A Current Rating, Single-Pole Configuration HTB-38M-R


Use this fuse holder from Eaton for the safe mounting of electrical fuses. The unit links directly to the equipment you want to protect and is designed to accommodate standard 5mm x 20mm fuses. It ensures that there's a strong current path for the fuse and that voltage doesn't leak to other nearby components. You can install the holder quickly and easily with a screwdriver. Thanks to a 16A current rating, you can use this unit with high-current-consuming devices such as automatic voltage regulators and UPS units.

• Wide operating temperature range of -55°C to +85°C for use in demanding conditions
• Light weight of 8.5g means it won't put strain on your equipment and is easy to handle during installation
• 250V AC voltage rating for use with low-voltage applications

What's the difference between a fuse holder and a fuse block?


A fuse holder is designed to hold a single fuse, while a fuse block is a larger device that can handle up to 12 fuses at the same time.

Note

Eaton formerly known as Bussmann


Panel Mounting


CATEGORIES OF PROTECTION AGAINST ELECTRIC SHOCK,PC1: No integral protection against electric shock. If required, designers must provide additional protection against electric shock on equipment.,PC2: With integral protection against electric shock. Fuse-holders shall have live parts inaccessible to IEC529 standard test finger, when fully assembled, without fuse carrier or fuse in place and when fuse carrier, with fuse is being inserted or withdrawn.,PC3: With integral protection against electric shock. Fuse-holders shall have live parts inaccessible to IEC529 1mm diameter rigid test wire when fully assembled, without fuse carrier or fuse in place and when fuse carrier, with fuse is being inserted or withdrawn.
