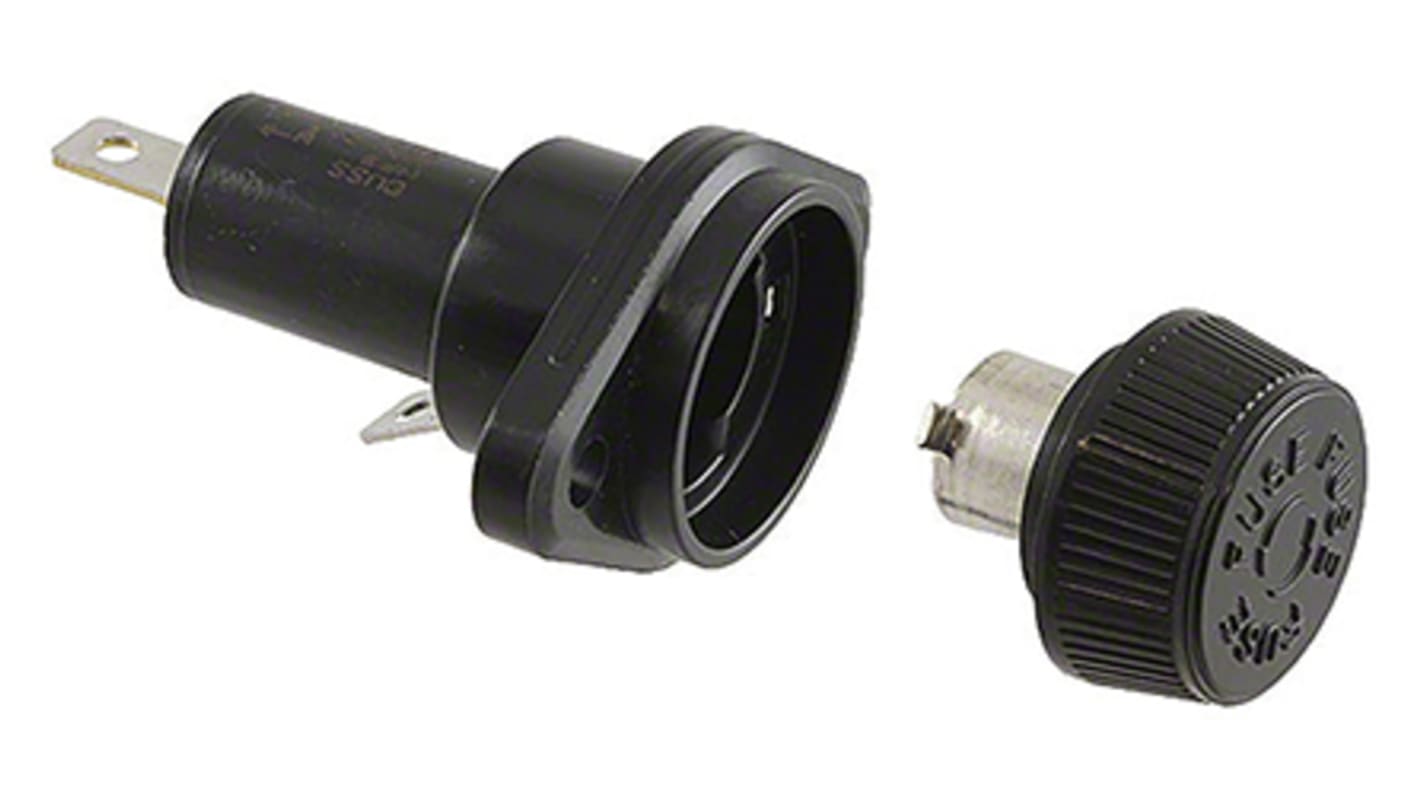

Eaton 30A Panel Mount Fuse Holder for 10 x 38mm Fuse, 1P, 600V ac
- RS Stock No.:
- 849-5664
- Mfr. Part No.:
- HPS
- Brand:
- Eaton
Unavailable
RS will no longer stock this product.
- RS Stock No.:
- 849-5664
- Mfr. Part No.:
- HPS
- Brand:
- Eaton
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Eaton | |
Fuse Holder Type | Panel Mount | |
Fuse Size | 10 x 38mm | |
Current Rating | 30A | |
Voltage Rating | 600V ac | |
Number of Poles | 1P | |
Includes Indicator | No | |
Cap Style | Manual | |
Standards Met | CE | |
Terminal Type | Quick Connect | |
Compatible Fuse Diameter | 10mm | |
Compatible Fuse Length | 38mm | |
Select all | ||
---|---|---|
Brand Eaton | ||
Fuse Holder Type Panel Mount | ||
Fuse Size 10 x 38mm | ||
Current Rating 30A | ||
Voltage Rating 600V ac | ||
Number of Poles 1P | ||
Includes Indicator No | ||
Cap Style Manual | ||
Standards Met CE | ||
Terminal Type Quick Connect | ||
Compatible Fuse Diameter 10mm | ||
Compatible Fuse Length 38mm | ||
Non Compliant
Eaton Panel Mount Fuse Holder, Manual Cap, Quick-Connect Terminals - HPS
Help put a stop to damage caused by overcurrent with this panel mount fuse holder from Eaton. It features highly conductive terminals that allow current to flow through the fuse and complete an attached circuit. If an overcurrent occurs and the fuse blows to shut down the circuit, simply open up the holder, replace the fuse and you're back in business, without the need for disruptive downtime. The holder's panel mounting style makes installation simple and ensures a secure fit, even in vibrating systems. You'll commonly find holders like this in automation equipment, production lines and home electronics projects.
Features & Benefits
• Manual cap allows for easy replacement of fuse without the need for tools
• Suitable for standard fuse sizes of 10 (diameter) x 38mm (length), for wide compatibility
• Quick-connect terminal type for fast installation and removal
• Voltage rating of 600V AC suitable for high-power applications
• 30A current rating to support heavy loads
• Suitable for standard fuse sizes of 10 (diameter) x 38mm (length), for wide compatibility
• Quick-connect terminal type for fast installation and removal
• Voltage rating of 600V AC suitable for high-power applications
• 30A current rating to support heavy loads
What type of knob does this fuse holder have?
It has a bayonet-style knob that's easy to twist on or off and achieves a tight fit.
Note
Eaton formerly known as Bussmann
Panel Mounting
CATEGORIES OF PROTECTION AGAINST ELECTRIC SHOCK,PC1: No integral protection against electric shock. If required, designers must provide additional protection against electric shock on equipment.,PC2: With integral protection against electric shock. Fuse-holders shall have live parts inaccessible to IEC529 standard test finger, when fully assembled, without fuse carrier or fuse in place and when fuse carrier, with fuse is being inserted or withdrawn.,PC3: With integral protection against electric shock. Fuse-holders shall have live parts inaccessible to IEC529 1mm diameter rigid test wire when fully assembled, without fuse carrier or fuse in place and when fuse carrier, with fuse is being inserted or withdrawn.
