Finder 6A Rail Mount Fuse Holder for 5 x 20mm Fuse, 1P, 250V ac
- RS Stock No.:
- 776-1544
- Mfr. Part No.:
- 093.63
- Brand:
- Finder
Bulk discount available
Subtotal (1 unit)*
£4.42
(exc. VAT)
£5.30
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 170 unit(s) ready to ship
- Plus 1 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 4 | £4.42 |
5 - 9 | £4.28 |
10 + | £4.05 |
*price indicative
- RS Stock No.:
- 776-1544
- Mfr. Part No.:
- 093.63
- Brand:
- Finder
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Finder | |
Fuse Holder Type | Rail Mount | |
Fuse Size | 5 x 20mm | |
Current Rating | 6A | |
Voltage Rating | 250V ac | |
Number of Poles | 1P | |
Includes Indicator | Yes | |
Rail Type | DIN 35 mm | |
Terminal Type | Quick Connect | |
Series | 39 Series | |
Select all | ||
---|---|---|
Brand Finder | ||
Fuse Holder Type Rail Mount | ||
Fuse Size 5 x 20mm | ||
Current Rating 6A | ||
Voltage Rating 250V ac | ||
Number of Poles 1P | ||
Includes Indicator Yes | ||
Rail Type DIN 35 mm | ||
Terminal Type Quick Connect | ||
Series 39 Series | ||
- COO (Country of Origin):
- IT

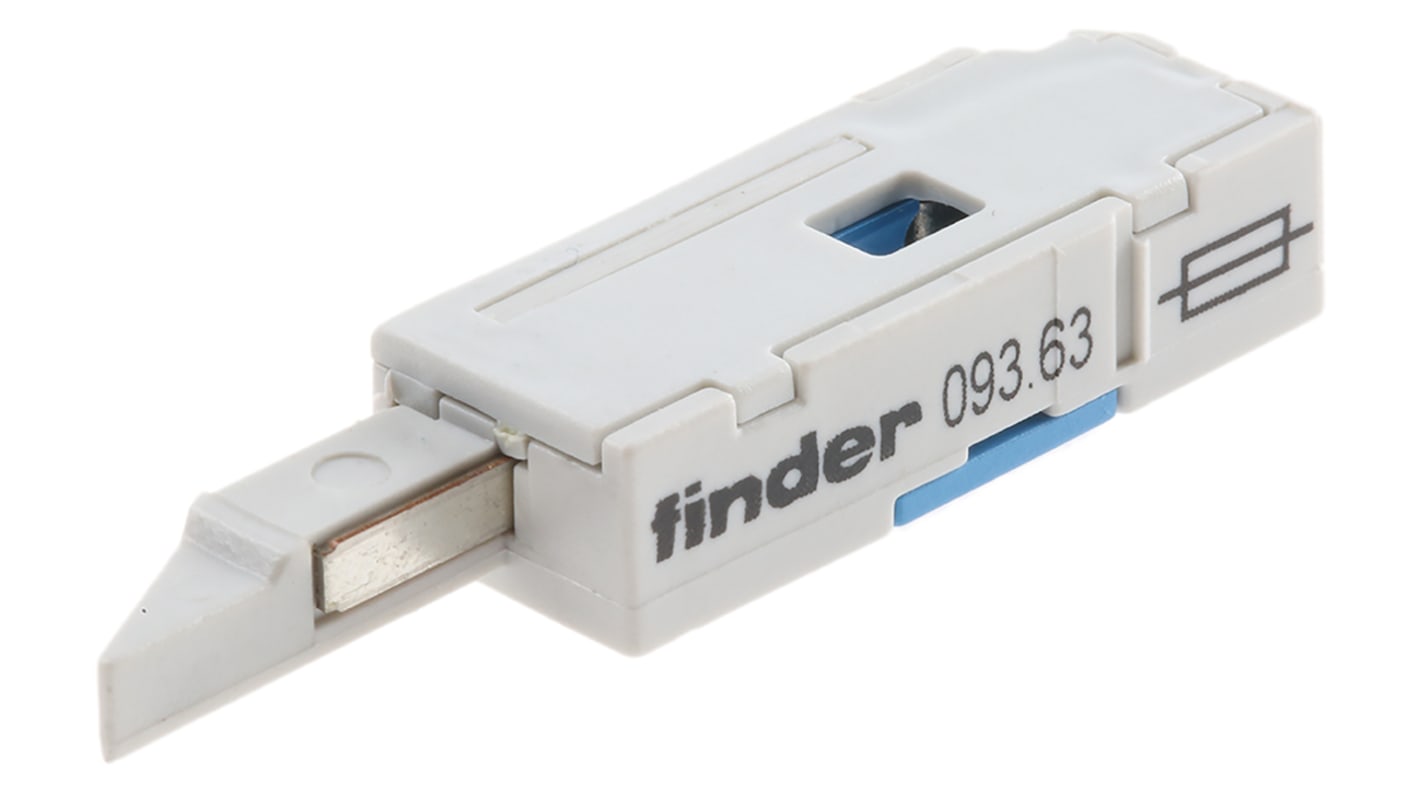

Finder 39 series Rail Mount Fuse Holder, 6A Current Rating, 250V AC Voltage - 093.63
This rail mount fuse holder is designed to accommodate 5x20mm fuses. It features a robust single pole configuration and is rated for a current of 6A and a voltage of 250V AC. This quick connect fuse holder simplifies wiring and enhances operational efficiency in various applications.
Features & Benefits
• Designed for DIN 35mm rail mounting for easy installation
• Offers a built-in indicator for monitoring fuse status
• Quick connect terminals streamline connection processes
• Compact design ensures space efficiency in control panels
• Suitable for a wide range of use in electrical systems
• Compatible with standard 5x20mm fuses for versatility
• Offers a built-in indicator for monitoring fuse status
• Quick connect terminals streamline connection processes
• Compact design ensures space efficiency in control panels
• Suitable for a wide range of use in electrical systems
• Compatible with standard 5x20mm fuses for versatility
Applications
• Ideal for use in automation control panels
• Utilised in labelling machines for electrical safety
• Employed in bottling plants for circuit protection
• Functions effectively within carousel warehouses and traffic light controls
• Utilised in labelling machines for electrical safety
• Employed in bottling plants for circuit protection
• Functions effectively within carousel warehouses and traffic light controls
What gauge of wire can be used with this holder?
This fuse holder can accommodate solid and stranded wires, with a maximum size of 2.5mm² for both types, ensuring flexibility for various installation needs.
How does the built-in indicator enhance safety and functionality?
The fuse status indicator allows operators to quickly assess whether the fuse is intact or blown, enabling timely maintenance and reducing downtime in operations.
What is the significance of the quick connect terminals?
The quick connect terminals facilitate faster wiring, reducing installation time, and minimising potential errors during setup in diverse electrical applications.
Can this holder be used in high-temperature environments?
Designed to operate within a wide ambient temperature range, it functions reliably between -40°C and +70°C, making it suitable for challenging environments.
