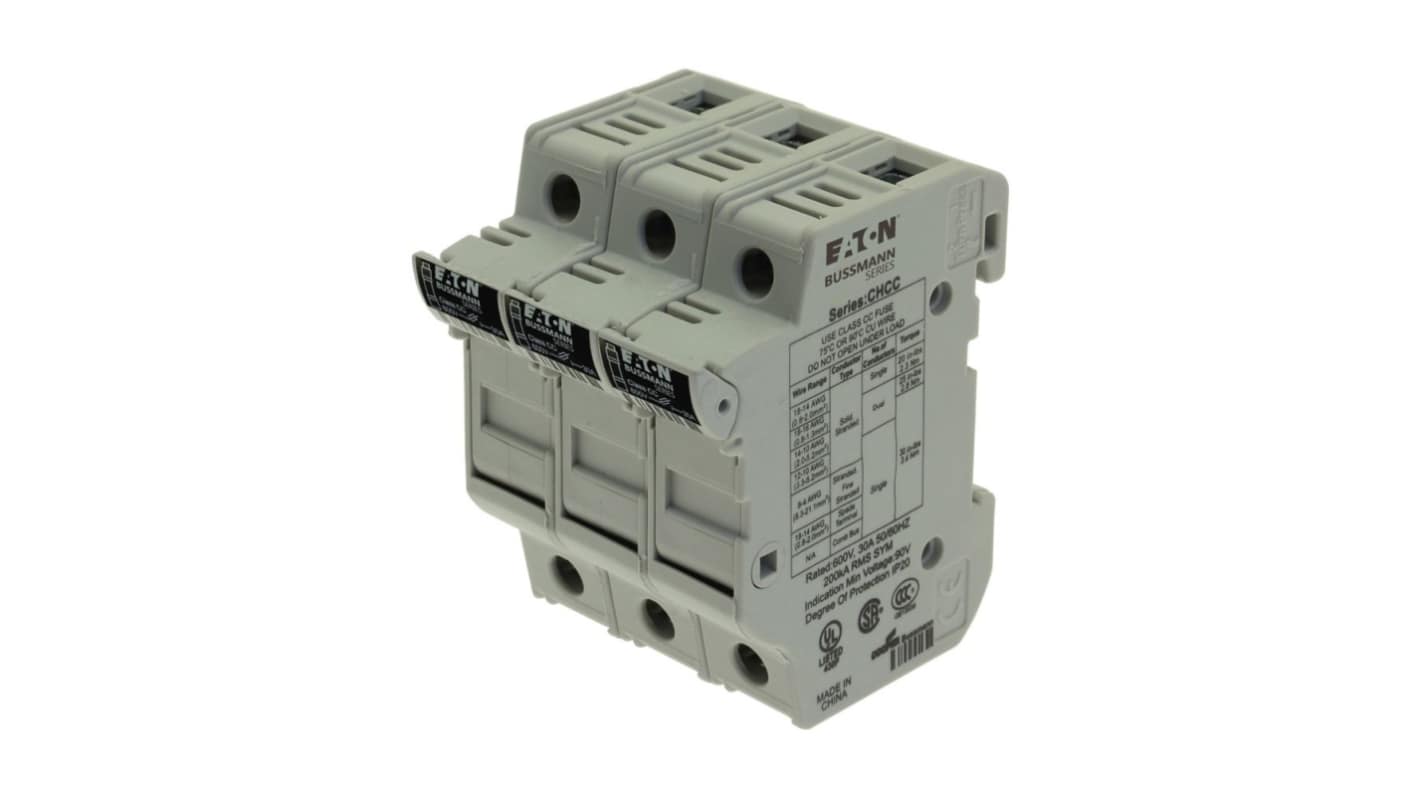

Eaton 30A Rail Mount Fuse Holder for 10 x 38mm Fuse, 3P, 600V ac
- RS Stock No.:
- 182-1796
- Mfr. Part No.:
- CHCC3DU
- Brand:
- Eaton
Bulk discount available
Subtotal (1 unit)*
£22.05
(exc. VAT)
£26.46
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 5 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 1 | £22.05 |
| 2 + | £20.86 |
*price indicative
- RS Stock No.:
- 182-1796
- Mfr. Part No.:
- CHCC3DU
- Brand:
- Eaton
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Eaton | |
| Fuse Holder Type | Rail Mount | |
| Fuse Size | 10 x 38mm | |
| Current Rating | 30A | |
| Voltage Rating | 600V ac | |
| Number of Poles | 3P | |
| Rail Type | DIN 35 mm | |
| Series | CHCC | |
| Terminal Type | Screw | |
Select all | ||
|---|---|---|
Brand Eaton | ||
Fuse Holder Type Rail Mount | ||
Fuse Size 10 x 38mm | ||
Current Rating 30A | ||
Voltage Rating 600V ac | ||
Number of Poles 3P | ||
Rail Type DIN 35 mm | ||
Series CHCC | ||
Terminal Type Screw | ||
- COO (Country of Origin):
- CN
Eaton CHCC Series Rail Mount Fuse Holder, 10 x 38 mm Fuse size, 30A Current Rating - CHCC3DU
This rail mount fuse holder is designed for secure installation on a DIN rail, offering a robust solution for managing electrical fuses. With dimensions of 69mm in length, 74mm in height, and 83mm in width, it accommodates standard 10 x 38 mm Class CC fuses. The holder is rated for 30A and can operate at voltages up to 600V DC, making it suitable for various electrical applications.
Features & Benefits
• Three-pole design facilitates efficient circuit protection
• Rated for 30A current ensures reliable performance
• Supports voltages up to 600V DC for versatile use
• Screw terminal design allows for secure connections
• Rated for 30A current ensures reliable performance
• Supports voltages up to 600V DC for versatile use
• Screw terminal design allows for secure connections
Applications
• Ideal for use in automation and control systems
• Suitable for protecting electrical circuits in machinery
• Utilised in commercial and industrial electrical setups
• Works effectively in electrical distribution boards
• Suitable for protecting electrical circuits in machinery
• Utilised in commercial and industrial electrical setups
• Works effectively in electrical distribution boards
What are the operating temperature limits for safe use?
The device operates effectively within a temperature range of -20°C to 120°C, ensuring reliability in various environments.
What type of fuses can be installed in this holder?
It is designed for use with KTK-R, LP-CC, and FNQ-R Class CC fuses, providing flexibility in fuse selection for specific applications.
How does the three-pole configuration benefit circuit protection?
The three-pole configuration allows simultaneous protection for three separate circuits, enhancing safety and reliability in multi-phase systems.
Note
Eaton formerly known as Bussmann
