Eaton 20A Rail Mount Fuse Holder, 1P, 690V ac
- RS Stock No.:
- 182-1452
- Distrelec Article No.:
- 303-96-458
- Mfr. Part No.:
- RS20HGN
- Brand:
- Eaton
Subtotal (1 box of 10 units)*
£252.62
(exc. VAT)
£303.14
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 100 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Box* |
---|---|---|
10 + | £25.262 | £252.62 |
*price indicative
- RS Stock No.:
- 182-1452
- Distrelec Article No.:
- 303-96-458
- Mfr. Part No.:
- RS20HGN
- Brand:
- Eaton
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Eaton | |
Fuse Holder Type | Rail Mount | |
Current Rating | 20A | |
Voltage Rating | 690V ac | |
Number of Poles | 1P | |
Includes Indicator | No | |
Rail Type | DIN 35 mm | |
Terminal Type | Front Connected | |
Gauge Piece Colour | Green | |
International Protection Rating | IP20 | |
Select all | ||
---|---|---|
Brand Eaton | ||
Fuse Holder Type Rail Mount | ||
Current Rating 20A | ||
Voltage Rating 690V ac | ||
Number of Poles 1P | ||
Includes Indicator No | ||
Rail Type DIN 35 mm | ||
Terminal Type Front Connected | ||
Gauge Piece Colour Green | ||
International Protection Rating IP20 | ||
- COO (Country of Origin):
- HU

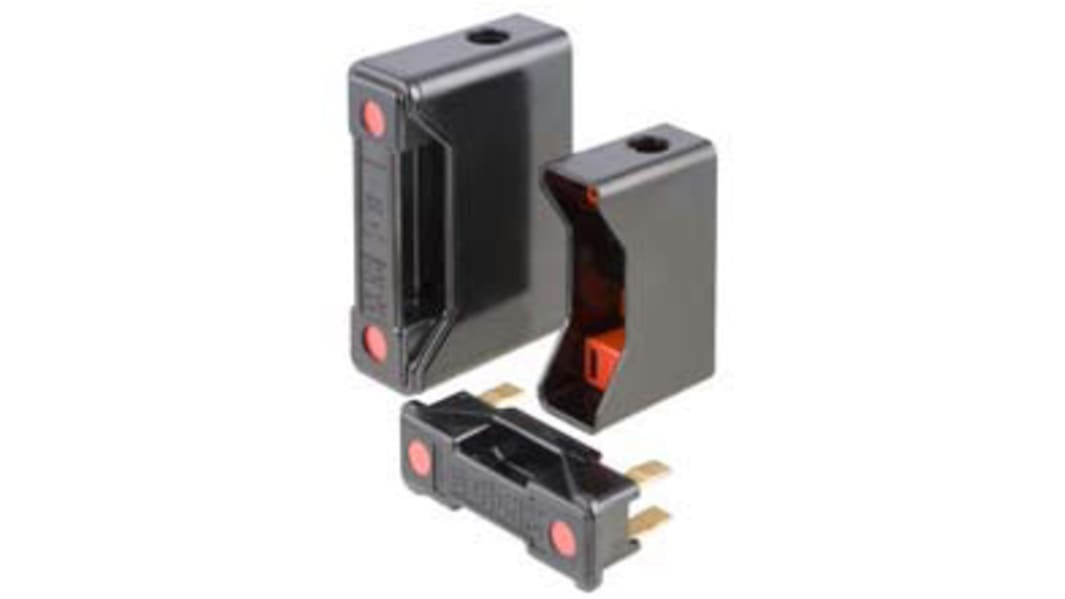

Eaton Rail Mount Fuse Holder, 20A Current Rating, 690V AC Voltage - RS20HGN
This rail mount fuse holder is designed to facilitate secure and efficient fuse connections in various electrical applications. It offers a compact solution with dimensions of 55mm in length, 79mm in height, and 27mm in width. Capable of handling up to 20 amperes and designed for both AC (690V) and DC (460V) applications, this front-connected fuse holder is ideal for use with A1 fuses and complies with BS88 standards.
Features & Benefits
• Single-pole design allows for simplified installation
• Front connected for easy access during maintenance
• Rated for 20A ensures compatibility with a range of usage
• IP20 rating protects against solid objects more than 12.5mm
• Complies with BS88 standards for enhanced reliability
• Front connected for easy access during maintenance
• Rated for 20A ensures compatibility with a range of usage
• IP20 rating protects against solid objects more than 12.5mm
• Complies with BS88 standards for enhanced reliability
Applications
• Used in automation systems requiring A1 fuse protection
• Ideal for electrical panels and control systems
• Effectively applied in low-voltage distribution networks
• Suitable for various mechanical equipment requiring fuse integration
• Ideal for electrical panels and control systems
• Effectively applied in low-voltage distribution networks
• Suitable for various mechanical equipment requiring fuse integration
What is the significance of the front-connected design?
The front-connected design simplifies installation and maintenance, allowing technicians to quickly access the fuse holder for servicing without removing the entire panel. It makes identifying and replacing blown fuses more efficient.
What type of fuse compatibility should I expect?
This holder is compatible with A1 fuse sizes specifically, ensuring a secure fit for maximum reliability and performance during operation. Always confirm compatibility with your specific fuse choice.
Can it be used in harsh environments?
While designed for indoor applications, it is important to consider the environment. The IP20 rating does not protect against moisture or dust, making it unsuitable for wet or excessively dusty conditions. Proper enclosure and installation are advised.
Note
Eaton formerly known as Bussmann
