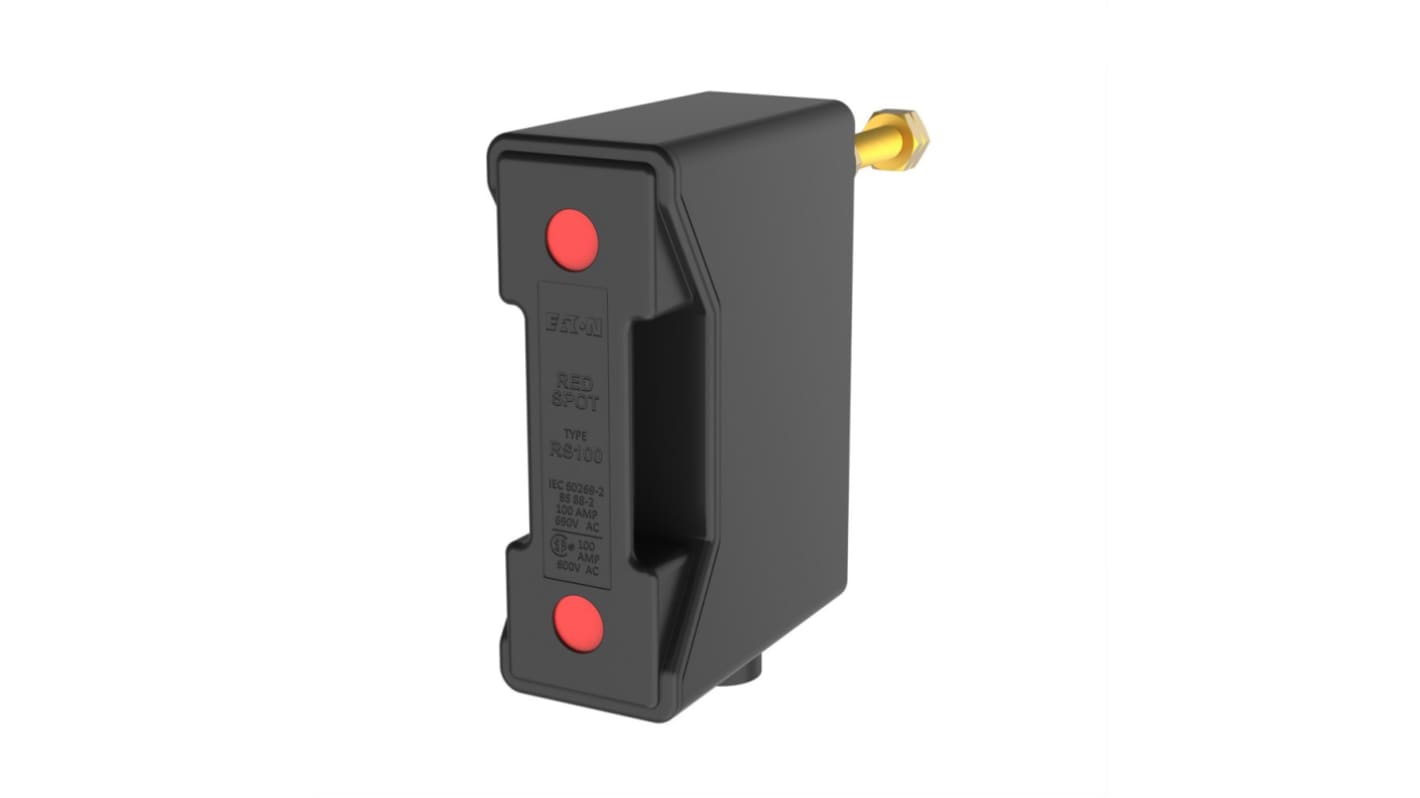

Eaton 100A Rail Mount Fuse Holder, 1P, 690V ac

View all Fuse Holders

Subtotal (1 box of 5 units)*

£425.92

(exc. VAT)

£511.105

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • Plus 15 unit(s) shipping from 20 October 2025
  • Plus 10 unit(s) shipping from 09 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
Per Box*
5 +£85.184£425.92

*price indicative

RS Stock No.:
182-1444
Mfr. Part No.:
RS100PH
Brand:
Eaton
Find similar products by selecting one or more attributes.
Select all

Brand

Eaton

Fuse Holder Type

Rail Mount

Current Rating

100A

Voltage Rating

690V ac

Number of Poles

1P

Includes Indicator

No

Rail Type

DIN 35 mm

International Protection Rating

IP20

Series

Eaton Bussmann

Terminal Type

Front Connected/Back Stud Connected

Compatible Fuse Sizes

A4

COO (Country of Origin):
HU

Eaton Rail Mount Fuse Holder, 100A Current Rating, 690V AC Voltage Rating - RS100PH


This rail mount fuse holder is designed for low voltage applications, providing reliable functionality with a current rating of 100A and voltage ratings of 690V AC and 460V DC. With dimensions of 187mm in length, 139mm in height, and 50mm in width, it is optimally designed for DIN rail installation, ensuring compatibility with a variety of fuse sizes including the A4 type.

Features & Benefits


• Designed for single-pole applications, ensuring simplified installation
• Front and back stud connected for flexible wiring options
• Black casing for durability and minimal aesthetic impact
• Supports TCP and CEO fuse-links for enhanced compatibility

Applications


• Used with A4 fuse links in electrical distribution systems
• Suitable for automation and electrical control panels
• Ideal for industrial settings requiring effective fuse protection
• Compatible with DIN rails in mechanical equipment enclosures

What type of electrical connections can be utilised with this fuse holder?


The holder supports front connected and back stud connected wiring, allowing versatile installation options suitable for various configurations.

How does the IP20 rating influence its usability in different environments?


The IP20 rating implies that it offers protection against solid objects larger than 12mm, making it suitable for indoor use, although care should be taken in damp or outdoor environments.

Which standards must this fuse holder comply with for reliable performance?


It meets the IEC 60269-2 standard, ensuring that it adheres to safety and performance criteria established for fuse holders in electrical applications.

What are the advantages of using a single-pole design in this application?


The single-pole design simplifies installation and maintenance processes while providing adequate protection for circuits requiring straightforward operational setups.

Note

Eaton formerly known as Bussmann
