Wickmann 20 A Panel Mount Fuse Holder for 3AG/AB, 25 V
- RS Stock No.:
- 174-0277
- Mfr. Part No.:
- 03420004HXL
- Brand:
- Wickmann
Subtotal (1 box of 100 units)*
£180.20
(exc. VAT)
£216.20
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 10 September 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Box* |
|---|---|---|
| 100 + | £1.802 | £180.20 |
*price indicative
- RS Stock No.:
- 174-0277
- Mfr. Part No.:
- 03420004HXL
- Brand:
- Wickmann
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Wickmann | |
| Product Type | Panel Mount Fuse Holder | |
| Current Rating | 20 A | |
| Voltage | 25 V | |
| Body Material | Thermoplastic, Thermoset | |
| Compatible Fuse Size | 3AG/AB | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 85°C | |
| Standards/Approvals | RoHS, UL94 V-0, E14721, MIL-PRF-19207 | |
| Contact Material | Copper Alloy | |
| Cap Style | Fluted Knob, Knurled Knob | |
| Series | 342 | |
| Protection Category | Watertight (With O Ring Per Mil Prf 19207), Drip Proof (With Neoprene Washer) | |
| Select all | ||
|---|---|---|
Brand Wickmann | ||
Product Type Panel Mount Fuse Holder | ||
Current Rating 20 A | ||
Voltage 25 V | ||
Body Material Thermoplastic, Thermoset | ||
Compatible Fuse Size 3AG/AB | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 85°C | ||
Standards/Approvals RoHS, UL94 V-0, E14721, MIL-PRF-19207 | ||
Contact Material Copper Alloy | ||
Cap Style Fluted Knob, Knurled Knob | ||
Series 342 | ||
Protection Category Watertight (With O Ring Per Mil Prf 19207), Drip Proof (With Neoprene Washer) | ||
- COO (Country of Origin):
- CN

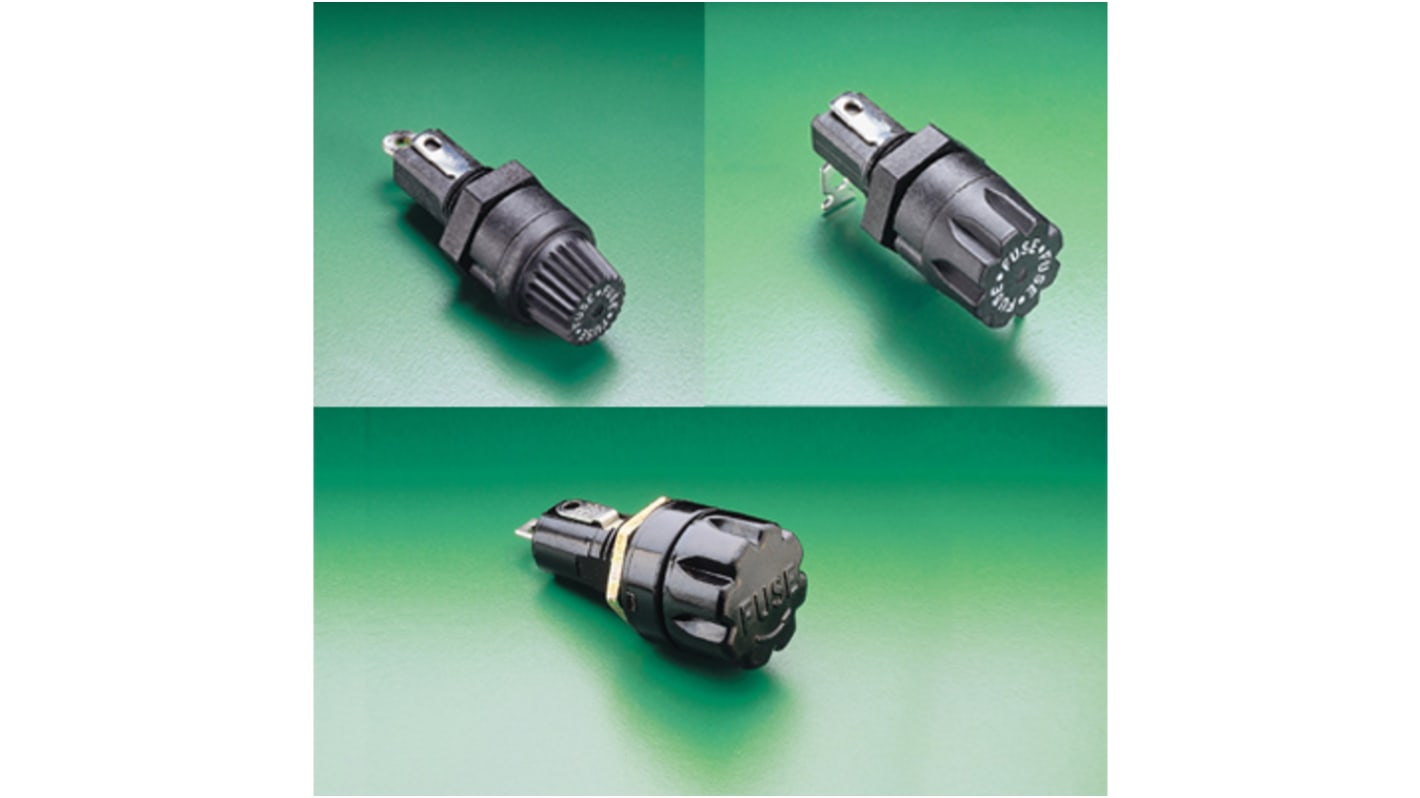

The Littlefuse Wickman 342 Series, traditional panel mount enclosed fuse holder for 3AG/AB fuses. It has rated current at 20A for any voltage up to 250V, right angle body Terminal and solder body Terminal connect. It is a general application product.
RoHS compliant
Black thermoplastic UL94 V-0 moulded parts
-40° C to + 85° C ambient temperature
Neoprene washer provides drip-proof protection on the front side of the panel
IP40 ingression protection rating
