- RS Stock No.:
- 876-7880
- Mfr. Part No.:
- 0853.9561
- Brand:
- Schurter
500 In stock - FREE next working day delivery available
Added
Price Each (In a Pack of 100)
£0.334
(exc. VAT)
£0.401
(inc. VAT)
Units | Per unit | Per Pack* |
100 + | £0.334 | £33.40 |
*price indicative |
- RS Stock No.:
- 876-7880
- Mfr. Part No.:
- 0853.9561
- Brand:
- Schurter
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- CH
Product Details

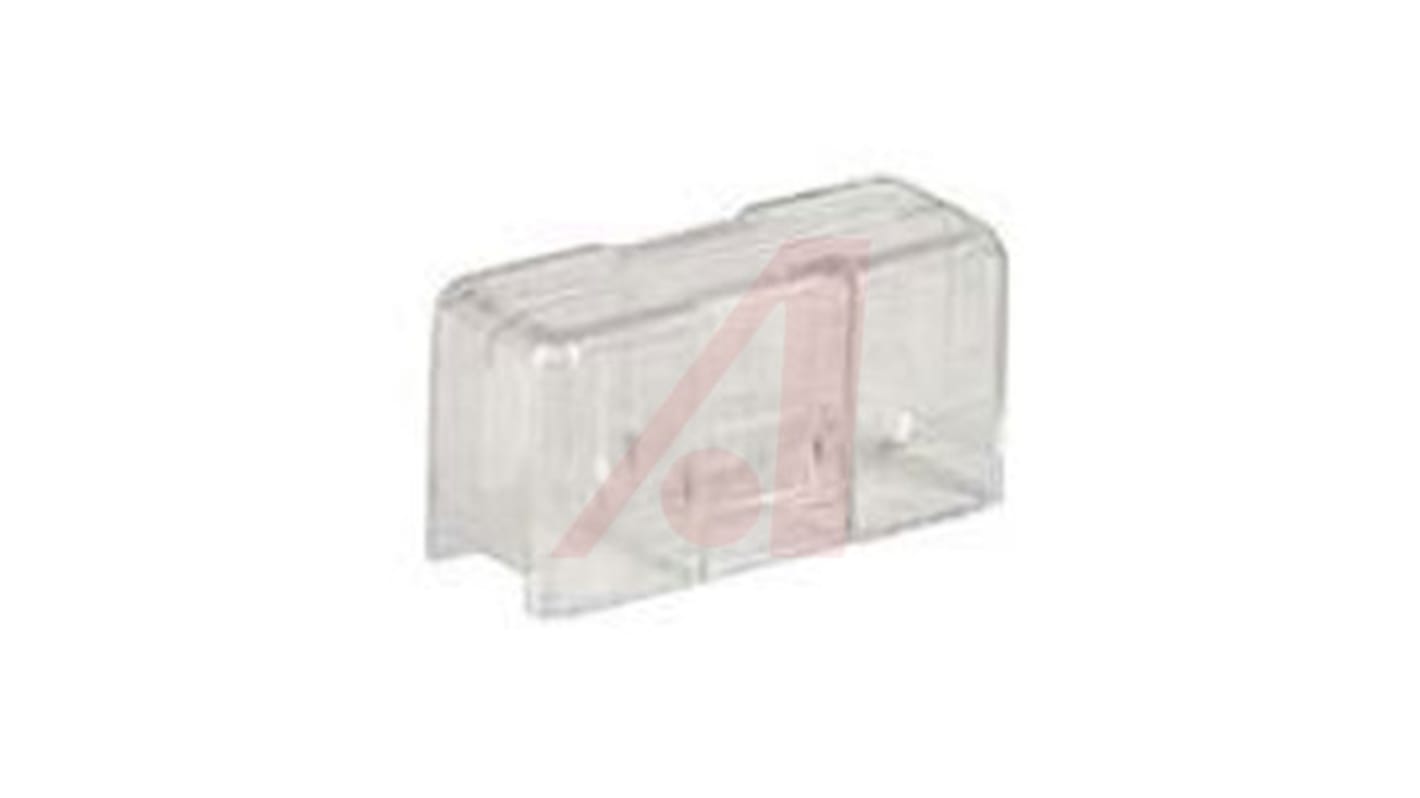

Schurter OGN-SMD Fuse Holders
Schurter OGN-SMD series are surface mount fuse holders for 5 x 20 mm cartridge fuses. The OGN-SMD series has a polyethylene terephthalate body with tin-plated copper alloy terminals that make this range suitable for industrial or domestic use.
For appliances in unattended use
Low profile fuse block with insulation walls
SMD mount
Suitable for reflow and vapour-phase soldering
Low profile fuse block with insulation walls
SMD mount
Suitable for reflow and vapour-phase soldering
Approvals
UL recognised component, CSA certified, VDE
PCB Mounting
Voltage Rating 250V.
Specifications
Attribute | Value |
---|---|
Series | 0853 |
Fuse Holder Type | PCB Mount |
Fuse Size | 5 x 20mm |
Width | 10mm |
Length | 26.2mm |
Height | 13.2mm |
Cover Material | Thermoplastic |
Standards Met | UL 94V-0 |
For Use With | Holder OG (Clip) 5x20, OG (Halter) 5x20, UH, UHB |
Dimensions | 26.2 x 10 x 13.2mm |
