Schneider Electric 100A 444x220mm Fuse Block, 230 - 690V

View all Fuse Blocks

Subtotal (1 unit)*

£489.83

(exc. VAT)

£587.80

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 1 unit(s) ready to ship
  • Plus 1 unit(s) ready to ship from another location
  • Plus 999,999,998 unit(s) shipping from 13 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 +£489.83

*price indicative

Better World

Our Better World range features products that make it easy for you to make a greener product choice you can trust. Click here to find out more.

RS Stock No.:
219-8933
Mfr. Part No.:
KSB100SE4
Brand:
Schneider Electric
Find similar products by selecting one or more attributes.
Select all

Brand

Schneider Electric

Fuse Size

444x220mm

Number of Fuses

3L+N+PE

Current Rating

100A

Voltage Rating

230 - 690V

Better World Product

Yes

Better World Verification

Green Premium

COO (Country of Origin):
IT

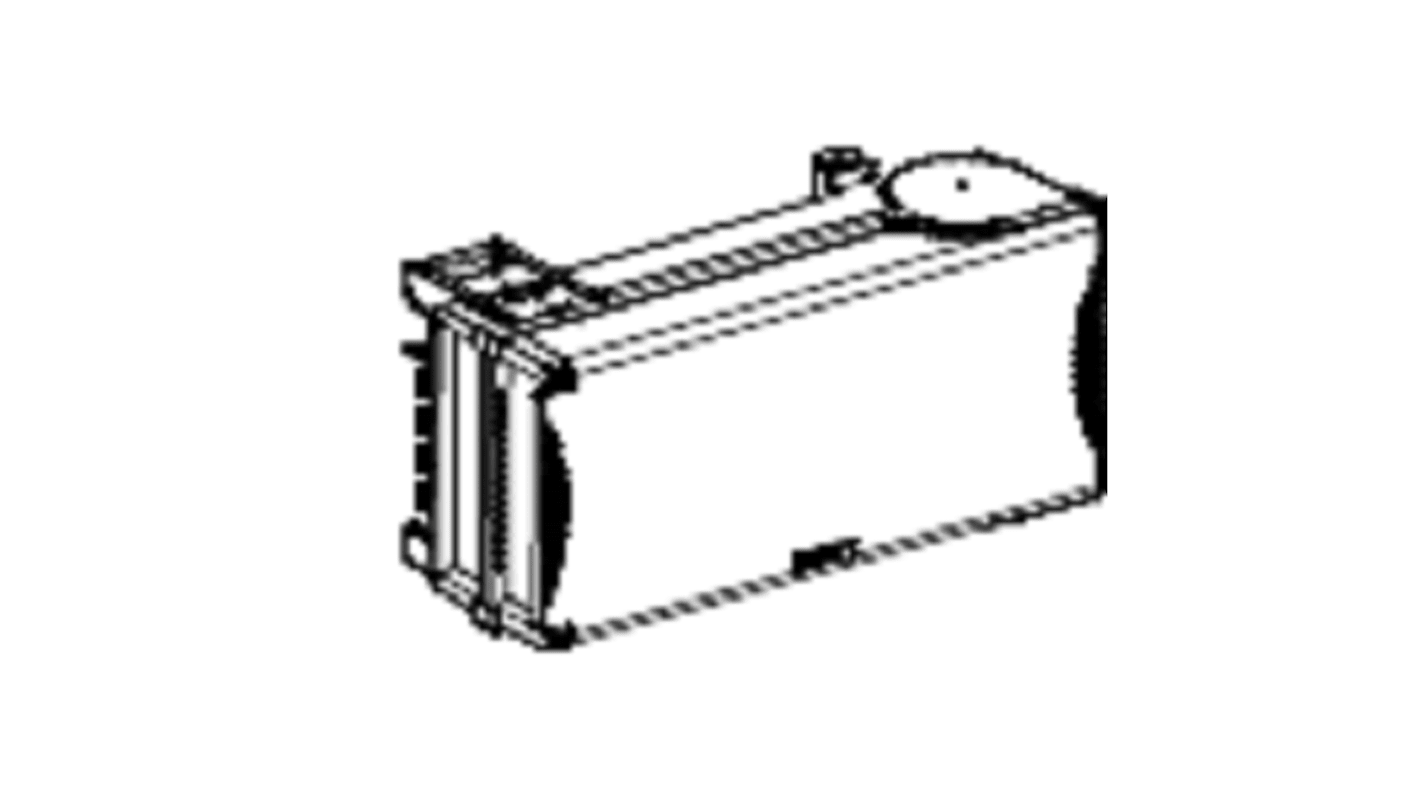

Schneider Electric Fuse Block, 100A Current Rating, 230 to 690V Voltage Rating - KSB100SE4


This fuse block is designed for reliable medium power distribution. It accommodates a range of blade fuse sizes and operates with a current rating of 100A at a voltage range of 230 to 690 V. Measuring 444mm in width, 220mm in height, and 128mm in depth, it is suitable for both plug-in and fixed polarity installations.

Features & Benefits


• Supports 3L+N+PE configuration for enhanced safety
• IP55 rating ensures protection from dust and water
• Compatible with Canalis KS and KT busbar trunking
• Equipped with a disconnection mode that facilitates easy maintenance

Applications


• Ideal for electrical installations in commercial buildings
• Suitable for medium power distribution in various mechanical sectors
• Utilised in environments requiring efficient electrical fuse solutions

What specific installation requirements should be observed?


Installation requires adherence to fixed polarity guidelines and should be compatible with either Canalis KS or KT busbar trunking systems. It is essential to ensure that the electrical connections accommodate ISO63 cable lugs for flexibility and rigidity.

How does the fuse block contribute to safety in high voltage applications?


The device features a high insulation rating of 690V, combined with an impulse withstand voltage of 6.8 kV, ensuring safe operation. Its IP55 rating protects against dust and water ingress, enhancing reliability in harsh environments.

What steps should be taken for fuse replacement?


Fuse replacement involves opening the door from the right-hand side to disconnect the unit safely. It is advisable to ensure that power is turned off before proceeding with any maintenance or replacement of the fuses, which must be ordered separately.
