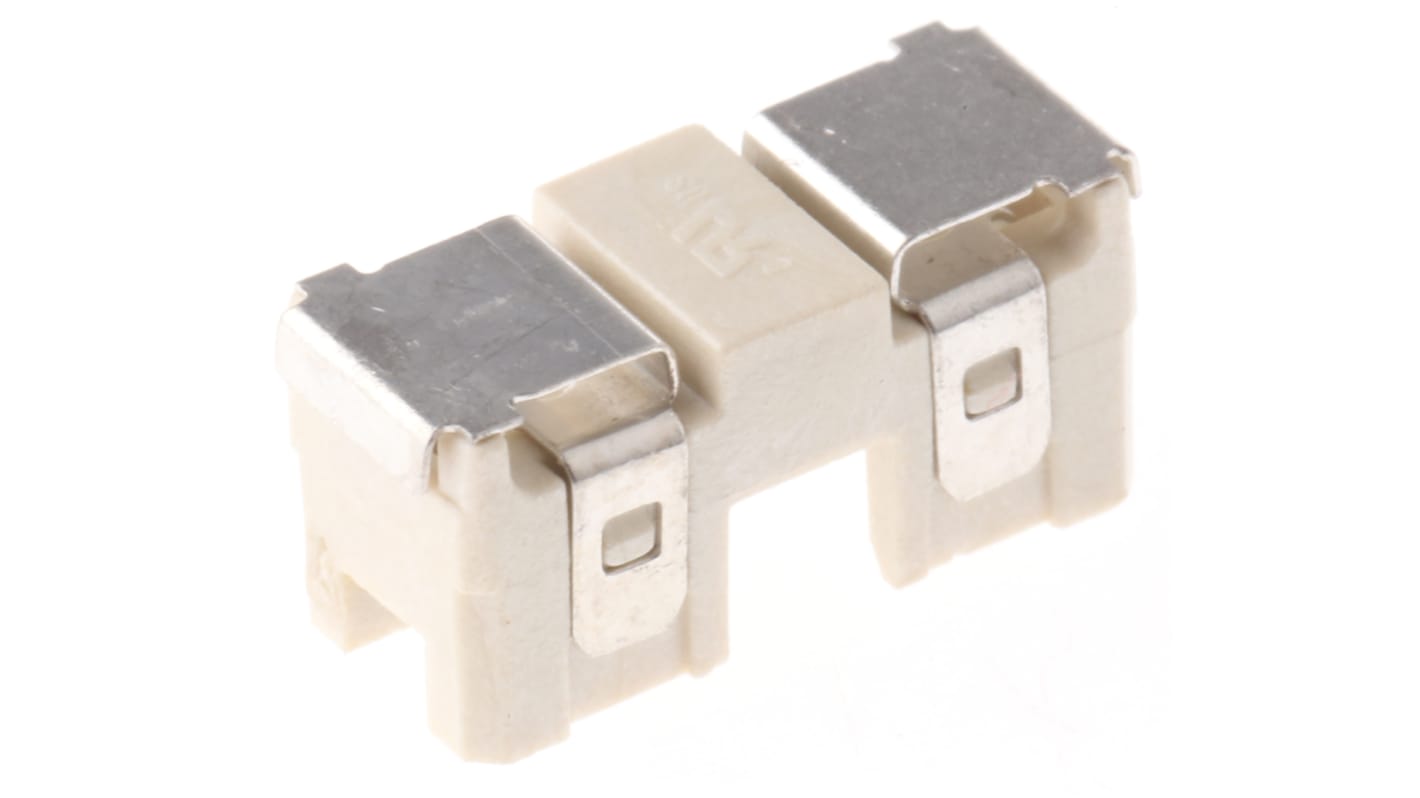

Schurter 5 A 12 mm, Surface Mount Fuse Block, 125 V ac/dc
- RS Stock No.:
- 167-5194
- Mfr. Part No.:
- 0031.7701.11
- Brand:
- Schurter
Bulk discount available
Subtotal (1 pack of 10 units)*
£12.15
(exc. VAT)
£14.58
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- Plus 160 unit(s) shipping from 16 March 2026
- Plus 430 unit(s) shipping from 23 March 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 10 - 90 | £1.215 | £12.15 |
| 100 - 490 | £1.095 | £10.95 |
| 500 - 1490 | £1.03 | £10.30 |
| 1500 - 2490 | £0.912 | £9.12 |
| 2500 + | £0.848 | £8.48 |
*price indicative
- RS Stock No.:
- 167-5194
- Mfr. Part No.:
- 0031.7701.11
- Brand:
- Schurter
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Schurter | |
| Product Type | Fuse Block | |
| Fuse Size | 12 mm | |
| Current Rating | 5 A | |
| Voltage | 125 V ac/dc | |
| Mount Type | Surface Mount | |
| Minimum Operating Temperature | -25°C | |
| Maximum Operating Temperature | 85°C | |
| Body Material | Thermoplastic | |
| Standards/Approvals | UL 4248-1, CSA 22.2 no. 4248.1 | |
| For Use With | OMF 125, OSU 125, OMF 63, OMT 125 | |
| Series | OMH 125 | |
| Clip Material | Tin Plated Copper Alloy | |
| Compatible Fuse Class | OMx 63,125 Fuse, OMF 125, OMT 125, OMF 63 | |
| Dielectric Strength | 3kV | |
| Holder Terminal Type | Solder SMT | |
| Select all | ||
|---|---|---|
Brand Schurter | ||
Product Type Fuse Block | ||
Fuse Size 12 mm | ||
Current Rating 5 A | ||
Voltage 125 V ac/dc | ||
Mount Type Surface Mount | ||
Minimum Operating Temperature -25°C | ||
Maximum Operating Temperature 85°C | ||
Body Material Thermoplastic | ||
Standards/Approvals UL 4248-1, CSA 22.2 no. 4248.1 | ||
For Use With OMF 125, OSU 125, OMF 63, OMT 125 | ||
Series OMH 125 | ||
Clip Material Tin Plated Copper Alloy | ||
Compatible Fuse Class OMx 63,125 Fuse, OMF 125, OMT 125, OMF 63 | ||
Dielectric Strength 3kV | ||
Holder Terminal Type Solder SMT | ||
Fast Acting Miniature Fuses
Excellent I2t values
Suitable for all SMD soldering processes
Fuseholder type OHM63 (stock-no. 167-5194) must be ordered separately
Surface Mount Technology
Surface mount fuses offer considerable space (and time) saving features for low voltage applications. The FF types are ideal for protection of high value silicon IC's e.g. alarm systems, audio/visual equipment, computer boards, portable telephones, power supplies, medical apparatus etc.
Approvals
UL recognised component, CSA certified
