Aim-TTi TG1000 Function Generator, 1mHz Min, 10MHz Max, FM Modulation, Variable Sweep - RS Calibration

View all Function Generators
Discontinued
RS Stock No.:
706-8731
Mfr. Part No.:
TG1000
Brand:
Aim-TTi
Find similar products by selecting one or more attributes.
Select all

Brand

Aim-TTi

Model Number

TG1000

Calibrated

RSCAL

Digital Frequency

Yes

Minimum Frequency Range Sinewave

1mHz

Maximum Frequency Range Sinewave

10MHz

Maximum Frequency Range Square Pulse and Arbitrary Waveform

10MHz

Minimum Frequency Range Square Pulse and Arbitrary Waveform

1 mHz

Maximum Frequency Range Triangle/Saw

1MHz

Minimum Frequency Range Triangle/Saw

1mHz

Digital Amplitude and Offset

Yes

Internal Linear and Log Sweep

Yes

Variable Sweep

Yes

Internal and External Amplitude Modulation

Yes

FM Modulation

Yes

Time Base Accuracy

±10ppm

Minimum Operating Temperature

+5°C

Height

88mm

Input Impedance

10 kΩ

Frequency Range Square Pulse and Arbitrary Waveform

1 mHz → 10 MHz

Output Amplitude

20V Pk-Pk

Width

260mm

Maximum Operating Temperature

+40°C

Length

235mm

Plug Type

Type C - European Plug, Type G - British 3-pin

Weight

2kg

Output Impedance

50 Ω, 600 Ω

Dimensions

235 x 260 x 88mm

RoHS Status: Exempt

COO (Country of Origin):
GB

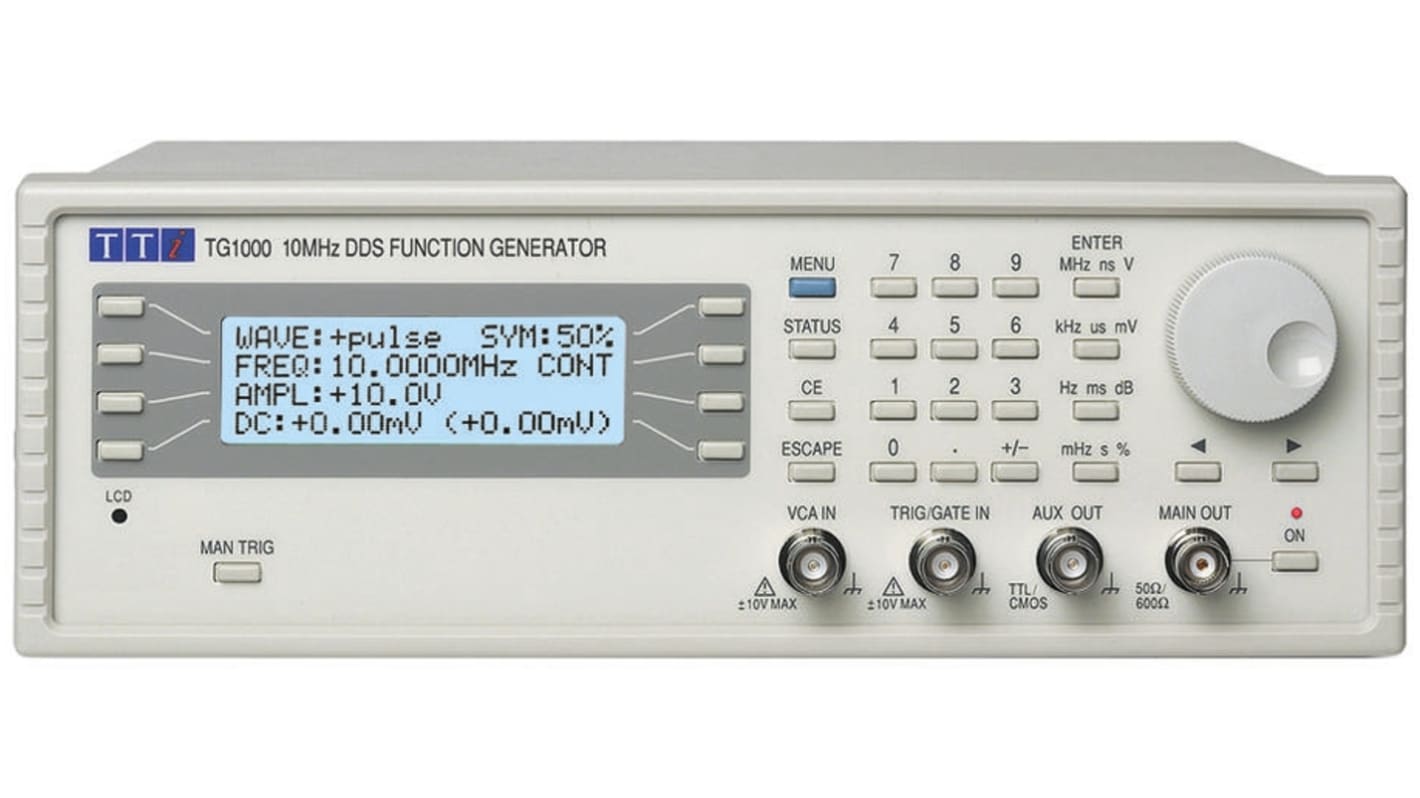

Aim-TTi TG1000 & TG2000 DDS Function Generators, 10MHz & 20MHz


The TG1000/2000 offers a high quality direct digital synthesis (DDS) function generator at a significantly lower price. DDS generates waveforms using a phase accumulator, look-up table and DAC. The accuracy/stability of the resulting waveform is related to that of the crystal master clock. When correctly engineered, the DDS generator offers not only exceptional accuracy and stability but also high spectral purity, low phase noise and excellent frequency agility. The TG2000 includes RS-232 and USB interfaces for remote control of all instrument functions and for remotely storing instrument set-ups.

6 digits or 1mHz setting resolution
1ppm stability and better than 10ppm absolute accuracy for one year
Sine, square, triangle, positive pulse and negative pulse waveforms
Internal sweep, linear or logarithmic, phase continuous, 0.1Hz to 20MHz
Modulations modes of sweep, gated, AM, FSK and tone switching - built-in trigger generator
5mV to 20V pk-pk output from 50Ω or 600Ω; plus multi-function auxiliary output
Storage for up to nine complete instrument set-ups in non-volatile memory

Standards

Complies with EN61010-1 and EN61326

Supplied with

Mains lead and full instructions
