Aim-TTi TGF3000 Function Generator, 1μHz Min, 160MHz Max, FM Modulation, Variable Sweep - RS Calibration

View all Function Generators
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
RS Stock No.:
162-5670
Mfr. Part No.:
59120-6140
Brand:
Aim-TTi
Find similar products by selecting one or more attributes.
Select all

Brand

Aim-TTi

Model Number

TGF3000

Calibrated

RSCAL

Digital Frequency

Yes

Minimum Frequency Range Sinewave

1µHz

Maximum Frequency Range Sinewave

160MHz

Maximum Frequency Range Square Pulse and Arbitrary Waveform

20 MHz, 50 MHz, 80 MHz

Minimum Frequency Range Square Pulse and Arbitrary Waveform

1 MHz, 1 μHz

Minimum Frequency Range Triangle/Saw

1µHz

Maximum Frequency Range Triangle/Saw

5MHz

Digital Amplitude and Offset

Yes

Internal Linear and Log Sweep

Yes

Variable Sweep

Yes

Internal and External Amplitude Modulation

Yes

FM Modulation

Yes

Time Base Accuracy

±1ppm

Maximum Operating Temperature

+40°C

Attenuation

42dB

Weight

3.2kg

Output Impedance

50Ω

Length

269 mm, 295 mm

Input Impedance

10 kΩ

Width

213.5 mm, 250 mm

Height

86.5 mm, 97 mm

Minimum Operating Temperature

+5°C

Frequency Range Square Pulse and Arbitrary Waveform

1 μHz → 50 MHz (Square), 1 μHz → 80 MHz (Arbitrary), 1 mHz → 20 MHz (Pulse)

Interface Type

GPIB, LAN, USB

CMOS Output Level

3V

Dimensions

269 x 213.5 x 86.5 (Rack Mount) mm, 295 x 250 x 97 (Bench Top) mm

Output Amplitude

20V Pk-Pk

COO (Country of Origin):
GB

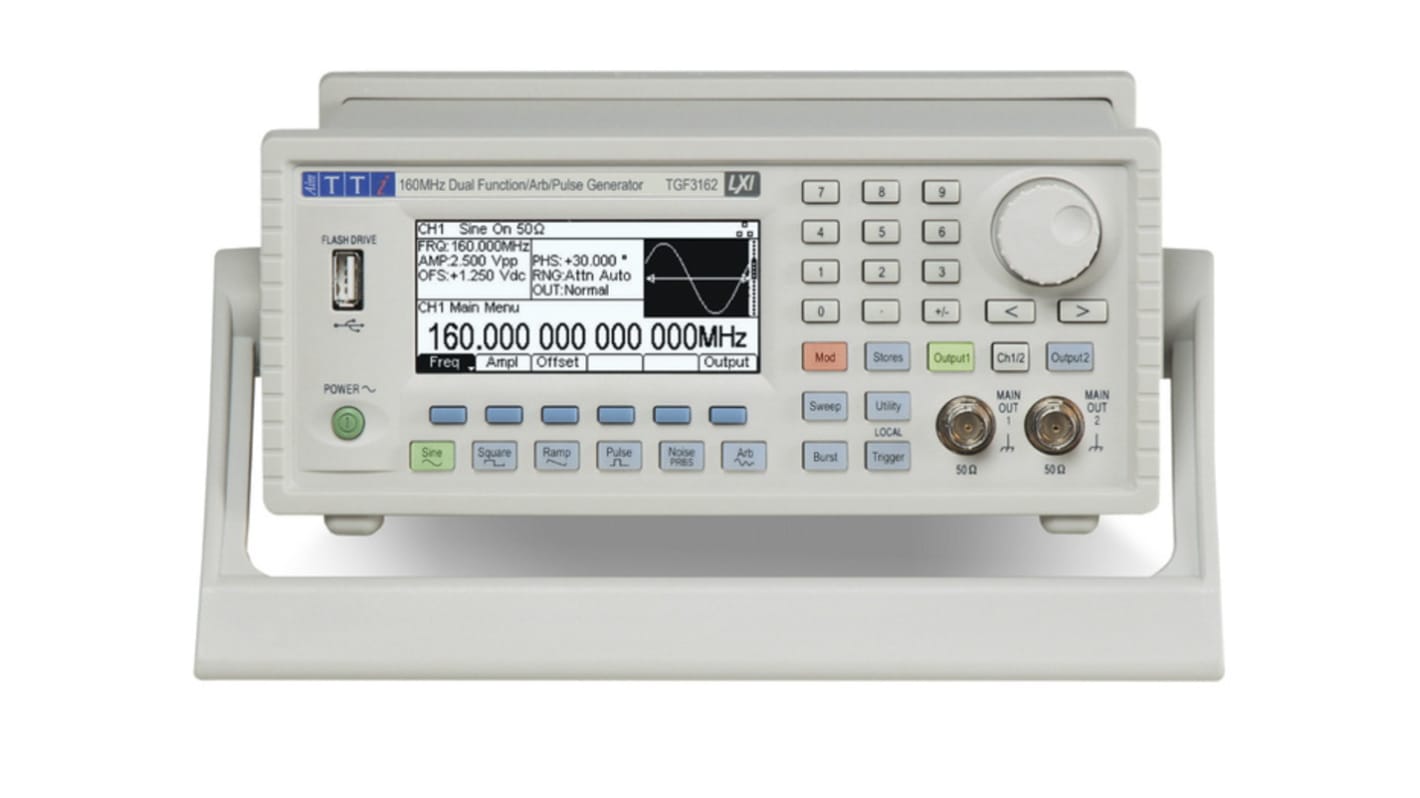

TGF3000 Series Dual Channel Arbitrary Function Generators


The TGF300 series from Aim-TTi are high performing function/arbitrary generators which offer signal generation capability up to 160 MHz. These function generators have two identical full performance channels that can operate independently or in coupled or tracking modes. Precise channel to channel phase control with a resolution of 0.001° is provided.

A wide range of built-in waveforms is included. Custom arbitrary waveforms can be used at sample speeds up to 800MS/s and replay rates up to 80 MHz. PC-based arbitrary waveform generation and editing software is provided.
High resolution, low jitter pulses can be generated as can wide bandwidth white noise. A extensive array of modulations is provided using internal and external sources. Gated, burst and sweep modes can use internal or external trigger sources.

Remote control via USB and LXI compliant LAN (standard) can be supplemented by optional GPIB if require

Features and Benefits


Sine frequency up to 160 MHz high sine purity, THD <0.05%
Arbitrary waveforms up to 16 bits at up to 800MSa/s
Class-leading modulation set including Sum modulation
High-resolution pulse generator and wide bandwidth noise source
PRBS serial patterns with eight selectable sequence lengths
USB and LXI-compliant LAN interfaces, plus optional GPIB interface
