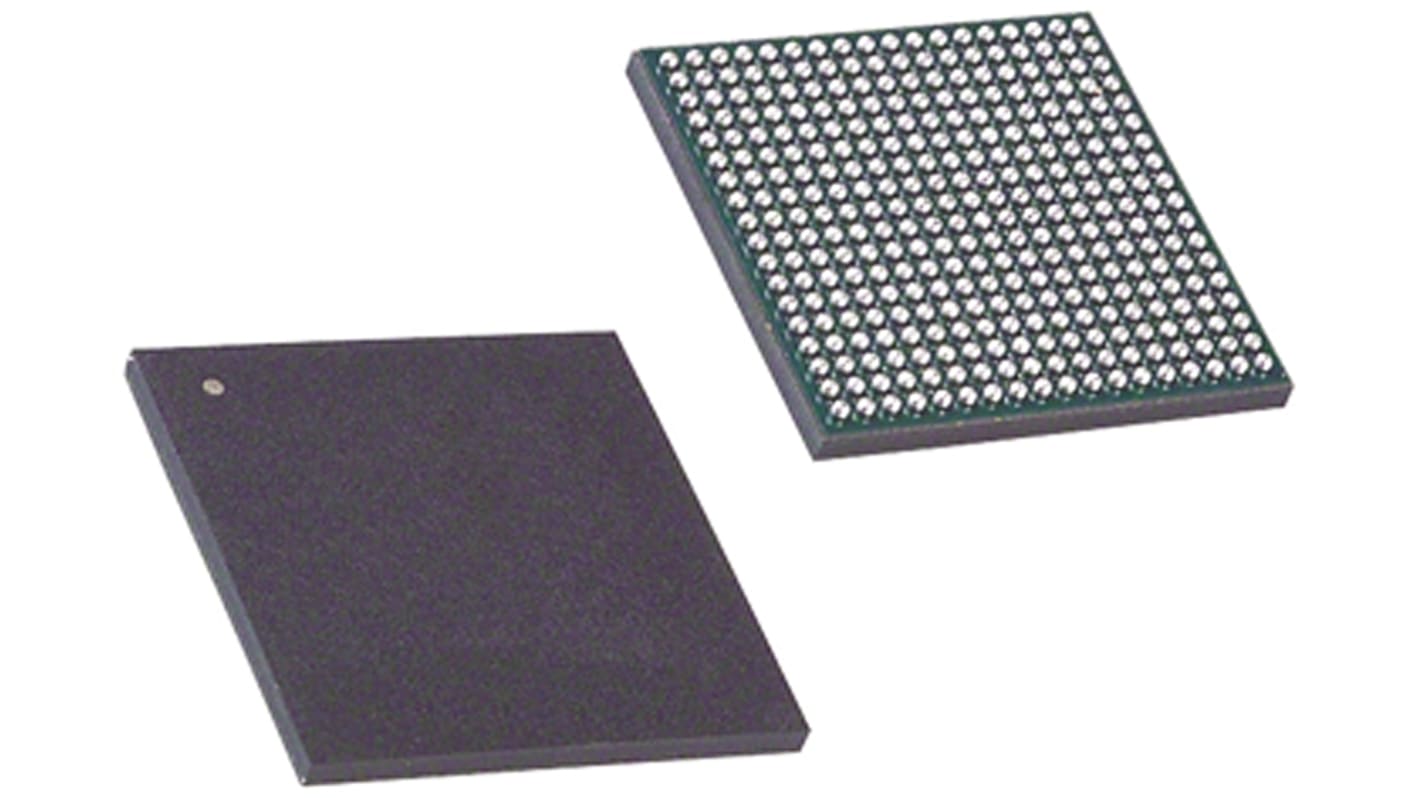

Altera FPGA 5CEBA2U15C8N, Cyclone V 25000 Cells, 25000 Gates, 2002944, 9434 Blocks, 324-Pin UBGA
- RS Stock No.:
- 170-2986
- Mfr. Part No.:
- 5CEBA2U15C8N
- Brand:
- Altera
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 170-2986
- Mfr. Part No.:
- 5CEBA2U15C8N
- Brand:
- Altera
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Altera | |
| Family Name | Cyclone V | |
| Number of Logic Gates | 25000 | |
| Number of Logic Cells | 25000 | |
| Number of Logic Units | 9434 | |
| Dedicated DSP | Yes | |
| Number of Registers | 37736 | |
| Number of Multipliers | 50 (18 x 18) | |
| Mounting Type | Surface Mount | |
| Package Type | UBGA | |
| Pin Count | 324 | |
| Number of RAM Bits | 2002944 | |
| Length | 15mm | |
| Maximum Operating Temperature | +85 °C | |
| Maximum Operating Supply Voltage | 1.13 V | |
| Minimum Operating Supply Voltage | 1.07 V | |
| Minimum Operating Temperature | 0 °C | |
| Width | 15mm | |
Select all | ||
|---|---|---|
Brand Altera | ||
Family Name Cyclone V | ||
Number of Logic Gates 25000 | ||
Number of Logic Cells 25000 | ||
Number of Logic Units 9434 | ||
Dedicated DSP Yes | ||
Number of Registers 37736 | ||
Number of Multipliers 50 (18 x 18) | ||
Mounting Type Surface Mount | ||
Package Type UBGA | ||
Pin Count 324 | ||
Number of RAM Bits 2002944 | ||
Length 15mm | ||
Maximum Operating Temperature +85 °C | ||
Maximum Operating Supply Voltage 1.13 V | ||
Minimum Operating Supply Voltage 1.07 V | ||
Minimum Operating Temperature 0 °C | ||
Width 15mm | ||
- COO (Country of Origin):
- US
Cyclone FPGA, Altera
An FPGA is a semiconductor device consisting of a matrix of Configurable Logic Blocks (CLBs) connected through programmable interconnects. The user determines these interconnections by programming SRAM. A CLB can be simple (AND, OR gates, etc) or complex (a block of RAM). The FPGA allows changes to be made to a design even after the device is soldered into a PCB.
