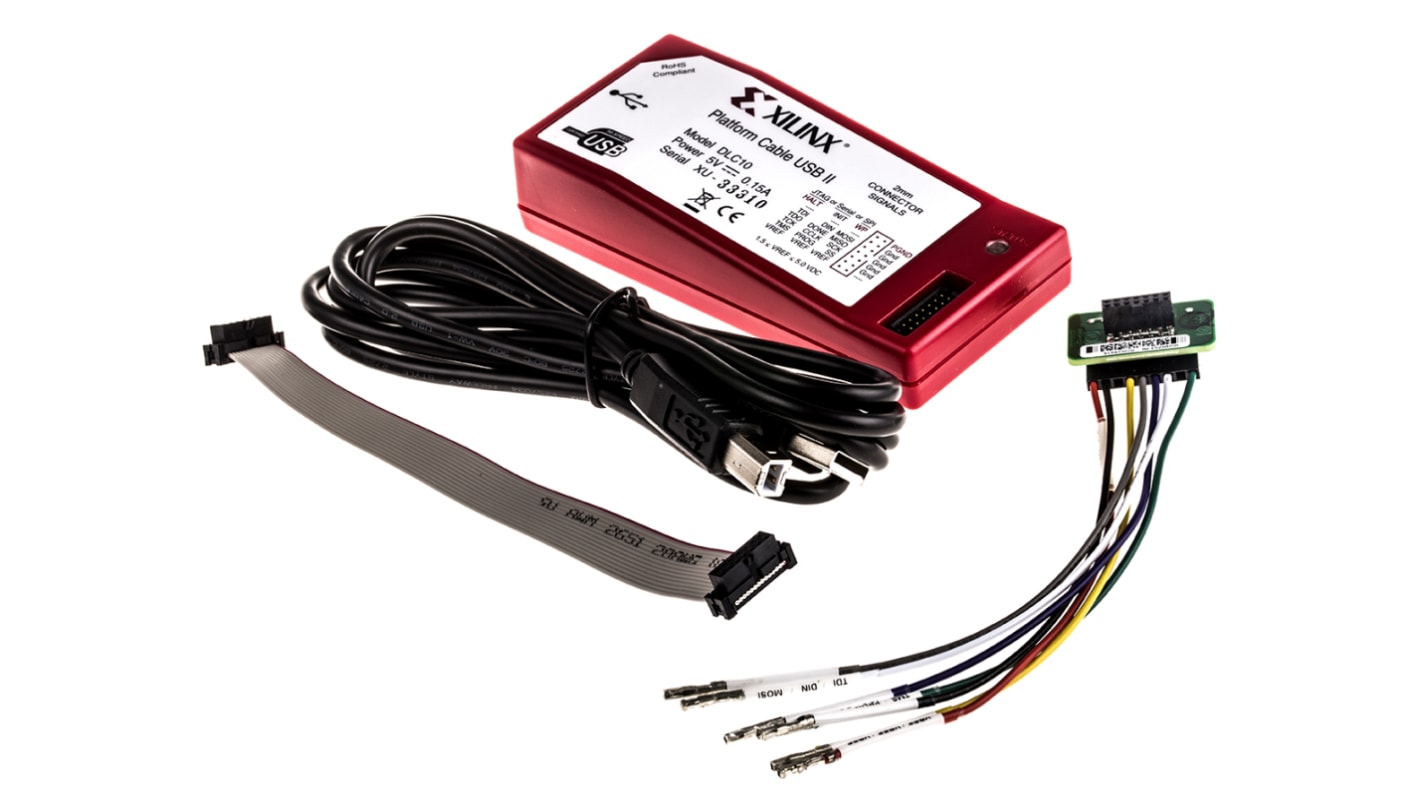

    Platform Cable USB II, Xilinx


    Platform Cable USB II configures Xilinx FPGAs, programs Xilinx PROMs and CPLDs and directly programs third-party SPI Flash memory devices.


    Programs and configures all Xilinx devices:
    XC18V00 ISP PROMs
    Platform Flash XCF00S/XCF00P/XL PROMs
    All UltraScale, 7 series, Virtex and Spartan FPGA families
    All Zynq-7000 AP Systems-on-Chip
    XC9500XL and CoolRunner XPLA3/CoolRunner-II CPLDs
    Supports JTAG and Slave-Serial programming topologies
    Firmware downloadable over cable
    Fully integrated and optimised for use with Xilinx iMPACT software (required for programming and configuration)
    Intuitive multiple cable management from a single application
    Compatible with Windows and Linux operating systems
    Automatically senses and adapts to target I/O voltage
    Interfaces to devices operating at +5 V (TTL), +3.3 V (LVCMOS), +2.5 V, +1.8 V and +1.5 V
    Powered from USB connection
    Target power status LED
    Firmware updates are transparent to the user
    Highly optimised for use with Xilinx design tools: ISE Foundation Software, Embedded Development Kit, ChipScope Pro Analyser and System Generator for DSP


    Xilinx Platform Cable USB Ii Development Kit


    The Xilinx platform cable USB II Development Kit is more than just a simple USB cable. It provides integrated firmware (hardware and software) to deliver high-performance, reliable, and easy to perform configuration of Xilinx devices. It attaches to user hardware for configuring Xilinx FPGAs, programming Xilinx PROMs and CPLDs, and directly programming third-party SPI flash devices. Also, the cable provides a means of indirectly programming platform flash XL, third party SPI flash memory devices, and third-party parallel NOR flash memory devices via the FPGA JTAG port.


    Features and Benefits



    High-performance FPGA and PROM programming and configuration
    • Includes innovative FPGA-based acceleration firmware encapsulated in a small form factor pod attached to the cable
    • Leverages high-speed slave-serial mode programming interface
    • Fully integrated and optimized for use with Xilinx iMPACT software
    • Intuitive multiple cable management from a single application
    • Easy to use
    • Intuitive multiple cable management from a single application
    • Automatically senses and adapts to target I/O voltage
    • Interfaces to devices operating at 5V (TTL), 3.3V (LVCMOS), 2.5V, 1.8V and 1.5V
    • Intuitive flyleads-to-cable interface labelling


    Certifications



    CE certified
    • FCC certified
    • IEEE 1149.1



    Programmable Logic Programming


    Specifications

    AttributeValue
    Programmable Logic TechnologyCPLD, FPGA
    Kit ClassificationDevelopment Kit
    Kit NamePlatform Cable USB II
