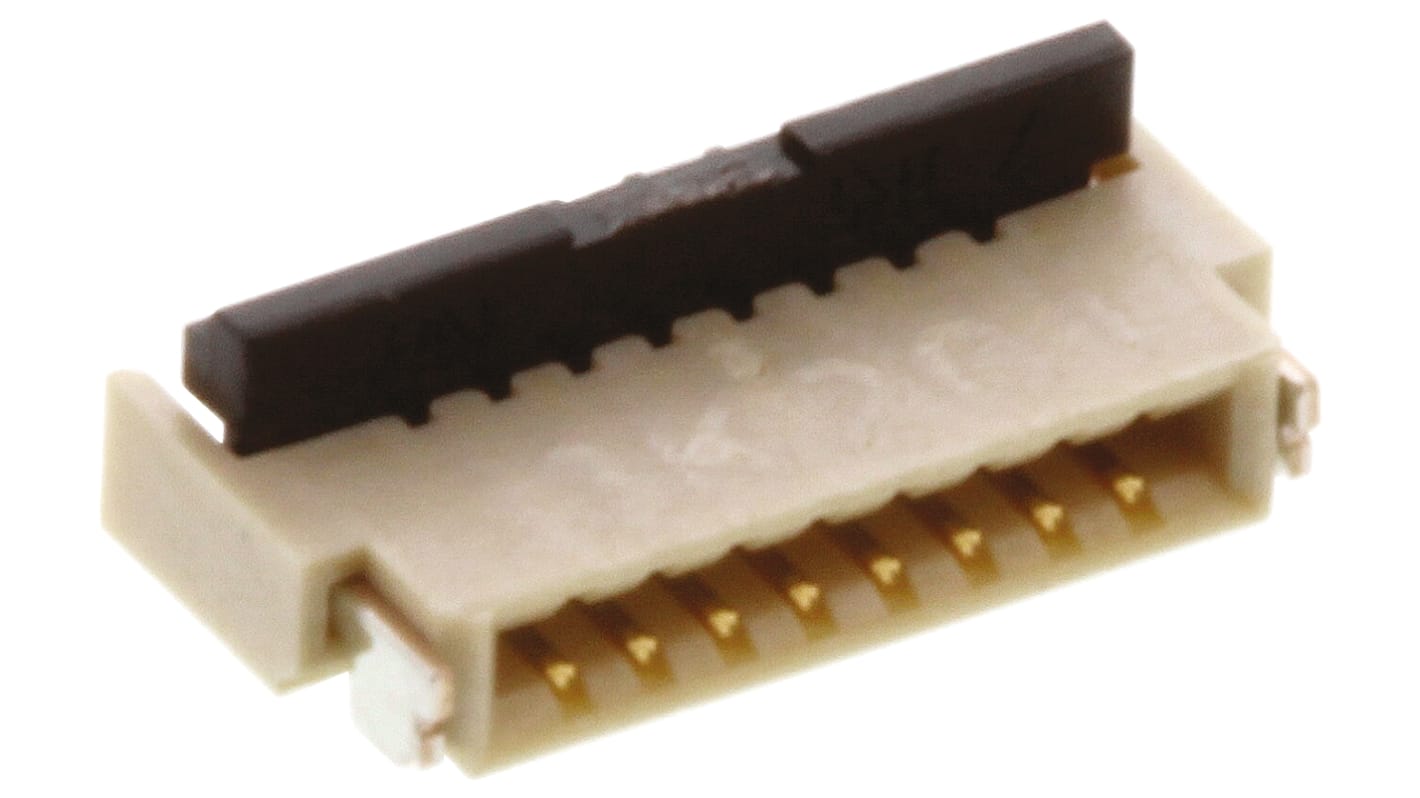

Hirose, FH34S 0.5mm Pitch 8 Way Right Angle Female FPC Connector, ZIF Top Contact
- RS Stock No.:
- 772-7096
- Mfr. Part No.:
- FH34S-8S-0.5SH(50)
- Brand:
- Hirose
Discontinued
- RS Stock No.:
- 772-7096
- Mfr. Part No.:
- FH34S-8S-0.5SH(50)
- Brand:
- Hirose
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Hirose | |
| Number of Contacts | 8 | |
| Contact Material | Phosphor Bronze | |
| Pitch | 0.5mm | |
| Mounting Type | Surface Mount | |
| Gender | Female | |
| Termination Type | ZIF Top Contact | |
| Body Orientation | Right Angle | |
| Current Rating | 500mA | |
| Voltage Rating | 50 V ac | |
| Series | FH34S | |
| Number of Rows | 1 | |
| Contact Plating | Gold | |
| Termination Method | Solder | |
| Maximum Operating Temperature | +85°C | |
| Housing Material | Liquid Crystal Polymer, Polyamide | |
| Minimum Operating Temperature | -55°C | |
| Select all | ||
|---|---|---|
Brand Hirose | ||
Number of Contacts 8 | ||
Contact Material Phosphor Bronze | ||
Pitch 0.5mm | ||
Mounting Type Surface Mount | ||
Gender Female | ||
Termination Type ZIF Top Contact | ||
Body Orientation Right Angle | ||
Current Rating 500mA | ||
Voltage Rating 50 V ac | ||
Series FH34S | ||
Number of Rows 1 | ||
Contact Plating Gold | ||
Termination Method Solder | ||
Maximum Operating Temperature +85°C | ||
Housing Material Liquid Crystal Polymer, Polyamide | ||
Minimum Operating Temperature -55°C | ||
Hirose 0.5mm SMT FPC/FFC ZIF Connectors with Top Contact - FH34(S) Series
FH34(S) series SMT horizontal mount FPC/FFC ZIF connectors with a 0.5mm contact pitch and top contact points that can support FPC/FFC with a standard thickness of 0.3mm. These 0.5mm FPC/FFC SMT ZIF connectors have an increased FPC/FFC retention force, a low profile 1.0mm above board design and a small depth of 2.8mm. A rotational finger operated back-flip actuator is included on these FPC/FFC ZIF connectors which allows easy insertion and reliable connection of the FPC/FFC and negates the need for side latches allowing connectors to be mounted side by side. The body of these FH34(S) series 0.5mm FPC/FFC ZIF connectors is made from beige UL94V-0 LCP with a solid bottom surface (no contact exposure) enabling the FPC/FFC connector to be mounted over conductive traces on the PCB and has entry chamfers on all sides of the insertion slot to aid insertion and positioning of the FPC/FFC. The contacts are top mounted and are made from phosphor bronze with gold plating.
Note
The FH34(S) series SMT horizontal mount FPC/FFC ZIF connectors can be used in conjunction with or as replacements for the FH19SC series (bottom contact) FPC/FFC ZIF connectors as they both have the same mounting patterns.
