Molex, 54548 0.5mm Pitch 24 Way Right Angle Female FPC Connector, ZIF
- RS Stock No.:
- 179-6556
- Mfr. Part No.:
- 54548-2471-TR750
- Brand:
- Molex
Bulk discount available
Subtotal (1 reel of 750 units)*
£198.75
(exc. VAT)
£238.50
(inc. VAT)
Stock information currently inaccessible - Please check back later
Units | Per unit | Per Reel* |
|---|---|---|
| 750 - 750 | £0.265 | £198.75 |
| 1500 - 3000 | £0.257 | £192.75 |
| 3750 - 6750 | £0.251 | £188.25 |
| 7500 + | £0.244 | £183.00 |
*price indicative
- RS Stock No.:
- 179-6556
- Mfr. Part No.:
- 54548-2471-TR750
- Brand:
- Molex
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Molex | |
| Number of Contacts | 24 | |
| Contact Material | Phosphor Bronze | |
| Pitch | 0.5mm | |
| Mounting Type | Surface Mount | |
| Gender | Female | |
| Termination Type | ZIF | |
| Contact Position | Bottom | |
| Insertion Force | ZIF | |
| Body Orientation | Right Angle | |
| Current Rating | 500mA | |
| Voltage Rating | 50 V | |
| Series Number | 54548 | |
| Number of Rows | 1 | |
| Termination Method | Solder | |
| Contact Plating | Gold, Tin | |
| Housing Material | Liquid Crystal Polymer | |
| Maximum Operating Temperature | +85°C | |
| Minimum Operating Temperature | -20°C | |
| Select all | ||
|---|---|---|
Brand Molex | ||
Number of Contacts 24 | ||
Contact Material Phosphor Bronze | ||
Pitch 0.5mm | ||
Mounting Type Surface Mount | ||
Gender Female | ||
Termination Type ZIF | ||
Contact Position Bottom | ||
Insertion Force ZIF | ||
Body Orientation Right Angle | ||
Current Rating 500mA | ||
Voltage Rating 50 V | ||
Series Number 54548 | ||
Number of Rows 1 | ||
Termination Method Solder | ||
Contact Plating Gold, Tin | ||
Housing Material Liquid Crystal Polymer | ||
Maximum Operating Temperature +85°C | ||
Minimum Operating Temperature -20°C | ||

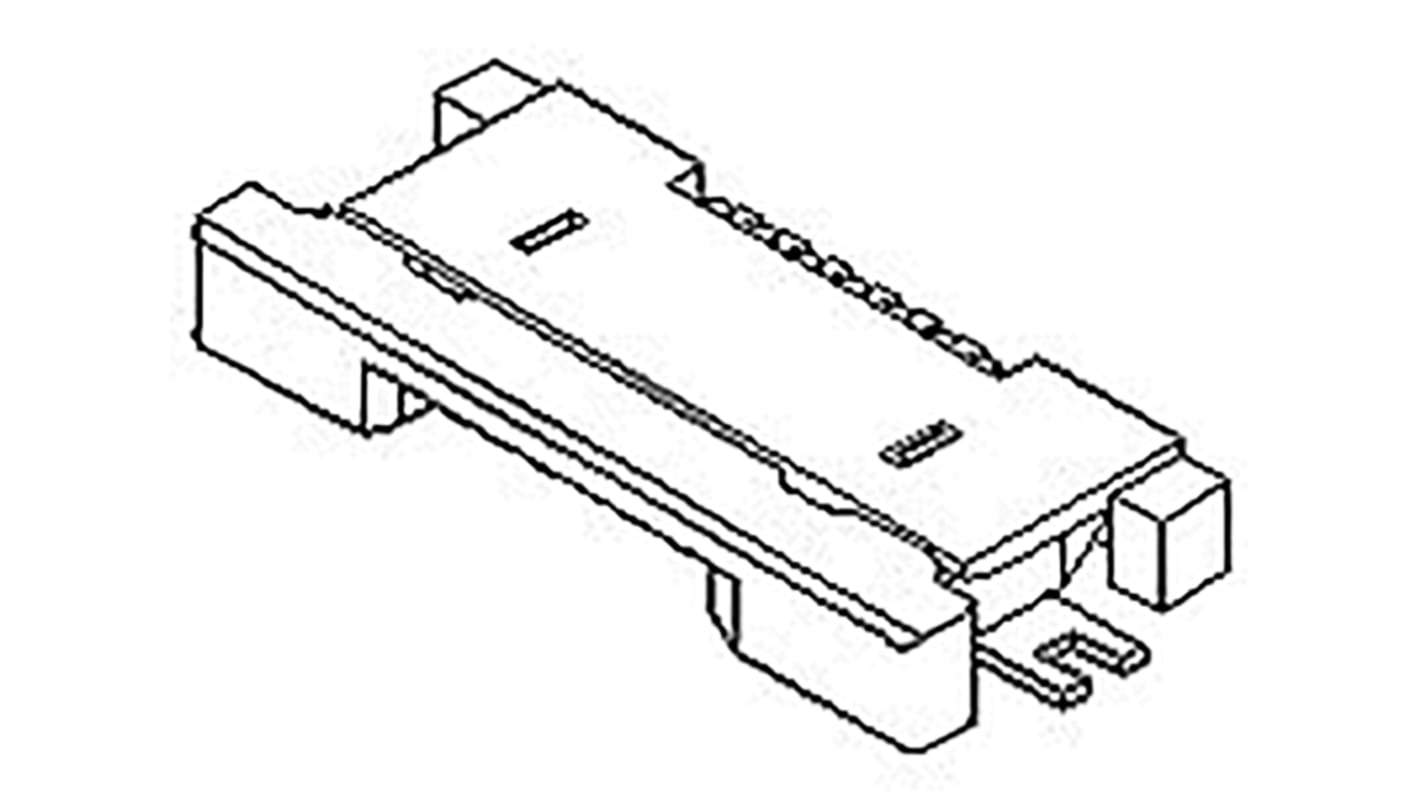

Molex Surface Mount Female FPC connector
The Molex 54548 series, 0.50mm pitch, right-angled easy-on female FPC connector has solder termination method and is a surface mount device. It has 24 ways and a single row. The housing is made of liquid crystal polymer and the contact is made of tin, gold plating. This connector has an electrical rating of 50VAC/DC and 500mA.
Features and Benefits
• Bottom contact style
• Insertion force is ZIF
• Mated height is 1.20mm
• Operating temperature ranges between -20°C and 85°C
• Slider actuator type
• Insertion force is ZIF
• Mated height is 1.20mm
• Operating temperature ranges between -20°C and 85°C
• Slider actuator type
Certifications
• ANSI/ESD S20.20:2014
• BS EN 61340-5-1:2007
• CSA LR19980
• UL E29179
• BS EN 61340-5-1:2007
• CSA LR19980
• UL E29179
