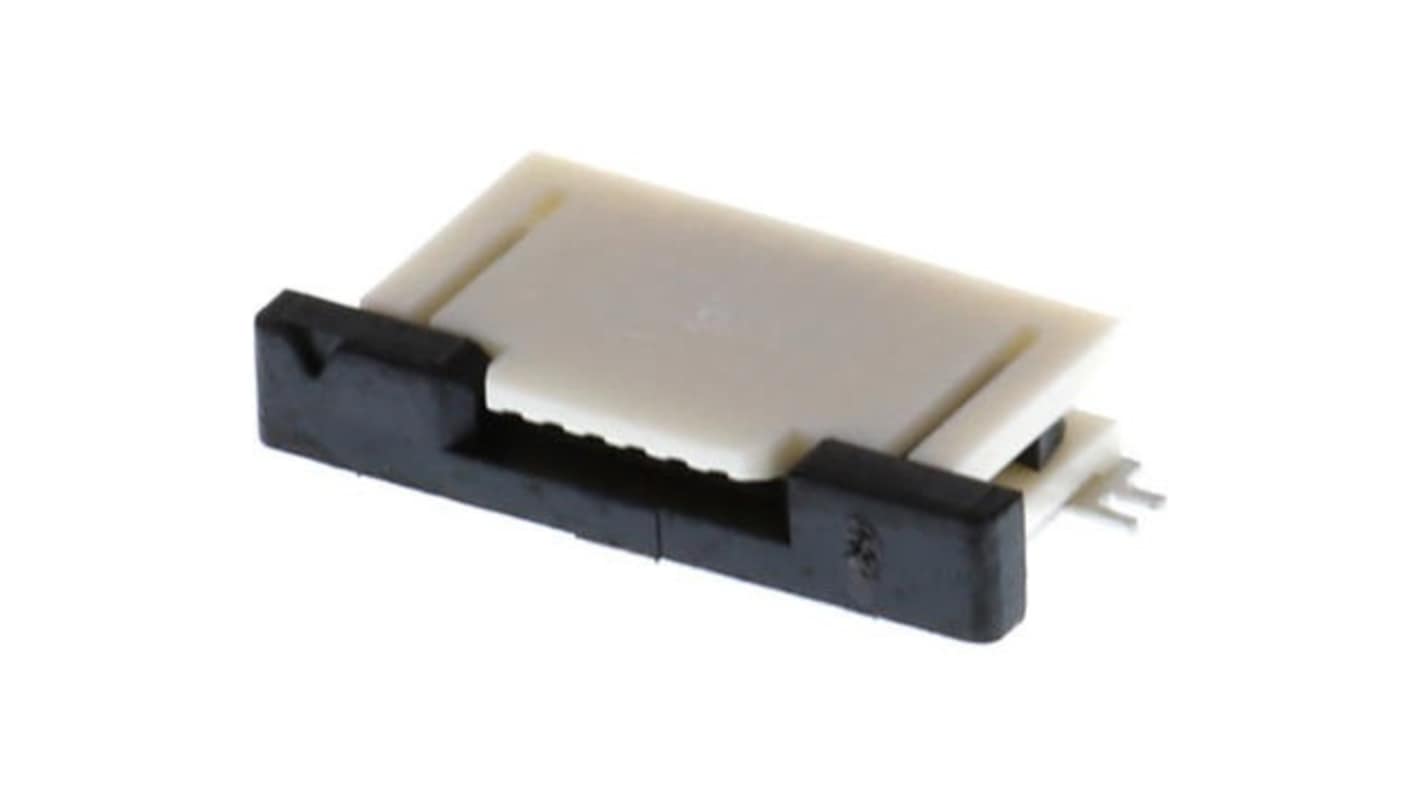

Molex, FFC/FPC SMT, 52745 0.5mm Pitch 6 Way Right Angle Female FPC Connector, ZIF Top Contact

This FPC connector is a surface mount device designed for flexibility and ease of use in modern applications. With a compact 0.5mm pitch and six circuits, this component features a right-angle orientation and a female connector design, allowing for straightforward integration into various systems. Constructed with a nylon housing and phosphor bronze contacts, it withstands operating temperatures ranging from -20°C to +85°C.

• ZIF top contact style facilitates easy connection and disconnection
• Gold contact plating enhances durability and conductivity
• Surface mount design simplifies PCB assembly processes
• 20 mating cycles ensure reliable long-term performance
• High current rating of 500mA supports efficient power delivery
• Flammability classification of 94V-0 meets safety standards

• Perfect for automated systems requiring precise connections
• Utilised in consumer electronics where space is at a premium
• Commonly found in telecommunications devices to maintain signal integrity
• Ideal for medical equipment assemblies, ensuring reliable performance

The nylon housing offers robust protection against environmental factors and is designed to endure extreme temperatures. This ensures the connector remains functional in diverse operating environments.

The connector is rated for a maximum of 20 mating cycles, which indicates its durability and suitability for applications requiring repeated connections.

With a maximum current rating of 500mA, it ensures compatibility with various devices while preventing overheating, thereby enhancing safety in electrical applications.
