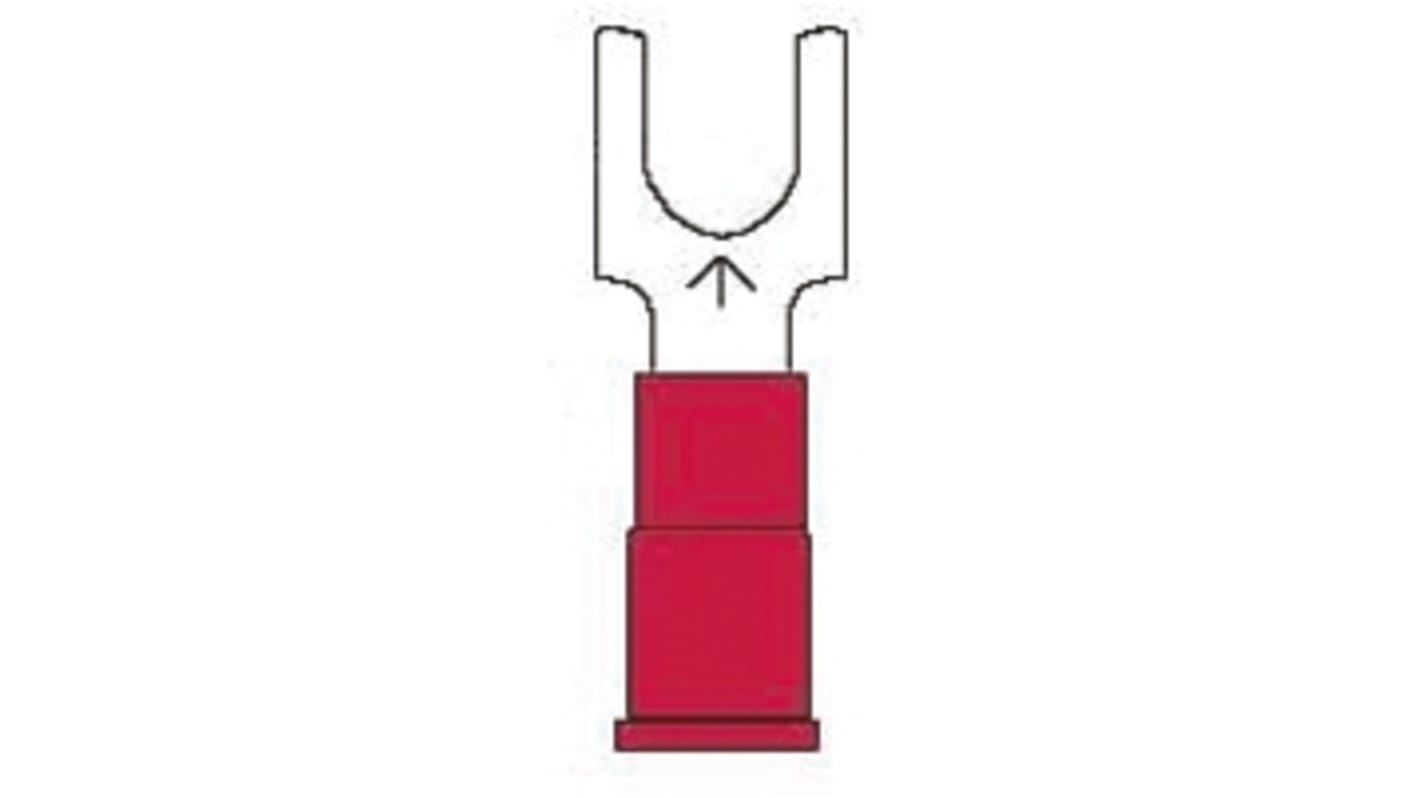

3M, BS Insulated Crimp Spade Connector, 22AWG to 18AWG, #10 Stud Size Vinyl, Red
- RS Stock No.:
- 837-7083
- Mfr. Part No.:
- BS-31-10-P
- Brand:
- 3M
View all Fork Terminals
Sorry, we couldn't check our stock levels right now. Please try refreshing the page.
Price 1 Pack of 1000
£99.97
(exc. VAT)
£119.96
(inc. VAT)
| Pack(s) | Per Pack | Per unit* |
| 1 + | £99.97 | £0.10 |
| *price indicative | ||
- RS Stock No.:
- 837-7083
- Mfr. Part No.:
- BS-31-10-P
- Brand:
- 3M
- COO (Country of Origin):
- US
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- US
Product Details
3M Highland™ Block Fork
These Block forks have been designed to be used in a terminal block as the sides lie flat against the barrier portion of the terminal block. They also offer the same strength as a standard fork.
Barrel Style: Butted
Insulation Material: Vinyl
Terminal Style: Block
Terminal Type: Fork
Insulation Material: Vinyl
Terminal Style: Block
Terminal Type: Fork
Standards
UL and CSA
3M Highland™ Series
Specifications
| Attribute | Value |
| Series | BS |
| Insulation | Insulated |
| Width | 7.62mm |
| Insulation Material | Vinyl |
| Minimum Wire Size AWG | 22AWG |
| Shrouded/Unshrouded | Unshrouded |
| Maximum Wire Size AWG | 18AWG |
| Stud Size | #10 |
| Colour | Red |
| Overall Length | 21.59mm |
| Contact Plating | Tin |
| Contact Material | ETP Copper |
| Thickness | 0.76mm |
