Tractel Dynafor Industrial 20t Force Gauge 32 Hz, Range: DynaforTM Industrial
- RS Stock No.:
- 255-3722
- Mfr. Part No.:
- Dynafor Industrial 20t
- Brand:
- Tractel
Subtotal (1 unit)*
£2,025.46
(exc. VAT)
£2,430.55
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- 1 unit(s) shipping from 13 March 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £2,025.46 |
*price indicative
- RS Stock No.:
- 255-3722
- Mfr. Part No.:
- Dynafor Industrial 20t
- Brand:
- Tractel
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Tractel | |
| Product Type | Force Gauge | |
| Accuracy | ±60 % | |
| Units Measured | Dan, kg, lb | |
| Sampling Rate | 32Hz | |
| Battery Type | AAA | |
| Power Source | Battery | |
| Weight | 5.1kg | |
| Length | 342mm | |
| Standards/Approvals | CE, EN 613261 (2013) / IEC 61311 (2007) | |
| Width | 147 mm | |
| Height | 59.4mm | |
| Series | DynaforTM Industrial | |
| Maximum Operating Temperature | 50°C | |
| Minimum Operating Temperature | -20°C | |
| Select all | ||
|---|---|---|
Brand Tractel | ||
Product Type Force Gauge | ||
Accuracy ±60 % | ||
Units Measured Dan, kg, lb | ||
Sampling Rate 32Hz | ||
Battery Type AAA | ||
Power Source Battery | ||
Weight 5.1kg | ||
Length 342mm | ||
Standards/Approvals CE, EN 613261 (2013) / IEC 61311 (2007) | ||
Width 147 mm | ||
Height 59.4mm | ||
Series DynaforTM Industrial | ||
Maximum Operating Temperature 50°C | ||
Minimum Operating Temperature -20°C | ||
- COO (Country of Origin):
- FR

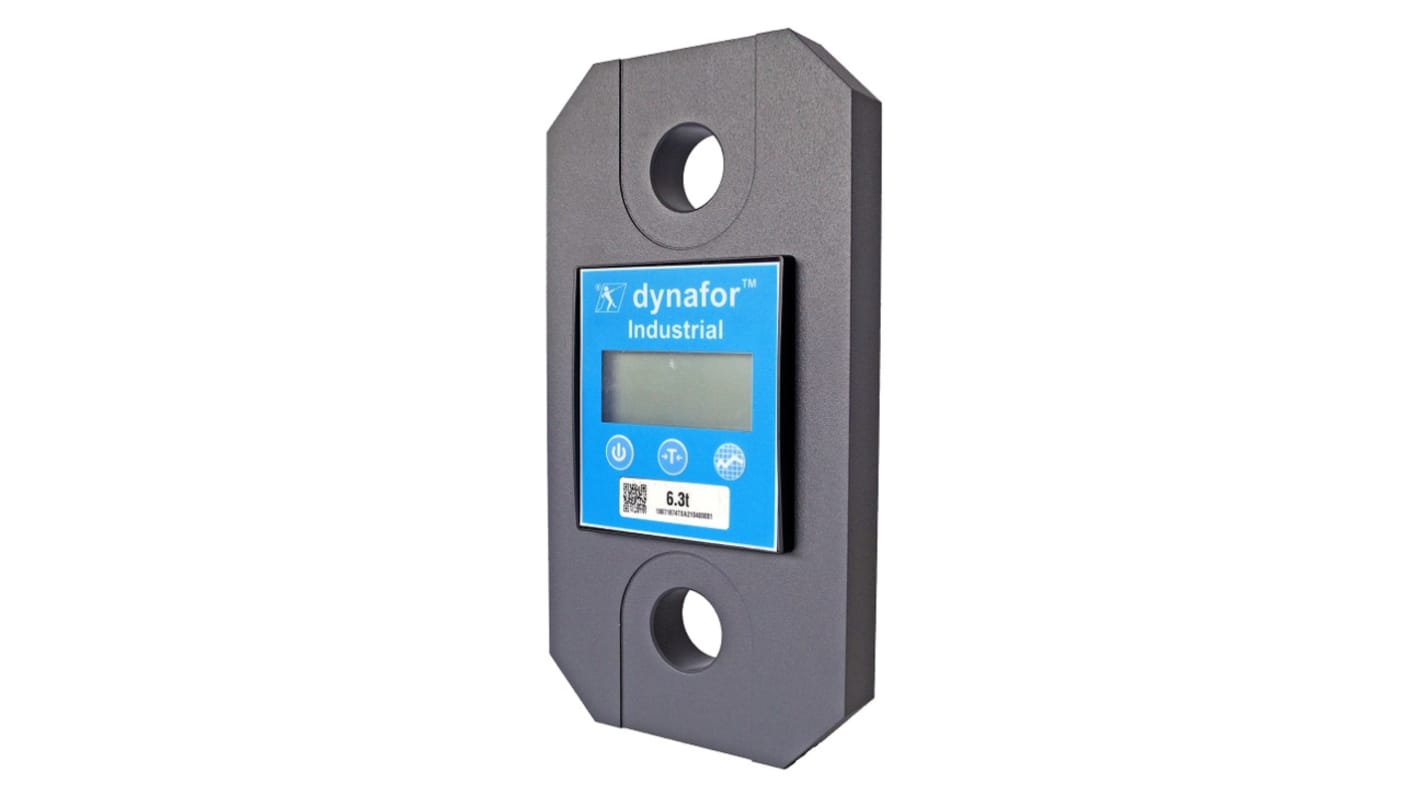

The Dynafor Industrial is designed and manufactured by Tractel®.
The Dynafor Industrial is a versatile and robust digital dynamometer,
used in various weighing and force measurement applications.
Based on the principle of strain gauge extension measurement, the
sensor generates an electrical signal which is processed and analyzed by
a built-in microprocessor, which transmits the information to the
integrated display.
Compatible with standard bow shackles, the Dynafor Industrial ensures
a perfect implementation in your applications.
Delivered with adjustment certificate (5 control points)
Power supply: two 1.5 V AAA batteries (LR3)
Safety coefficient Minimum 4
Supplied with instructions for use and maintenance
Functions tare, units change and peak hold
Integrated LCD display
Digit Height: 18 mm
Protection: IP 65
