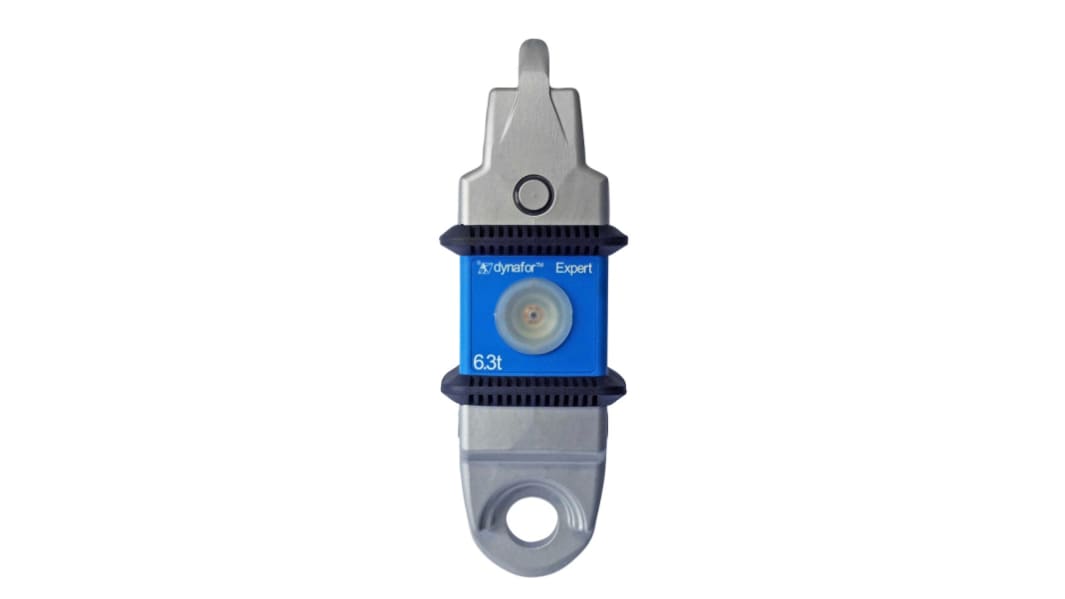

Tractel Dynafor Expert 6,3t Force Gauge 4 Hz, Range: Dynafor Expert
- RS Stock No.:
- 255-3718
- Mfr. Part No.:
- Dynafor Expert 6,3t
- Brand:
- Tractel
Subtotal (1 unit)*
£3,157.50
(exc. VAT)
£3,789.00
(inc. VAT)
Add 1 unit to get free delivery
Temporarily out of stock
- Shipping from 16 March 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £3,157.50 |
*price indicative
- RS Stock No.:
- 255-3718
- Mfr. Part No.:
- Dynafor Expert 6,3t
- Brand:
- Tractel
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Tractel | |
| Product Type | Force Gauge | |
| Accuracy | ±6.3 % | |
| Units Measured | kN, t, lb, Dan, kg | |
| Sampling Rate | 4Hz | |
| Battery Type | AA | |
| Power Source | Battery | |
| Weight | 3.35kg | |
| Width | 100 mm | |
| Length | 290mm | |
| Height | 290mm | |
| Standards/Approvals | UL, CSA, CE, EN 613261 (2013), EN 62479 (2010), IEC/EN 610101 | |
| Series | Dynafor Expert | |
| Maximum Operating Temperature | 50°C | |
| Minimum Operating Temperature | -20°C | |
| Select all | ||
|---|---|---|
Brand Tractel | ||
Product Type Force Gauge | ||
Accuracy ±6.3 % | ||
Units Measured kN, t, lb, Dan, kg | ||
Sampling Rate 4Hz | ||
Battery Type AA | ||
Power Source Battery | ||
Weight 3.35kg | ||
Width 100 mm | ||
Length 290mm | ||
Height 290mm | ||
Standards/Approvals UL, CSA, CE, EN 613261 (2013), EN 62479 (2010), IEC/EN 610101 | ||
Series Dynafor Expert | ||
Maximum Operating Temperature 50°C | ||
Minimum Operating Temperature -20°C | ||
- COO (Country of Origin):
- FR
The Dynafor Expert is designed and manufactured by Tractel®.
The Dynafor Expert is a wireless digital dynamometer, used in high precision applications. With its unique design, it allows to reach extreme precision.
Based on the principle of strain gauge extension measurement, the sensor generates an electrical signal which is processed and analyzed by a built-in microprocessor, which transmits the information to a wireless accessory.
Equipped with radio 2.4 GHz (RF) and Bluetooth (BLE) chipsets available all time, the Dynafor Expert provides a wireless range of :
• 400 m to Tractel® Dynafor HHD, large displays AL63 and software accessories
• 30 m to any smartphone equipped with our free Dynafor app on iOS or Android
Delivered with adjustment certificate (5 control points), ISO certificate on request
Power supply: three AA batteries (LR6)
Safety coefficient Minimum 4
Supplied with instructions for use and maintenance
Functions Tare, Units change, Peak hold and Alarms
Display: Dynafor HHD or smartphone
Protection: IP 65
